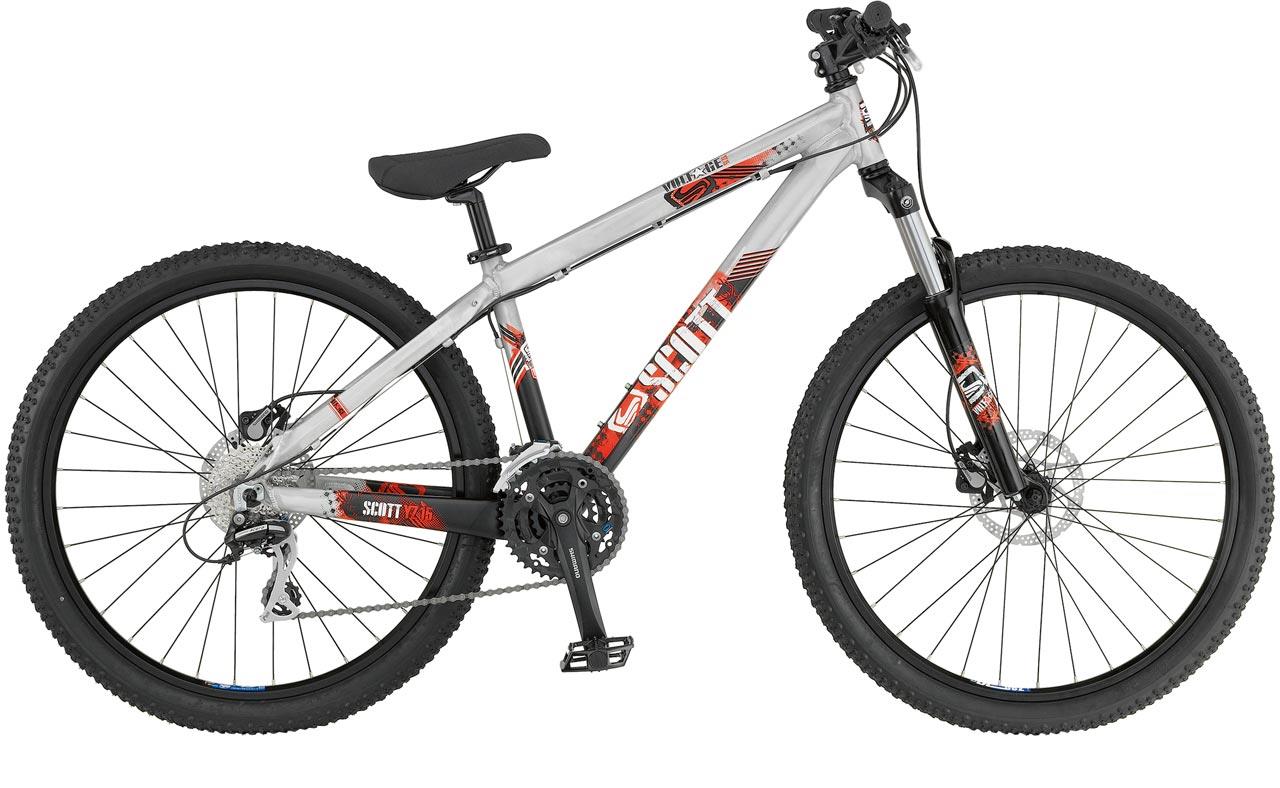

2009 Scott Voltage YZ 15

Mountain bike, front suspension bicycle from the Velopedia specification archive.

Original MSRP
$862.49
Sizes
Xsmall, small, medium, large, xlarge
Colors
Silver/Orange
Weight
32.729999999999997
Archive ID
17329

Frameset

Frame ConstructionTIG-welded
Frame Material6061 Alloy
ForkSuntour XCM, 100mm travel
Fork MaterialSingle
Rear ShockN/A

Drivetrain

Component GroupMountain Mix
ShiftersShimano Acera
Front DerailleurShimano Altus, clamp on 31.8mm
Rear DerailleurShimano Alivio
CranksetShimano FC-M361, 22/32/42 teeth
Bottom BracketShimano BB-UN26, 123mm spindle
BB Shell Width68mm
CassetteShimano HG40
Rear Cogs8-speed, 11 - 30 teeth
ChainShimano HG40
PedalsXerma SP-102

Brakes

BrakesShimano BR-M486 Hydraulic w/160mm rotor brakes, Shimano BR-486 hydraulic levers

Cockpit & Contact Points

Headset1 1/8" threadless Ritchey LB Plus
HandlebarHL MTB 153 steel
Handlebar ExtensionsNot included
StemScott Voltage
SaddleScott Voltage DJ
SeatpostScott SP-214, 26.8mm diameter

Wheels & Tires

HubsFront: Formula CL-51-ACT, Rear: Shimano FH-RM65
RimsAlesa Rigida ZAC 19, 32-hole
Front Tire26 x 2.10" Scott Voltage
Wheel Size26" wheels
