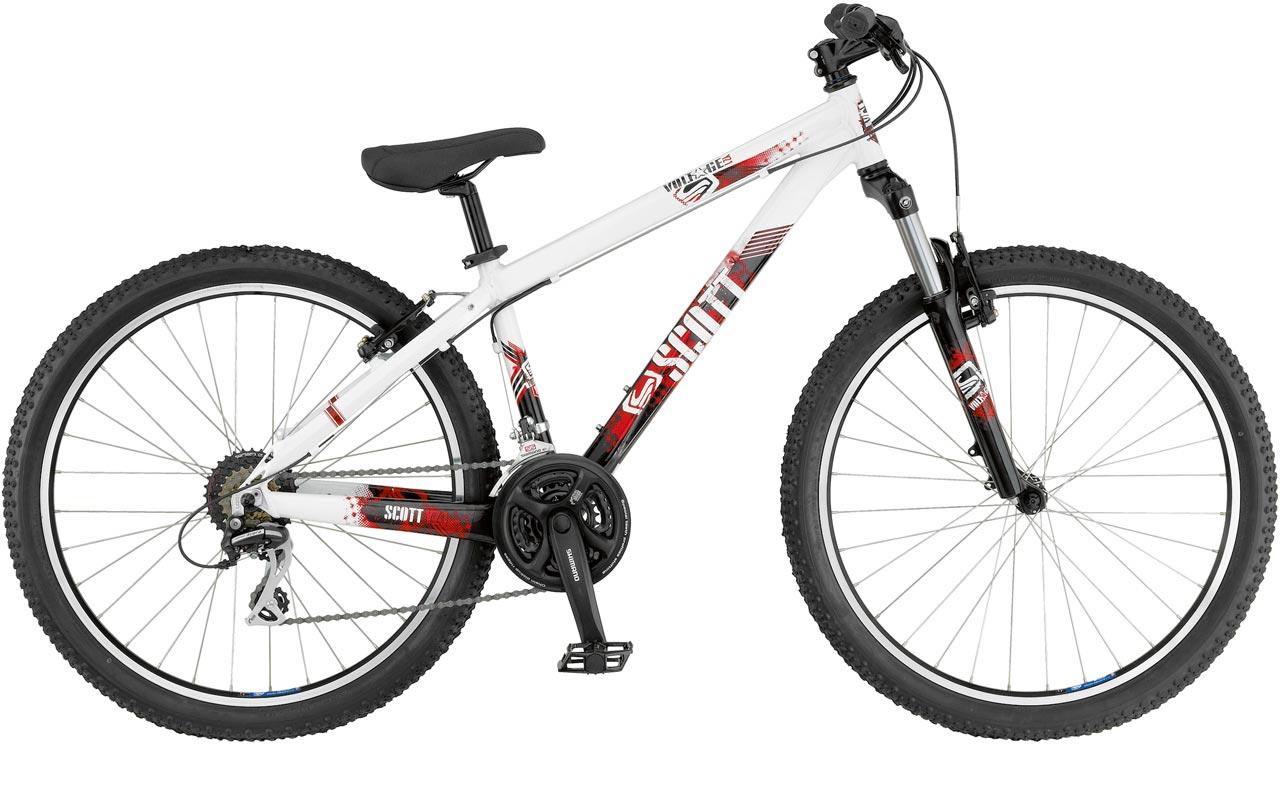

2009 Scott Voltage YZ 1

Mountain bike, front suspension bicycle from the Velopedia specification archive.

Original MSRP
$574.99
Sizes
Xsmall, small, medium, large, xlarge
Colors
White/Red/Black
Weight
32.159999999999997
Archive ID
17337

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame Material6061 Alloy
ForkSuntour XCM, 100mm travel
Fork MaterialSingle
Rear ShockN/A

Drivetrain

Component GroupMountain Mix
ShiftersShimano ST-EF50
Front DerailleurShimano FD-TY10, clamp on 31.8mm
Rear DerailleurShimano Acera
CranksetShimano FC-M191, 22/32/42 teeth
Bottom BracketShimano BB-UN26, 123mm spindle
BB Shell Width68mm
CassetteShimano HG30
Rear Cogs8-speed, 11 - 32 teeth
ChainKMC Z72
PedalsXerma SP-102

Brakes

BrakesTektro SCB linear-pull brakes, Shimano ST-EF50 levers

Cockpit & Contact Points

Headset1 1/8" threadless Ritchey LB Plus
HandlebarHL MTB 153 steel
Handlebar ExtensionsNot included
StemScott Voltage
SaddleScott Voltage DJ
SeatpostScott SP-235, 26.8mm diameter

Wheels & Tires

HubsFront: Formula FM21-FQR, Rear: Formula FH-RM 30
RimsAlesa Rigida ZAC 19, 32-hole
Front Tire26 x 2.10" Scott Voltage
Wheel Size26" wheels

More 2009 Scott Bicycles

View all

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
