Velopedia Bicycle Archive

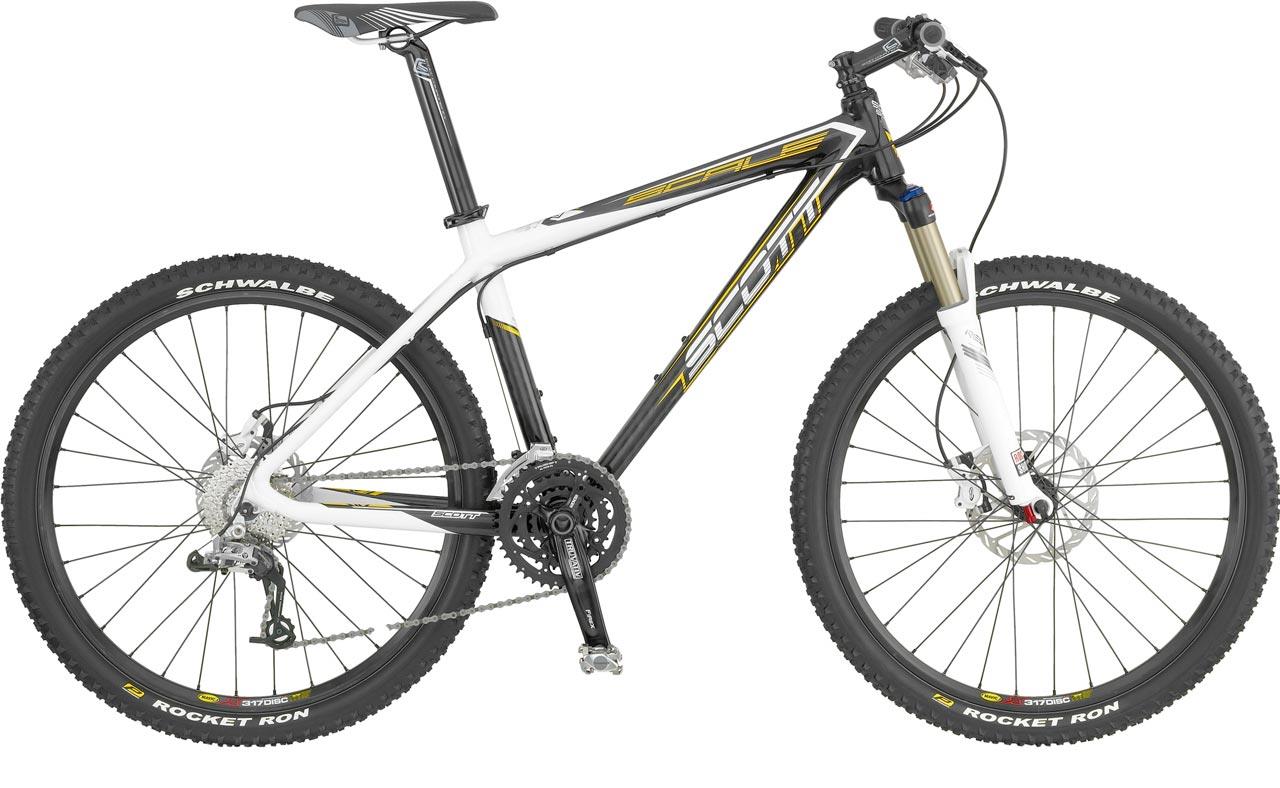

2009 Scott Scale 35
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- Small, medium, large, xlarge
- Colors
- Carbon/White/Yellow
- Weight
- 23.35
- Archive ID
- 17530
Frameset
| Frame Construction | Monocoque |
|---|---|
| Frame Material | Scott CR-1/HMF Net Carbon |
| Fork | RockShox Reba SL, 100mm travel |
| Fork Material | Magnesium/aluminum, single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | SRAM X.9/mix |
|---|---|
| Shifters | SRAM X.9 Trigger |
| Front Derailleur | Shimano SLX |
| Rear Derailleur | SRAM X.9 |
| Crankset | Truvativ Firex 3.3 GXP, 22/32/44 teeth |
| Bottom Bracket | TruVativ GXP |
| BB Shell Width | 73mm |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano HG53-9 |
| Pedals | Shimano PD-M505 |
Brakes
| Brakes | Avid Juicy 3.5 w/185mm rotor front/Avid Juicy 3.5 w/160mm rotor rear brakes, Avid Juicy 3.5 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA No. 9 |
|---|---|
| Handlebar | Scott Hot Rod |
| Handlebar Extensions | Not included |
| Stem | Scott Pro OS |
| Saddle | Scott Racing, crom rails |
| Seatpost | Scott RC 03-60, 34.9mm diameter |
Wheels & Tires
| Hubs | Front: Scott Disc Comp, Rear: Shimano M525 disc |
|---|---|
| Rims | Mavic XM 317, 32-hole |
| Spokes | DT Swiss Champion, 15ga. (1.8mm) |
| Front Tire | 26 x 2.25" Schwalbe Rocket Ron |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
