Lowest1.56:1
Highest4.82:1
Total range309%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×22; rear size isn’t listed.
Velopedia Bicycle Archive

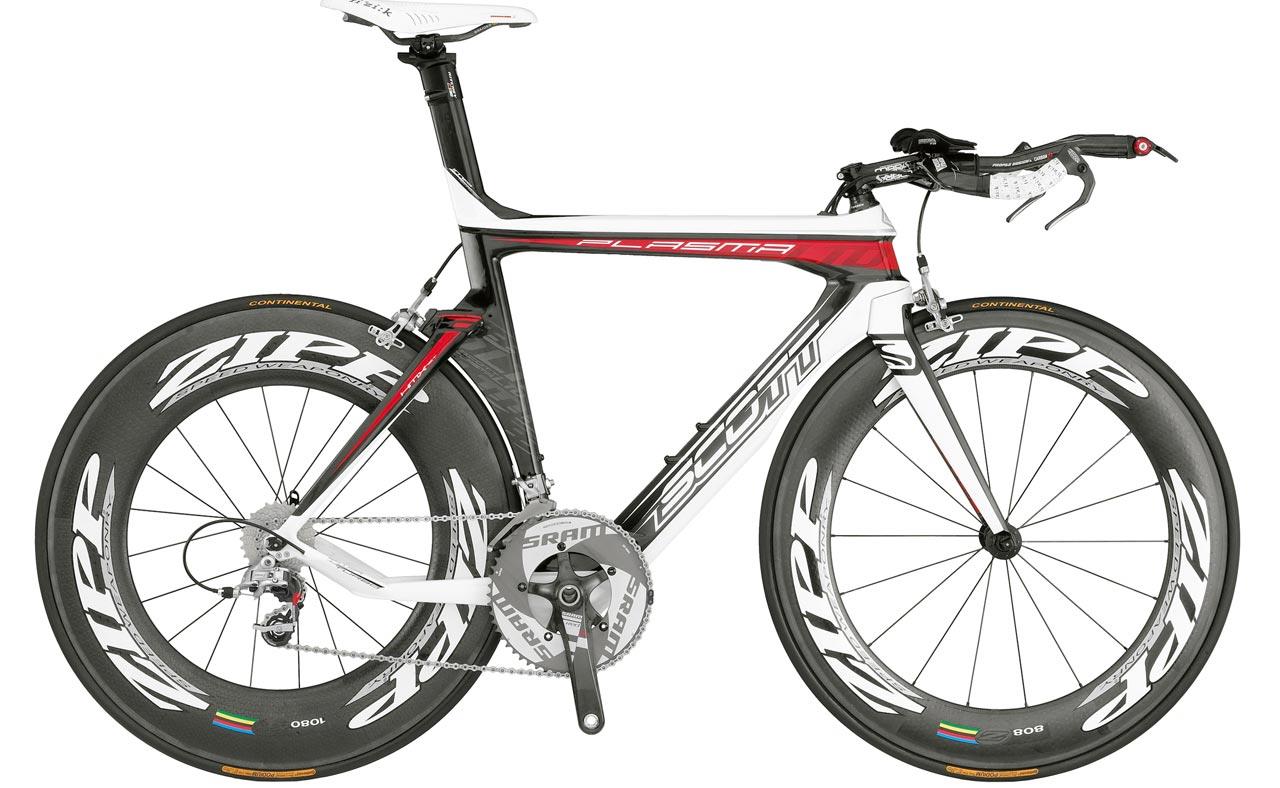

2009 Scott Plasma LTD
Original specifications: SRAM Red drivetrain · 700c wheels · 16.63 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #17302- Model year
- 2009
- Category
- Road
- Sizes
- XXS, XS, S, M, L
- Colors
- Carbon/Red/White
- Weight
- 16.63 lb
- In this record
- 26 specifications · archived image
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Carbon/Red/White
- Frame
- Scott HMX NET carbon fiber
- Original equipment
- SRAM Red
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildScott HMX NET carbon fiber · SRAM Red · 700c wheels
Frameset
| Frame Construction | Monocoque |
|---|---|
| Frame Material | Scott HMX NET carbon fiber |
| Fork | Scott Plasma 2 |
| Fork Material | Carbon, aero crown |
Drivetrain
| Component Group | SRAM Red |
|---|---|
| Shifters | SRAM Carbon TT |
| Front Derailleur | SRAM Red |
| Rear Derailleur | SRAM Red |
| Crankset | SRAM Red Carbon, 39/53 teeth |
| Bottom Bracket | SRAM Red |
| Cassette | SRAM Red |
| Rear Cogs | 10-speed, 11 - 25 teeth |
| Chain | SRAM Red |
| Pedals | Not included |
Brakes
| Brakes | SRAM Red brakes, Profile QSC levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey WCS Carbon integrated |
|---|---|
| Handlebar | Profile CX3 Aero |
| Handlebar Extensions | Profile CX3 Aero |
| Stem | Profile Cobra |
| Saddle | Fi'zi:k Arione Tri 2 carbon |
| Seatpost | Integrated |
Wheels & Tires
| Hubs | DT Swiss |
|---|---|
| Rims | Front: Zipp Carbon 420, Rear: Zipp Carbon 620, 18-hole/20-hole |
| Spokes | DT Swiss Evolution, bladed |
| Front Tire | 700 x 22c Continental Tubolar |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 22c Continental Tubolar
Retailer offers
Continental Sprinter Tubular Tire Black-BW w/Black Chili, 700c x 22mm
700x22c
Replacement option
Continental Tubolar on eBaySponsored links
SRAM Red
SRAM Red
More parts (5)Fewer parts
Fi'zi:k Arione Tri 2 carbon
SRAM Red Carbon
39/53 teeth
SRAM Red
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
SRAM Red
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
1 1/8" Ritchey WCS Carbon integrated
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 22c Continental Tubolar
- Drivetrain
- 10-speed
- Bottom bracket / shell
- SRAM Red
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Monocoque · Fork: Scott Plasma 2 · Carbon, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: SRAM Red · Shifters: SRAM Carbon TT · Front derailleur: SRAM Red · Rear derailleur: SRAM Red · Crankset: SRAM Red Carbon, 39/53 teeth · Bottom bracket: SRAM Red · Cassette: SRAM Red · Rear cogs: 10-speed, 11 - 25 teeth · Chain: SRAM Red
Brakes
Inspect the brakes →Archived: Brakes: SRAM Red brakes, Profile QSC levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Front: Zipp Carbon 420, Rear: Zipp Carbon 620, 18-hole/20-hole · Hubs: DT Swiss · Front tire: 700 x 22c Continental Tubolar
Controls and contact points
Archived: Headset: 1 1/8" Ritchey WCS Carbon integrated · Handlebar: Profile CX3 Aero · Stem: Profile Cobra · Seatpost: Integrated · Saddle: Fi'zi:k Arione Tri 2 carbon · Pedals: Not included
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
