Lowest1.20:1
Highest4.33:1
Total range361%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×25; rear size isn’t listed.
Velopedia Bicycle Archive

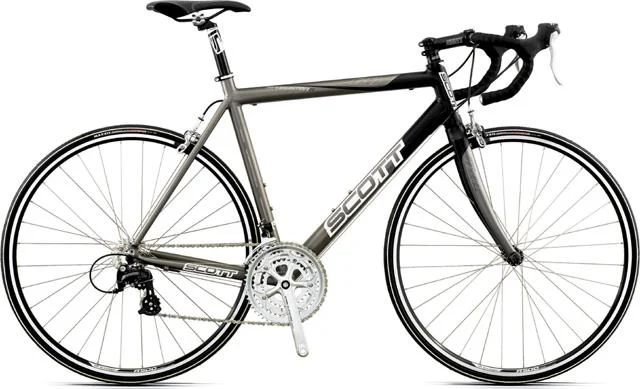

2006 Scott Speedster S60
Original specifications: Road Mix drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #94194- Model year
- 2006
- Category
- Road
- Original MSRP
- $579.99
- In this record
- 23 specifications · archived image · original MSRP
Model history 3 other years
Browse other years
Compare side by side
Identification clues
2006 archived details
- Frame
- 7005 aluminum
- Original equipment
- Road Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum · Road Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum |
| Fork | Scott Alloy |
| Fork Material | Aluminum/steel, unicrown crown |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Shimano Sora STI Dual Control |
| Front Derailleur | Shimano FD-2203 |
| Rear Derailleur | Shimano RD-2200 |
| Crankset | SR Suntour Sport, 30/42/52 teeth |
| Bottom Bracket | Tien Hsin BB-7420ST |
| Rear Cogs | 8-speed, 12 - 25 teeth |
| Chain | KMC HG-50 |
Brakes
| Brakes | Scott Comp SCBR brakes, Unspecified front/included in shifter rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Integrated Steel Cup |
|---|---|
| Handlebar | Scott Road Drop Anatomic |
| Stem | Scott Road Team |
| Saddle | Scott Road |
| Seatpost | Scott Alloy, 31.6mm diameter |
Wheels & Tires
| Hubs | Scott Comp |
|---|---|
| Rims | Alex R-500, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 700 x 25c Maxxis Columbiere M-204 |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC HG-50
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
700 x 25c Maxxis Columbiere M-204
Retailer offers
Vittoria Zaffiro Pro V Clincher Tire Black, 700x25
700x25c
Replacement option
Maxxis Columbiere M 204 on eBaySponsored links
Scott Alloy
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
More parts (4)Fewer parts
Shimano Sora STI Dual Control
Alex R-500
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 25c Maxxis Columbiere M-204
- Drivetrain
- 8-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- Tien Hsin BB-7420ST
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Scott Alloy · Aluminum/steel, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Road Mix · Shifters: Shimano Sora STI Dual Control · Front derailleur: Shimano FD-2203 · Rear derailleur: Shimano RD-2200 · Crankset: SR Suntour Sport, 30/42/52 teeth · Bottom bracket: Tien Hsin BB-7420ST · Rear cogs: 8-speed, 12 - 25 teeth · Chain: KMC HG-50
Brakes
Inspect the brakes →Archived: Brakes: Scott Comp SCBR brakes, Unspecified front/included in shifter rear levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Alex R-500, 32-hole · Hubs: Scott Comp · Front tire: 700 x 25c Maxxis Columbiere M-204
Controls and contact points
Archived: Headset: 1 1/8" integrated Integrated Steel Cup · Handlebar: Scott Road Drop Anatomic · Stem: Scott Road Team · Seatpost: Scott Alloy, 31.6mm diameter · Saddle: Scott Road
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
