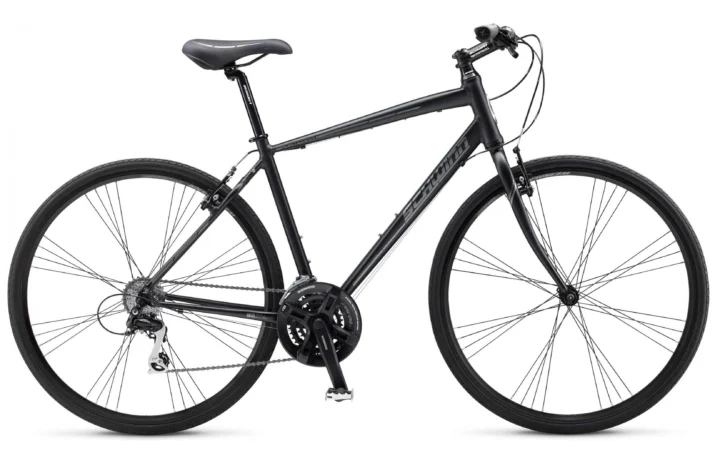

2013 Schwinn Sporterra 3 Mens

Original specifications.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #9202347
Model year
2013
Category
City & Commuter
Sizes
XS, S, M, L, XL
Colors
Black
In this record
18 specifications · archived image
Original buildAluminum

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXL

Published colors

Black

Frameset

Frame MaterialAluminum
ForkSteel

Drivetrain

ShiftersShimano EF51 EZ Fire
Front DerailleurShimano Altus
Rear DerailleurShimano Alivio
CranksetShimano M171 48/38/28t
Bottom BracketSealed Cartridge
CassetteSRAM PG 830 11x28T
Rear Cogs3x8 Speeds
ChainKMC Z72
Pedalsnylon platform

Brakes

BrakesLinear Pull

Cockpit & Contact Points

Headset1 1/8" Threadless
HandlebarSchwinn S2 Sport
StemSchwinn S2 Sport
SaddleSchwinn S1 Sport Ergo
SeatpostSchwinn S2 Sport

Wheels & Tires

Front TireKenda K193 700x32c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes48/38/28T · 11–28T
Lowest1.00:1 Highest4.36:1 Total range436%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z72
Front tire · Original
Kenda K193 700x32c
Cassette · Original
SRAM PG 830 11x28t
More parts (4)Fewer parts
Brake pads · Original
Linear Pull
Crankset · Original
Shimano M171 48/38/28t
Front derailleur · Original
Shimano Altus
Rear derailleur · Original
Shimano Alivio

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Kenda K193 700x32c
Bottom bracket / shell
Sealed Cartridge
Equipment inspection checks 8 checks based on 4 archived component groups Open equipment checksClose equipment checks
0 of 8 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Aluminum · Fork: Steel

Archived: Shifters: Shimano EF51 EZ Fire · Front derailleur: Shimano Altus · Rear derailleur: Shimano Alivio · Crankset: Shimano M171 48/38/28t · Bottom bracket: Sealed Cartridge · Cassette: SRAM PG 830 11x28t · Rear cogs: 3x8 Speeds · Chain: KMC Z72

Archived: Brakes: Linear Pull

Controls and contact points

Archived: Headset: 1 1/8" Threadless · Handlebar: Schwinn S2 Sport · Stem: Schwinn S2 Sport · Seatpost: Schwinn S2 Sport · Saddle: Schwinn S1 Sport Ergo · Pedals: nylon platform
