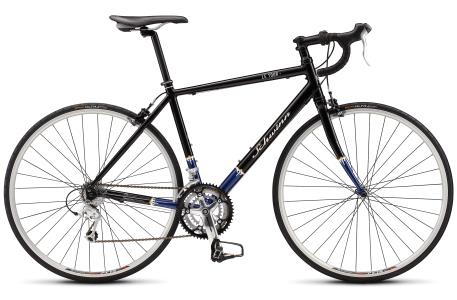

2011 Schwinn Le Tour Legacy

Original specifications: Road Mix drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #24391
Model year
2011
Category
Road
Original MSRP
$1,179.00
Sizes
XL
Colors
Red/charcoal, Blue/Black
In this record
23 specifications · archived image · original MSRP
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
Red/charcoal, Blue/Black
Frame
Schwinn N'Litened Aluminum
Original equipment
Road Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildSchwinn N'Litened Aluminum · Road Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

2 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

XL

Published colors

Red/CharcoalBlue/Black
View 2 archived size/color combinations
SizeColor
XLRed/Charcoal
XLBlue/Black

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionAluminum
Frame MaterialSchwinn N'Litened Aluminum
ForkRigid Frame

Drivetrain

Component GroupRoad Mix
ShiftersShimano 2300 STI
Front DerailleurShimano 2300
Rear DerailleurShimano Sora
CranksetFSA Tempo Triple, 52/42/30t teeth
Bottom BracketFSA cartridge sq. JIS taper
ChainKMC HG-50
PedalsNylon w/ clip and strap

Brakes

BrakesTektro R316 alloy brakes, Shimano 2300 STI levers

Cockpit & Contact Points

Headset1 1/8" FSA integrated
HandlebarRoad Tuned 6000 series alloy ergonomic drop bar
Handlebar ExtensionsNot included
StemRoad Tuned
SaddleSchwinn Bio Tuned
SeatpostAlloy Micro Adjust, 27.2mm diameter

Wheels & Tires

HubsKT alloy
RimsAlex PC19, 32-hole
SpokesStainless, 14ga. (2.0mm)
Front Tire700 x 25c Continental Ultra Sport
Wheel Size700c wheels

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 25c Continental Ultra Sport
Chain · Original
KMC HG-50
More parts (4)Fewer parts
Brake pads · Original
Tektro R316 alloy brakes

Shimano 2300 STI levers

Bottom bracket · Original
FSA cartridge sq. JIS taper
Crankset · Original
FSA Tempo Triple

52/42/30t teeth

Rims · Original
Alex PC19

32-hole

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 25c Continental Ultra Sport
Drivetrain
Road Mix
Seatpost diameter
27.2 mm
Bottom bracket / shell
FSA cartridge sq. JIS taper
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Aluminum · Fork: Rigid Frame

Archived: Group: Road Mix · Shifters: Shimano 2300 STI · Front derailleur: Shimano 2300 · Rear derailleur: Shimano Sora · Crankset: FSA Tempo Triple, 52/42/30t teeth · Bottom bracket: FSA cartridge sq. JIS taper · Chain: KMC HG-50

Archived: Brakes: Tektro R316 alloy brakes, Shimano 2300 STI levers

Archived: Wheel size: 700c wheels · Rims: Alex PC19, 32-hole · Hubs: KT alloy · Front tire: 700 x 25c Continental Ultra Sport

Controls and contact points

Archived: Headset: 1 1/8" FSA integrated · Handlebar: Road Tuned 6000 series alloy ergonomic drop bar · Stem: Road Tuned · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Schwinn Bio Tuned · Pedals: Nylon w/ clip and strap
