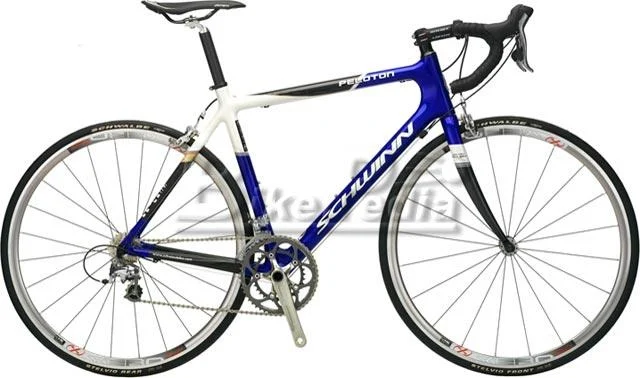

2008 Schwinn Peloton

Original specifications: Shimano 105 drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #13278
Model year
2008
Category
Road
Original MSRP
$1,699.99
Sizes
S, M, L, XL
Colors
Blue/White
In this record
26 specifications · archived image · original MSRP
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2008 archived details

Published colors
Blue/White
Frame
Carbon
Original equipment
Shimano 105

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildCarbon · Shimano 105 · 700c wheels

Historical catalog variants

Archived sizes and colors

4 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

SMLXL

Published colors

Blue/White
View 4 archived size/color combinations
SizeColor
SBlue/White
MBlue/White
LBlue/White
XLBlue/White

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionCarbon
Frame MaterialCarbon
ForkSchwinn Black Label Mono
Fork MaterialCarbon

Drivetrain

Component GroupShimano 105
ShiftersShimano 105 STI
Front DerailleurShimano 105
Rear DerailleurShimano 105 SS
CranksetTruVativ Elita SL, 50/34t teeth
Bottom BracketTruVativ Giga X Pipe
CassetteShimano 105
Rear Cogs10-speed, 11 - 23 teeth
ChainKMC X10

Brakes

BrakesTektro RX-40 dual pivot front/Tektro RX-40s single pivot rear brakes, Shimano 105 STI levers

Cockpit & Contact Points

HeadsetRitchey Logic Pro
HandlebarRitchey Comp 31.8
Handlebar ExtensionsNot included
StemRitchey logic Comp 31.8
SaddleSelle San Marco Ponza
SeatpostKalloy Carbon, 31.6mm diameter

Wheels & Tires

HubsFormula Shawla 280
RimsFormula Shawla 280
SpokesFormula Shawla 280, Formula Shawla 280
Spoke NipplesFormula Shawla 280
Front Tire700 x 23c Schwalbe Blizzard
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes50/34T · 11–23T · 10-speed
Lowest1.48:1 Highest4.55:1 Total range307%
Estimated speed At 90 RPM Lowest gear10.4 mph Highest gear32.0 mph

Uses front tire 700C×23; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 23c Schwalbe Blizzard
Chain · Original
KMC X10
More parts (8)Fewer parts
Front derailleur · Original
Shimano 105
Rear derailleur · Original
Shimano 105 SS
Shifters · Original
Shimano 105 STI
Handlebar · Original
Ritchey Comp 31.8
Stem · Original
Ritchey logic Comp 31.8
Headset · Original
Ritchey Logic Pro
Rims · Original
Formula Shawla 280
Hubs · Original
Formula Shawla 280

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 23c Schwalbe Blizzard
Drivetrain
10-speed
Seatpost diameter
31.6 mm
Bottom bracket / shell
TruVativ Giga X Pipe
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Carbon · Fork: Schwinn Black Label Mono · Carbon

Archived: Group: Shimano 105 · Shifters: Shimano 105 STI · Front derailleur: Shimano 105 · Rear derailleur: Shimano 105 SS · Crankset: TruVativ Elita SL, 50/34t teeth · Bottom bracket: TruVativ Giga X Pipe · Cassette: Shimano 105 · Rear cogs: 10-speed, 11 - 23 teeth · Chain: KMC X10

Archived: Brakes: Tektro RX-40 dual pivot front/Tektro RX-40s single pivot rear brakes, Shimano 105 STI levers

Archived: Wheel size: 700c wheels · Rims: Formula Shawla 280 · Hubs: Formula Shawla 280 · Front tire: 700 x 23c Schwalbe Blizzard

Controls and contact points

Archived: Headset: Ritchey Logic Pro · Handlebar: Ritchey Comp 31.8 · Stem: Ritchey logic Comp 31.8 · Seatpost: Kalloy Carbon, 31.6mm diameter · Saddle: Selle San Marco Ponza
