Velopedia Bicycle Archive

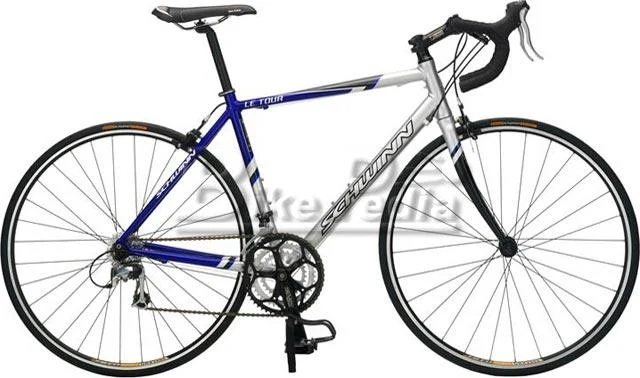

2008 Schwinn LeTour

Original specifications: Shimano Sora · 8-speed · mechanical rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #13365
Model year
2008
Category
Road
Original MSRP
$629.99
Sizes
S, M, L, XL
Colors
Mercury Silver/Mettalic Blue
In this record
27 specifications · archived image · original MSRP
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2008 archived details

Published colors
Mercury Silver/Mettalic Blue
Frame
Aluminum
Original equipment
Road Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum · Road Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

4 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

SMLXL

Published colors

Mercury Silver/Mettalic Blue
View 4 archived size/color combinations
SizeColor
SMercury Silver/Mettalic Blue
MMercury Silver/Mettalic Blue
LMercury Silver/Mettalic Blue
XLMercury Silver/Mettalic Blue

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialAluminum
ForkSchwinn N'lightened
Fork MaterialAluminum

Drivetrain

Component GroupRoad Mix
ShiftersShimano Sora
Front DerailleurShimano FD-2203
Rear DerailleurShimano Sora
CranksetTruVativ ISO Flo, 52-42-30 teeth
Bottom BracketTruvativ sealed cartridge
CassetteSRAM PG-850
Rear Cogs8-speed, 12 - 26 teeth
ChainKMC HG-50
PedalsFPD with toe clips

Brakes

BrakesTektro R-510A brakes, Shimano Sora STI levers

Cockpit & Contact Points

HeadsetFSA Integrated
HandlebarSchwinn Road Tuned
Handlebar ExtensionsNot included
StemSchwinn Road Tuned
SaddleSelle San Marco Iscia
SeatpostSchwinn Road Tuned, 27.2mm diameter

Wheels & Tires

HubsFormula QR
RimsJalco DRX2000, 32-hole
SpokesStainless steel, 14ga. (2.0mm)
Spoke NipplesCP Brass
Front Tire700 x 28c Continental Ultra Sport
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes52/42/30T · 12–26T · 8-speed
Lowest1.15:1 Highest4.33:1 Total range376%
Estimated speed At 90 RPM Lowest gear8.3 mph Highest gear31.0 mph

Uses front tire 700C×28; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 28c Continental Ultra Sport
More parts (5)Fewer parts
Cassette · Original
SRAM PG-850
Front derailleur · Original
Shimano FD-2203
Rear derailleur · Original
Shimano Sora
Shifters · Original
Shimano Sora
Hubs · Original
Formula QR

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 28c Continental Ultra Sport
Drivetrain
8-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Truvativ sealed cartridge
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Schwinn N'lightened · Aluminum

Archived: Group: Road Mix · Shifters: Shimano Sora · Front derailleur: Shimano FD-2203 · Rear derailleur: Shimano Sora · Crankset: TruVativ ISO Flo, 52-42-30 teeth · Bottom bracket: Truvativ sealed cartridge · Cassette: SRAM PG-850 · Rear cogs: 8-speed, 12 - 26 teeth · Chain: KMC HG-50

Archived: Brakes: Tektro R-510A brakes, Shimano Sora STI levers

Archived: Wheel size: 700c wheels · Rims: Jalco DRX2000, 32-hole · Hubs: Formula QR · Front tire: 700 x 28c Continental Ultra Sport

Controls and contact points

Archived: Headset: FSA Integrated · Handlebar: Schwinn Road Tuned · Stem: Schwinn Road Tuned · Seatpost: Schwinn Road Tuned, 27.2mm diameter · Saddle: Selle San Marco Iscia · Pedals: FPD with toe clips
