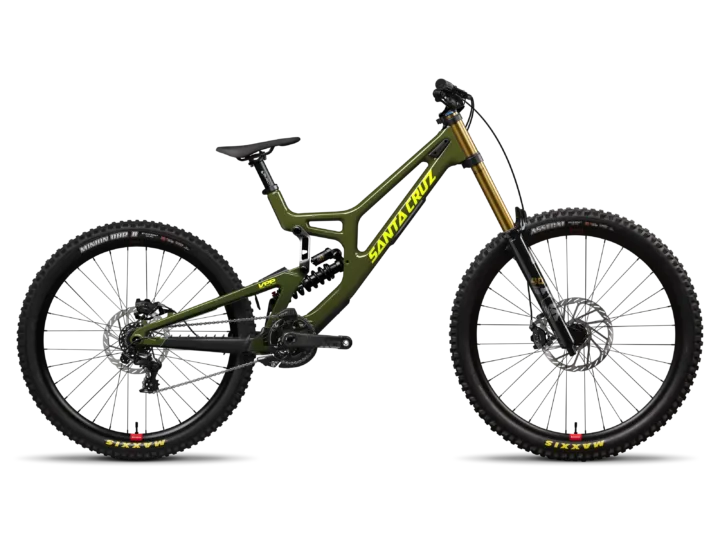

2027 Santa Cruz V10 DH X01
Mountain bicycle from the Velopedia specification archive.
- Original MSRP
- $8,899.00
- Sizes
- S, M, L, XL
- Colors
- Gloss Liquid Blue, Gloss Kelp Green
- Weight
- 37.10 lbs / 16.83 kg
- Geometry
- 4 manufacturer sizes · Ride analysis
- Archive ID
- 900000208
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
Suspension at both ends means fork and shock setup should be considered together; mismatched sag or rebound can leave the front and rear reacting very differently. The mixed-wheel layout uses different front and rear diameters, so tires, tubes, rims and spare wheels are not interchangeable end to end. The 7-speed drivetrain is straightforward, but replacement shifters, derailleurs, chains and cassettes still need the same indexing standard.
Suspension setup
Front + rear
Fork and shock pressure, sag and rebound should be balanced and recorded independently.
Wheel system
Mixed 29 / 27.5
Front and rear tires, tubes, rims and spare wheels use different diameters.
Drivetrain
7-speed system
A 7-speed label alone does not guarantee compatibility; the control and drivetrain parts still have to match.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 7-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Santa Cruz V10 DH X01 · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon CC MX 208mm Travel VPP · Fork: FOX 40 Float Factory, Grip X2, 203mm
Suspension
Evaluate the suspension →Archived: Fork: FOX 40 Float Factory, Grip X2, 203mm · Rear shock: Fox DHX2 Factory S: 450lb, M: 500lb, L: 550lb, XL: 600lb
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM X01 DH · Rear derailleur: SRAM X01 DH, 7spd · Crankset: SRAM X01 DH, DUB 83, 36t All Sizes: 165mm · Bottom bracket: SRAM DUB 83mm Threaded BB · Cassette: SRAM X01 DH, 7spd · Chain: SRAM PC1170, 11spd
Brakes
Inspect the brakes →Archived: Brakes: SRAM Maven Silver
Wheels and tires
Check wheels and tires →Archived: Wheel size: MX/29" · Rims: (F) Reserve 30|HD AL 6069 / (R) Reserve 30|HD AL 6069 · Hubs: (F) Industry Nine 1/1, 20x110 Boost, 32h -or- DT Swiss 350, 20x110 Boost, 32h / (R) Industry Nine 1/1, 12x157, XD, 32h -or- DT Swiss 350, DEG DF, 12x157, XD, 32h · Front tire: Maxxis Assegai 29"x2.5", 3C MaxxGrip, DH · Rear tire: Maxxis Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH
Controls and contact points
Archived: Headset: Cane Creek 50 IS41 Headset 1-1/8" · Handlebar: OneUp Aluminum Bar, 35mm (Size S: Burgtec RW Alloy DH Bar, 31.8) S: 800mm, 15mm Rise, M/L/XL: 800mm, 35mm Rise · Stem: OneUp Direct Mount Stem · Seatpost: Burgtec Aluminum Post, 31.6 All Sizes: 300mm · Saddle: Fizik Alpaca Gravita X5 Saddle
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Carbon CC MX 208mm Travel VPP |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | FOX 40 Float Factory, Grip X2, 203mm |
| Rear Shock | Fox DHX2 Factory S: 450lb, M: 500lb, L: 550lb, XL: 600lb |
Drivetrain
| Shifters | SRAM X01 DH |
|---|---|

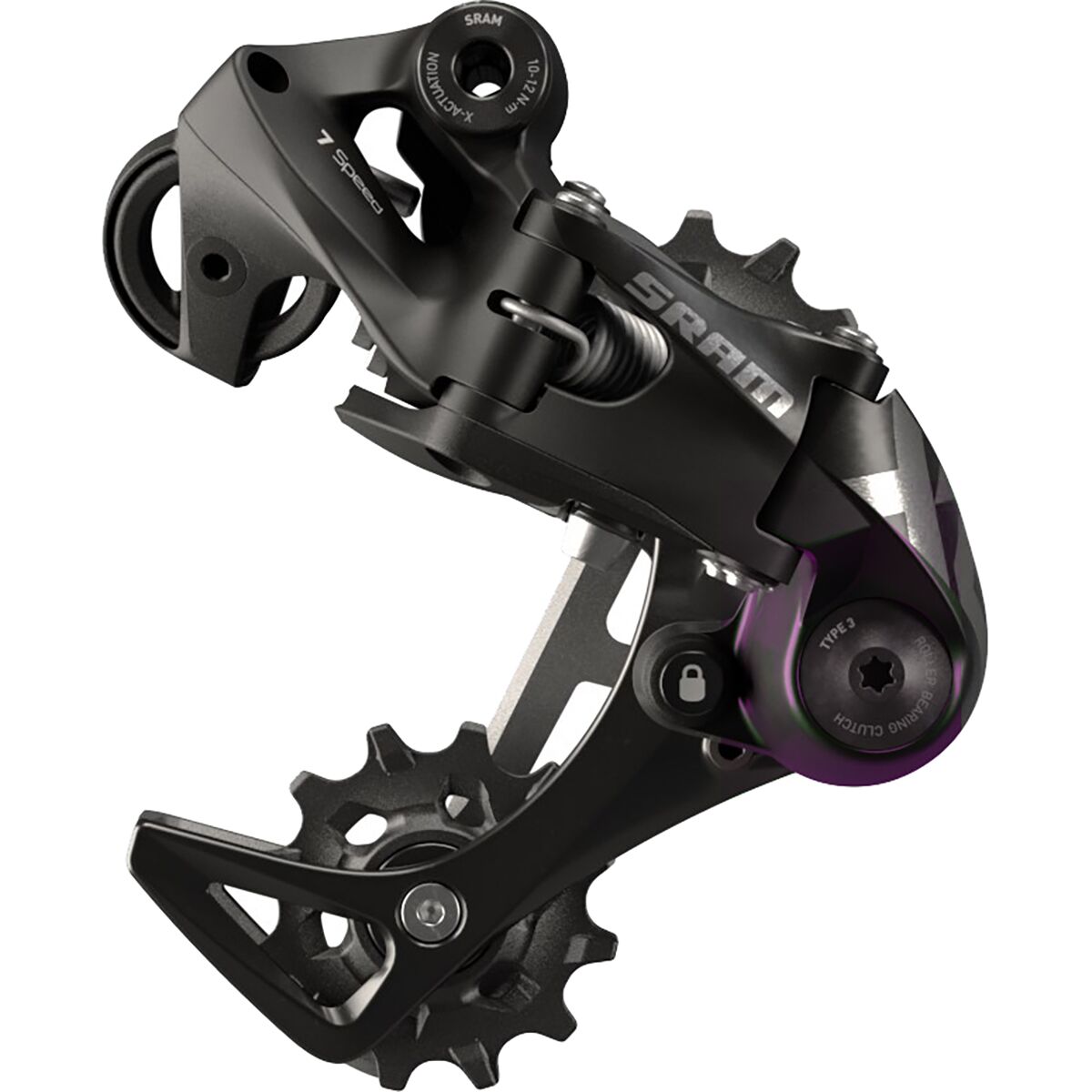

| Rear Derailleur | SRAM X01 DH, 7spd |
| Crankset | SRAM X01 DH, DUB 83, 36t All Sizes: 165mm |
| Bottom Bracket | SRAM DUB 83mm Threaded BB |
| BB Shell Width | 83 mm |
| Cassette | SRAM X01 DH, 7spd |
| Chain | SRAM PC1170, 11spd |
Brakes
| Brakes | SRAM Maven Silver |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 50 IS41 Headset 1-1/8" |
|---|---|
| Handlebar | OneUp Aluminum Bar, 35mm (Size S: Burgtec RW Alloy DH Bar, 31.8) S: 800mm, 15mm Rise, M/L/XL: 800mm, 35mm Rise |
| Stem | OneUp Direct Mount Stem |
| Saddle | Fizik Alpaca Gravita X5 Saddle |
| Seatpost | Burgtec Aluminum Post, 31.6 All Sizes: 300mm |
Wheels & Tires
| Hubs | (F) Industry Nine 1/1, 20x110 Boost, 32h -or- DT Swiss 350, 20x110 Boost, 32h / (R) Industry Nine 1/1, 12x157, XD, 32h -or- DT Swiss 350, DEG DF, 12x157, XD, 32h |
|---|---|
| Rims | (F) Reserve 30|HD AL 6069 / (R) Reserve 30|HD AL 6069 |
| Front Tire | Maxxis Assegai 29"x2.5", 3C MaxxGrip, DH |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH |
| Wheel Size | MX/29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL(29) |
|---|---|---|---|---|
| Seat tube | 435 mm | 445 mm | 455 mm | 465 mm |
| Head tube | 100 mm | 110 mm | 115 mm | 120 mm |
| Head-tube angle | 63° | 63° | 63° | 63° |
| Seat-tube angle | 77.9° | 77.4° | 77.3° | 77° |
| Chainstay / rear center | 440-445-450 | 445-450-455 | 450-455-460 | 455-460-465 |
| Wheelbase | 1230 mm | 1275 mm | 1302 mm | 1334 mm |
| Bottom-bracket drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Bottom-bracket height | 356 mm | 356 mm | 356 mm | 356 mm |
| Reach | 412-420-428 | 447-455-463 | 467-475-483 | 492-500-508 |
| Stack | 624 mm | 633 mm | 637 mm | 642 mm |
| Standover height | 729 mm | 730 mm | 731 mm | 731 mm |
| Front center | 785 mm | 825 mm | 847 mm | 874 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
The archived table contains multiple manufacturer geometry states. Velopedia preserves source order and analyzes each state separately rather than averaging the published values.
S geometry
Configuration
Riding position
The 624 mm stack is tall relative to the 412 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.9° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1230 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Configuration 2, this configuration shortens reach by 8 mm and shortens the rear center by 5 mm.
Archive context
The head angle of 63° sits toward the slacker end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end. Its reach of 412 mm sits toward the shorter end.
Riding position
The 624 mm stack is tall relative to the 420 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.9° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1230 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Configuration 1, this configuration extends reach by 8 mm and lengthens the rear center by 5 mm.
Archive context
The chainstay of 445 mm sits toward the longer rear-center end. The head angle of 63° sits toward the slacker end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end.
Riding position
The 624 mm stack is tall relative to the 428 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.9° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1230 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 450 mm rear center is relatively long, tending to keep the rider more centered between the wheels and the rear of the bike planted under load.
Configuration changes
Compared with Configuration 1, this configuration extends reach by 16 mm and lengthens the rear center by 10 mm.
Archive context
The chainstay of 450 mm sits toward the longer rear-center end. The head angle of 63° sits toward the slacker end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end.
M geometry
Configuration
Riding position
The 633 mm stack is tall relative to the 447 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.4° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1275 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Configuration 2, this configuration shortens reach by 8 mm and shortens the rear center by 5 mm.
Archive context
Its wheelbase of 1275 mm sits toward the longer end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end. The chainstay of 445 mm sits toward the longer rear-center end.
Riding position
The 633 mm stack is tall relative to the 455 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.4° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1275 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 450 mm rear center is relatively long, tending to keep the rider more centered between the wheels and the rear of the bike planted under load.
Configuration changes
Compared with Configuration 1, this configuration extends reach by 8 mm and lengthens the rear center by 5 mm.
Archive context
Its wheelbase of 1275 mm sits toward the longer end. The chainstay of 450 mm sits toward the longer rear-center end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end.
Riding position
A 463 mm reach paired with 633 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.4° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1275 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 455 mm rear center is relatively long, tending to keep the rider more centered between the wheels and the rear of the bike planted under load.
Configuration changes
Compared with Configuration 1, this configuration extends reach by 16 mm and lengthens the rear center by 10 mm.
Archive context
The chainstay of 455 mm sits toward the longer rear-center end. Its wheelbase of 1275 mm sits toward the longer end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end.
L geometry
Configuration
Riding position
A 467 mm reach paired with 637 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.3° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1302 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 450 mm rear center is relatively long, tending to keep the rider more centered between the wheels and the rear of the bike planted under load.
Configuration changes
Compared with Configuration 2, this configuration shortens reach by 8 mm and shortens the rear center by 5 mm.
Archive context
Its wheelbase of 1302 mm sits toward the longer end. The chainstay of 450 mm sits toward the longer rear-center end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end.
Riding position
A 475 mm reach paired with 637 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.3° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1302 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 455 mm rear center is relatively long, tending to keep the rider more centered between the wheels and the rear of the bike planted under load.
Configuration changes
Compared with Configuration 1, this configuration extends reach by 8 mm and lengthens the rear center by 5 mm.
Archive context
The chainstay of 455 mm sits toward the longer rear-center end. Its wheelbase of 1302 mm sits toward the longer end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end.
Riding position
A 483 mm reach paired with 637 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.3° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1302 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 460 mm rear center is relatively long, tending to keep the rider more centered between the wheels and the rear of the bike planted under load.
Configuration changes
Compared with Configuration 1, this configuration extends reach by 16 mm and lengthens the rear center by 10 mm.
Archive context
The chainstay of 460 mm sits toward the longer rear-center end. Its wheelbase of 1302 mm sits toward the longer end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end.
XL(29) geometry
Configuration
Riding position
A 492 mm reach paired with 642 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1334 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 455 mm rear center is relatively long, tending to keep the rider more centered between the wheels and the rear of the bike planted under load.
Configuration changes
Compared with Configuration 2, this configuration shortens reach by 8 mm and shortens the rear center by 5 mm.
Archive context
The chainstay of 455 mm sits toward the longer rear-center end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end. Its wheelbase of 1334 mm sits toward the longer end.
Riding position
With 500 mm of reach and 642 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1334 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 460 mm rear center is relatively long, tending to keep the rider more centered between the wheels and the rear of the bike planted under load.
Configuration changes
Compared with Configuration 1, this configuration extends reach by 8 mm and lengthens the rear center by 5 mm.
Archive context
The chainstay of 460 mm sits toward the longer rear-center end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end. Its wheelbase of 1334 mm sits toward the longer end.
Riding position
With 508 mm of reach and 642 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63° head angle combined with a 1334 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 465 mm rear center is relatively long, tending to keep the rider more centered between the wheels and the rear of the bike planted under load.
Configuration changes
Compared with Configuration 1, this configuration extends reach by 16 mm and lengthens the rear center by 10 mm.
Archive context
The chainstay of 465 mm sits toward the longer rear-center end. Its bottom-bracket drop of 17 mm sits toward the shallower-drop end. Its wheelbase of 1334 mm sits toward the longer end.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
