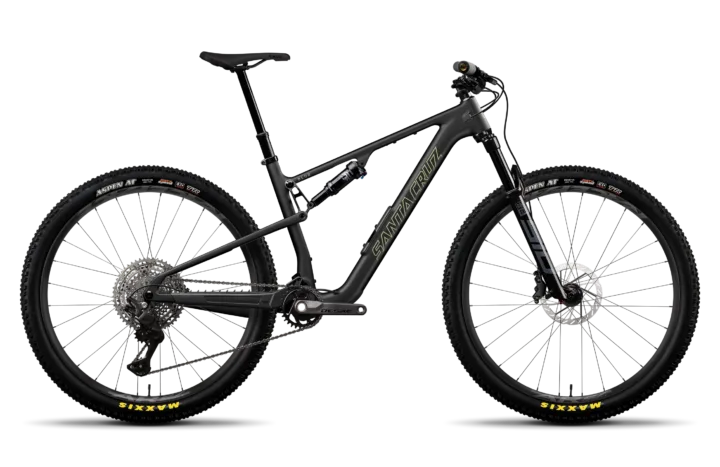

2027 Santa Cruz Blur Deore
Mountain bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
- Original MSRP
- $4,899.00
- Sizes
- S, M, L, XL
- Colors
- Gloss Tart Cherry, Matte Charcoal
- Weight
- 29.12lbs / 13.21kg
- Geometry
- 4 manufacturer sizes · Ride analysis
- Archive ID
- 900000334
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The fork and rear shock need to be set up as a pair. If their sag or rebound settings are far apart, the front and rear of the bike can react very differently. The 510% cassette range describes the available gearing more clearly than the component-group name alone. Carbon construction changes the inspection emphasis from metal-style dents and corrosion to impact damage, ripples and overtightened clamp areas.
Suspension setup
Front + rear
Fork and shock pressure, sag and rebound should be balanced and recorded independently.
Gearing
510% cassette range
Calculated from the published 10–51-tooth sprocket span.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Wheel standard
29 in · 622 mm
Rim width and frame or fork clearance remain important beyond nominal diameter.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Santa Cruz Blur Deore · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon CC 29" 120mm Travel Superlight™ · Fork: RockShox Sid Base, 3-Position, 120mm, w/ Lever
Suspension
Evaluate the suspension →Archived: Fork: RockShox Sid Base, 3-Position, 120mm, w/ Lever · Rear shock: FOX Rhythm, 190x45
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore M6200, 12spd w/ Wolf Tooth Shiftmount Adapter for MM · Rear derailleur: Shimano Deore M7200, 12spd · Crankset: Shimano Deore M6200, 32t S: 165mm; M-XL: 170mm · Bottom bracket: Shimano MT501 68/73mm Threaded · Cassette: Shimano Deore M6200, 10-51t · Chain: Shimano Deore M6100, 12spd
Brakes
Inspect the brakes →Archived: Brakes: SRAM DB8
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" · Rims: (F) RaceFace AR Offset 27 29 / (R) RaceFace AR Offset 27 29 · Hubs: (F) Shimano TC500, 15x110, Centerlock, 32h / (R) Shimano TC600, 12x148, MicroSpline, Centerlock, 32h · Front tire: Maxxis Aspen AT 29x2.4 MaxxSpeed EXO · Rear tire: Maxxis Aspen AT 29x2.4 MaxxSpeed EXO
Controls and contact points
Archived: Headset: FSA IS-2/47/42 ACB · Handlebar: RaceFace Ride, 35mm, 10mm Rise All Sizes: 760mm · Stem: RaceFace Ride All Sizes: 50mm · Seatpost: SDG Tellis Dropper, 31.6 S: 125mm, M: 150mm; L: 170mm; XL: 200mm · Saddle: SDG Bel-Air V3 Steel
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Carbon CC 29" 120mm Travel Superlight™ |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Sid Base, 3-Position, 120mm, w/ Lever |
| Rear Shock | FOX Rhythm, 190x45 |
Drivetrain
| Shifters | Shimano Deore M6200, 12spd w/ Wolf Tooth Shiftmount Adapter for MM |
|---|---|
| Rear Derailleur | Shimano Deore M7200, 12spd |
| Crankset | Shimano Deore M6200, 32t S: 165mm; M-XL: 170mm |
| Bottom Bracket | Shimano MT501 68/73mm Threaded |
| Cassette | Shimano Deore M6200, 10-51t |
| Chain | Shimano Deore M6100, 12spd |
Brakes
| Brakes | SRAM DB8 |
|---|
Cockpit & Contact Points
| Headset | FSA IS-2/47/42 ACB |
|---|---|
| Handlebar | RaceFace Ride, 35mm, 10mm Rise All Sizes: 760mm |
| Stem | RaceFace Ride All Sizes: 50mm |
| Saddle | SDG Bel-Air V3 Steel |
| Seatpost | SDG Tellis Dropper, 31.6 S: 125mm, M: 150mm; L: 170mm; XL: 200mm |
Wheels & Tires
| Hubs | (F) Shimano TC500, 15x110, Centerlock, 32h / (R) Shimano TC600, 12x148, MicroSpline, Centerlock, 32h |
|---|---|
| Rims | (F) RaceFace AR Offset 27 29 / (R) RaceFace AR Offset 27 29 |
| Front Tire | Maxxis Aspen AT 29x2.4 MaxxSpeed EXO |
| Rear Tire | Maxxis Aspen AT 29x2.4 MaxxSpeed EXO |
| Wheel Size | 29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 405 mm | 405 mm | 440 mm | 490 mm |
| Top tube | 575 mm | 596 mm | 622 mm | 650 mm |
| Head tube | 90 mm | 90 mm | 100 mm | 115 mm |
| Head-tube angle | 66° | 66° | 66° | 66° |
| Seat-tube angle | 75.7° | 76° | 76.1° | 76.2° |
| Chainstay / rear center | 433 mm | 435 mm | 437 mm | 439 mm |
| Wheelbase | 1151 mm | 1178 mm | 1209 mm | 1242 mm |
| Bottom-bracket drop | 38.5 mm | 38.5 mm | 38.5 mm | 38.5 mm |
| Bottom-bracket height | 334 mm | 334 mm | 334 mm | 334 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Stack | 588 mm | 588 mm | 597 mm | 611 mm |
| Standover height | 735 mm | 743 mm | 745 mm | 744 mm |
| Front center | 718 mm | 743 mm | 772 mm | 803 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
S geometry
Riding position
A 425 mm reach paired with 588 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end.
Handling tendencies
A 66° head angle combined with a 1151 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its stack of 588 mm sits toward the lower end. Its wheelbase of 1151 mm sits somewhat shorter than typical. Its bottom-bracket drop of 38.5 mm sits somewhat deeper than typical.
M geometry
Riding position
A 450 mm reach paired with 588 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 76° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66° head angle combined with a 1178 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its stack of 588 mm sits toward the lower end. Its wheelbase of 1178 mm sits somewhat shorter than typical. Its reach of 450 mm sits somewhat shorter than typical.
L geometry
Riding position
With 475 mm of reach and 597 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 76.1° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66° head angle combined with a 1209 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its stack of 597 mm sits toward the lower end. Its wheelbase of 1209 mm sits somewhat shorter than typical. Its bottom-bracket drop of 38.5 mm sits somewhat deeper than typical.
XL geometry
Riding position
With 500 mm of reach and 611 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 76.2° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66° head angle combined with a 1242 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its stack of 611 mm sits toward the lower end. Its wheelbase of 1242 mm sits somewhat shorter than typical. The head angle of 66° sits somewhat steeper than typical.
Across the size range
From S to XL, reach grows by 75 mm and stack by 23 mm, showing how the frame becomes both longer and taller through the published size range. Chainstay length grows from 433 to 439 mm across the range. That size-specific rear-center strategy helps the larger frames grow at both ends instead of adding all of their length ahead of the bottom bracket.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.

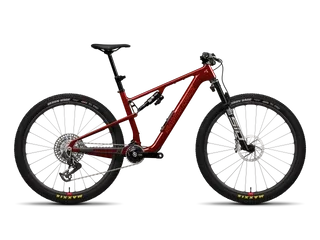

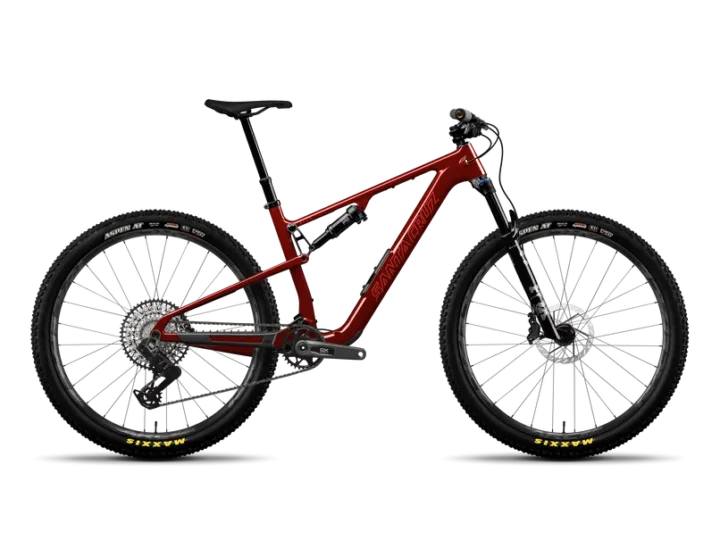

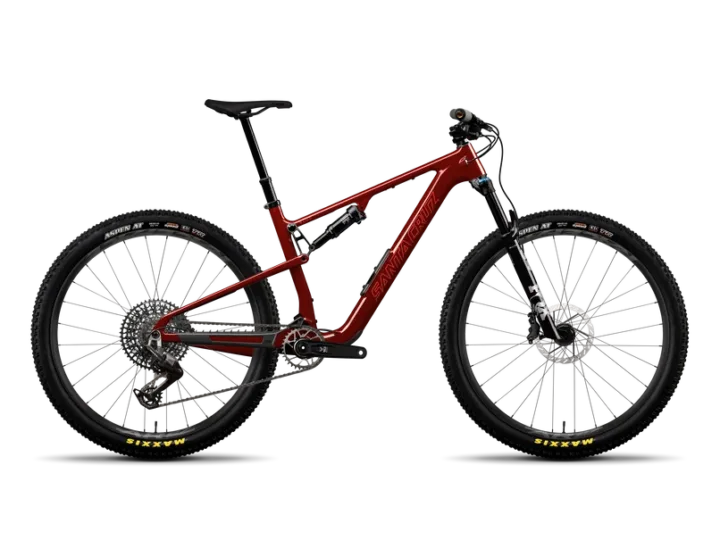

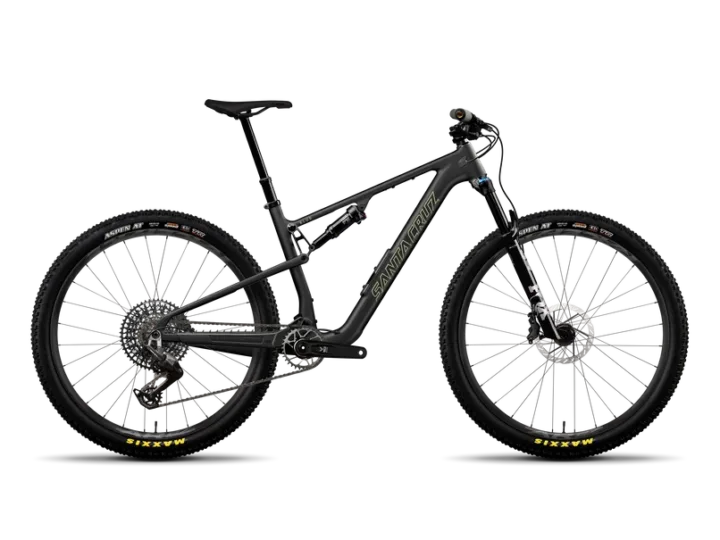

Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
