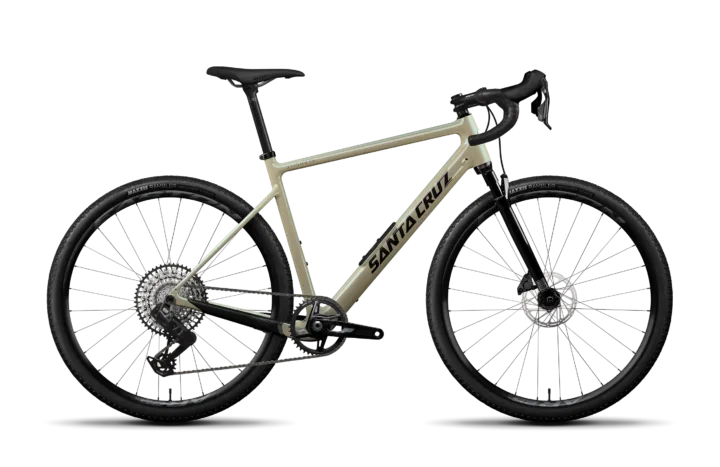

2027 Santa Cruz Stigmata Rival AXS Rudy
Cyclocross/Gravel bicycle from the Velopedia specification archive.
- Original MSRP
- $5,149.00
- Sizes
- XS, S, M, L, XL, XXL
- Colors
- Matte Sour Grape, Gloss Sage Luster
- Weight
- 23.5 lbs / 10.66 kg
- Geometry
- 6 manufacturer sizes · Ride analysis
- Archive ID
- 900000320
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
Suspension is concentrated at the fork, so fork setup and rear-tire pressure are the main tools for balancing front and rear behavior. Electronic shifting removes the usual shift cable but adds a separate battery and controls, while the 520% cassette range describes how much gearing is available. Carbon construction changes the inspection emphasis from metal-style dents and corrosion to impact damage, ripples and overtightened clamp areas.
Suspension setup
Front only
Fork settings affect the front while rear-wheel behavior remains dependent on tire and wheel setup.
Drivetrain
Electronic · 520% range
Shift-system battery state joins derailleur setup and sprocket compatibility as a troubleshooting variable.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Wheel standard
700C · 622 mm
The label fixes rim diameter, not tire width or available frame and fork clearance.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Santa Cruz Stigmata Rival AXS Rudy · Cyclocross/Gravel · Published sizes: XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon CC Gravel · Fork: RockShox Rudy Base XPLR, 40mm
Suspension
Evaluate the suspension →Archived: Fork: RockShox Rudy Base XPLR, 40mm
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Rival AXS · Rear derailleur: SRAM GX Eagle AXS T-Type, 12spd · Crankset: Rival XPLR, 42t XS-S: 165mm; M-L: 170mm; XL-XXL: 172.5mm · Bottom bracket: SRAM DUB 68mm Road Wide BB · Cassette: SRAM GX 1275 Eagle T-Type, 10-52t · Chain: SRAM GX Eagle T-Type, Flattop, 12spd
Brakes
Inspect the brakes →Archived: Brakes: SRAM Rival AXS
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: (F) RaceFace AR Offset 25 / (R) RaceFace AR Offset 25 · Hubs: (F) DT Swiss 370, 12x100, Centerlock, 28h / (R) DT Swiss 370, 12x142, XDr, Centerlock, 28h · Front tire: Maxxis Rambler, 700x45c, Hyper-X, EXO · Rear tire: Maxxis Rambler, 700x45c, Hyper-X, EXO
Controls and contact points
Archived: Headset: Cane Creek 50 IS Integrated Headset · Handlebar: Zipp Service Course 70 XPLR AL Bar, 31.8 XS-S: 42cm; M-L: 44cm; XL-XXL: 46cm · Stem: Zipp Service Course Stem All Sizes: 70mm · Seatpost: Easton EC70, 27.2, Zero Offset, 27.2 All Sizes: 350mm · Saddle: WTB Silverado Medium, CroMo
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Carbon CC Gravel |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Rudy Base XPLR, 40mm |
Drivetrain
| Shifters | SRAM Rival AXS |
|---|---|
| Rear Derailleur | SRAM GX Eagle AXS T-Type, 12spd |
| Crankset | Rival XPLR, 42t XS-S: 165mm; M-L: 170mm; XL-XXL: 172.5mm |
| Bottom Bracket | SRAM DUB 68mm Road Wide BB |
| Cassette | SRAM GX 1275 Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
Brakes
| Brakes | SRAM Rival AXS |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 50 IS Integrated Headset |
|---|---|
| Handlebar | Zipp Service Course 70 XPLR AL Bar, 31.8 XS-S: 42cm; M-L: 44cm; XL-XXL: 46cm |
| Stem | Zipp Service Course Stem All Sizes: 70mm |
| Saddle | WTB Silverado Medium, CroMo |
| Seatpost | Easton EC70, 27.2, Zero Offset, 27.2 All Sizes: 350mm |
Wheels & Tires
| Hubs | (F) DT Swiss 370, 12x100, Centerlock, 28h / (R) DT Swiss 370, 12x142, XDr, Centerlock, 28h |
|---|---|
| Rims | (F) RaceFace AR Offset 25 / (R) RaceFace AR Offset 25 |
| Front Tire | Maxxis Rambler, 700x45c, Hyper-X, EXO |
| Rear Tire | Maxxis Rambler, 700x45c, Hyper-X, EXO |
| Wheel Size | 700c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube | 450 mm | 455 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Top tube | 533 mm | 552 mm | 570 mm | 592 mm | 610 mm | 631 mm |
| Head tube | 90 mm | 105 mm | 120 mm | 145 mm | 160 mm | 180 mm |
| Head-tube angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Seat-tube angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1023 mm | 1043 mm | 1063 mm | 1087 mm | 1108 mm | 1130 mm |
| Bottom-bracket drop | 78 mm | 78 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Bottom-bracket height | 278 mm | 278 mm | 280 mm | 280 mm | 282 mm | 282 mm |
| Reach | 375 mm | 390 mm | 405 mm | 420 mm | 435 mm | 450 mm |
| Stack | 550 mm | 564 mm | 576 mm | 600 mm | 612 mm | 631 mm |
| Front center | 605 mm | 625 mm | 645 mm | 668 mm | 688 mm | 710 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
XS geometry
Riding position
A 375 mm reach and 550 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 69.5° head angle combined with a 1023 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 78 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
The chainstay of 423 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 78 mm sits toward the deeper-drop end. The seat angle of 74° sits somewhat more relaxed than typical.
SM geometry
Riding position
A 390 mm reach and 564 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 69.5° head angle combined with a 1043 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 78 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
The chainstay of 423 mm sits toward the shorter rear-center end. Its reach of 390 mm sits toward the longer end. Its bottom-bracket drop of 78 mm sits somewhat deeper than typical.
MD geometry
Riding position
A 405 mm reach and 576 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 69.5° head angle combined with a 1063 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 76 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
The chainstay of 423 mm sits toward the shorter rear-center end. Its reach of 405 mm sits toward the longer end. The head angle of 69.5° sits somewhat slacker than typical.
LG geometry
Riding position
A 420 mm reach and 600 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 69.5° head angle combined with a 1087 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 76 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
The chainstay of 423 mm sits toward the shorter rear-center end. Its reach of 420 mm sits toward the longer end. The seat angle of 74° sits somewhat steeper than typical.
XL geometry
Riding position
The 435 mm reach and 612 mm stack create a relatively long, low gravel position, favoring a more performance-oriented posture over a distinctly upright one.
Handling tendencies
A 69.5° head angle combined with a 1108 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 74 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its reach of 435 mm sits toward the longer end. The chainstay of 423 mm sits toward the shorter rear-center end. The seat angle of 74° sits toward the steeper end.
XXL geometry
Riding position
The 450 mm reach and 631 mm stack create a relatively long, low gravel position, favoring a more performance-oriented posture over a distinctly upright one.
Handling tendencies
A 69.5° head angle combined with a 1130 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 74 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its reach of 450 mm sits toward the longer end. Its wheelbase of 1130 mm sits toward the longer end. The head angle of 69.5° sits toward the slacker end.
Across the size range
From XS to XXL, reach grows by 75 mm and stack by 81 mm, showing how the frame becomes both longer and taller through the published size range. The rear center stays essentially constant at about 423 mm across sizes, so most of the wheelbase growth happens in the front half of the bike rather than by lengthening the rear triangle.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.

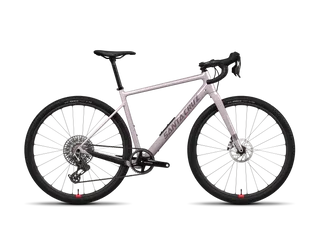

Gallery
