Velopedia Bicycle Archive

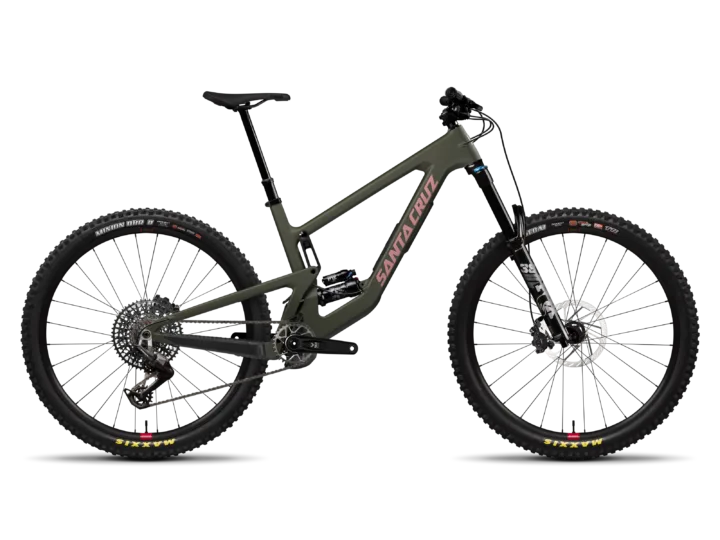

2026 Santa Cruz Megatower 90
Mountain bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
- Original MSRP
- $6,099.00
- Sizes
- S, M, L, XL, XXL
- Colors
- Gloss Silver, Matte Olive Drab
- Weight
- 36.06lbs / 16.36 kg
- Geometry
- 5 manufacturer sizes · Ride analysis
- Archive ID
- 900000429
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The fork and rear shock need to be set up as a pair. If their sag or rebound settings are far apart, the front and rear of the bike can react very differently. The 520% cassette range describes the available gearing more clearly than the component-group name alone. The archive does not identify the brake system, so its controls, actuation method, pads and braking surfaces need to be checked directly.
Suspension setup
Front + rear
Fork and shock pressure, sag and rebound should be balanced and recorded independently.
Gearing
520% cassette range
Calculated from the published 10–52-tooth sprocket span.
Brake inspection
Type not specified
Identify the installed system before choosing parts, cables, hoses or service procedures.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Santa Cruz Megatower 90 · Mountain · Published sizes: S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon C 29" 170mm Travel VPP™ · Fork: FOX 38 Float Performance, Grip, 170mm
Suspension
Evaluate the suspension →Archived: Fork: FOX 38 Float Performance, Grip, 170mm · Rear shock: FOX Float X Performance, 230x65
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM 90 Eagle T-Type, 12spd · Rear derailleur: SRAM 90 Eagle T-Type, 12spd · Crankset: SRAM 90 Eagle DUB T-Type Crankset, 32t · Bottom bracket: SRAM DUB 73mm MTB Wide BB · Cassette: SRAM XS 1275 Eagle T-Type, 10-52t · Chain: SRAM GX Eagle T-Type, Flattop, 12spd
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" · Rims: (F) Reserve 30|TR AL / (R) Reserve 30|HD AL · Hubs: (F) DT Swiss 370, 15x110, 6-Bolt, 28h / (R) DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h · Front tire: Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ · Rear tire: Maxxis Minion DHR II 29x2.4" 3C MaxxTerra, Double Down
Controls and contact points
Archived: Headset: Cane Creek 50 IS Integrated Headset · Handlebar: OneUp Aluminum Bar · Stem: OneUp Enduro Stem, 42mm · Seatpost: OneUp Dropper Post, 31.6 · Saddle: SDG Bel-Air V3 Lux-Alloy
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Carbon C 29" 170mm Travel VPP™ |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | FOX 38 Float Performance, Grip, 170mm |
| Rear Shock | FOX Float X Performance, 230x65 |
Drivetrain
| Shifters | SRAM 90 Eagle T-Type, 12spd |
|---|---|
| Rear Derailleur | SRAM 90 Eagle T-Type, 12spd |
| Crankset | SRAM 90 Eagle DUB T-Type Crankset, 32t |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| BB Shell Width | 73 mm |
| Cassette | SRAM XS 1275 Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
Cockpit & Contact Points
| Headset | Cane Creek 50 IS Integrated Headset |
|---|---|
| Handlebar | OneUp Aluminum Bar |
| Stem | OneUp Enduro Stem, 42mm |
| Saddle | SDG Bel-Air V3 Lux-Alloy |
| Seatpost | OneUp Dropper Post, 31.6 |
Wheels & Tires
| Hubs | (F) DT Swiss 370, 15x110, 6-Bolt, 28h / (R) DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h |
|---|---|
| Rims | (F) Reserve 30|TR AL / (R) Reserve 30|HD AL |
| Front Tire | Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
| Rear Tire | Maxxis Minion DHR II 29x2.4" 3C MaxxTerra, Double Down |
| Wheel Size | 29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Seat tube | 380 mm | 405 mm | 430 mm | 460 mm | 500 mm |
| Top tube | 570 mm | 594/595 | 613 mm | 637/638 | 666/667 |
| Head tube | 90 mm | 100 mm | 115 mm | 135 mm | 150 mm |
| Head-tube angle | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° |
| Seat-tube angle | 77.24°/77.0° | 77.42°/77.2° | 77.8°/77.5° | 77.8°/77.5° | 77.8°/77.5° |
| Chainstay / rear center | 436/437 | 437/438 | 440/441 | 443/444 | 447/448 |
| Wheelbase | 1206 mm | 1236/1237 | 1266 mm | 1298 mm | 1333/1334 |
| Bottom-bracket drop | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 |
| Bottom-bracket height | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 |
| Reach | 430/427 | 455/452 | 475/472 | 495/492 | 520/517 |
| Stack | 616/618 | 625/627 | 638/640 | 656/658 | 670/672 |
| Standover height | 709/705 | 716/712 | 723/718 | 722/717 | 724/720 |
| Front center | 770 mm | 799 mm | 826 mm | 855 mm | 886 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
The archived table contains paired manufacturer values. Velopedia separates the numerically higher and lower chassis states for interpretation without treating them as separate bicycles.
S geometry
Configuration
Riding position
The 616 mm stack is tall relative to the 430 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77.2° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.8° head angle combined with a 1206 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Lower geometry, this configuration raises the bottom bracket by 3.5 mm, reduces bottom-bracket drop by 3.5 mm, steepens the head angle by 0.3°, and extends reach by 3 mm.
Archive context
The head angle of 63.8° sits toward the slacker end. Its bottom-bracket drop of 26.5 mm sits somewhat shallower than typical. The seat angle of 77.2° sits somewhat steeper than typical.
Riding position
The 618 mm stack is tall relative to the 427 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.5° head angle combined with a 1206 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Higher geometry, this configuration lowers the bottom bracket by 3.5 mm, increases bottom-bracket drop by 3.5 mm, slackens the head angle by 0.3°, and shortens reach by 3 mm.
Archive context
The head angle of 63.5° sits toward the slacker end. The chainstay of 437 mm sits toward the longer rear-center end. Its wheelbase of 1206 mm sits somewhat longer than typical.
M geometry
Configuration
Riding position
A 455 mm reach paired with 625 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.4° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.8° head angle combined with a 1236 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Lower geometry, this configuration raises the bottom bracket by 3.5 mm, reduces bottom-bracket drop by 3.5 mm, steepens the head angle by 0.3°, and extends reach by 3 mm.
Archive context
The seat angle of 77.4° sits toward the steeper end. Its bottom-bracket drop of 26.5 mm sits toward the shallower-drop end. The head angle of 63.8° sits toward the slacker end.
Riding position
A 452 mm reach paired with 627 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.2° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.5° head angle combined with a 1237 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Higher geometry, this configuration lowers the bottom bracket by 3.5 mm, increases bottom-bracket drop by 3.5 mm, slackens the head angle by 0.3°, and shortens reach by 3 mm.
Archive context
The head angle of 63.5° sits toward the slacker end. The seat angle of 77.2° sits somewhat steeper than typical. The chainstay of 438 mm sits somewhat longer than typical.
L geometry
Configuration
Riding position
A 475 mm reach paired with 638 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.8° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.8° head angle combined with a 1266 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Lower geometry, this configuration raises the bottom bracket by 3.5 mm, reduces bottom-bracket drop by 3.5 mm, steepens the head angle by 0.3°, and extends reach by 3 mm.
Archive context
The seat angle of 77.8° sits toward the steeper end. Its bottom-bracket drop of 26.5 mm sits somewhat shallower than typical. The head angle of 63.8° sits somewhat slacker than typical.
Riding position
A 472 mm reach paired with 640 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.5° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.5° head angle combined with a 1266 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Higher geometry, this configuration lowers the bottom bracket by 3.5 mm, increases bottom-bracket drop by 3.5 mm, slackens the head angle by 0.3°, and shortens reach by 3 mm.
Archive context
The seat angle of 77.5° sits toward the steeper end. The head angle of 63.5° sits toward the slacker end. The chainstay of 441 mm sits somewhat longer than typical.
XL geometry
Configuration
Riding position
A 495 mm reach paired with 656 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.8° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.8° head angle combined with a 1298 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Lower geometry, this configuration raises the bottom bracket by 3.5 mm, reduces bottom-bracket drop by 3.5 mm, steepens the head angle by 0.3°, and extends reach by 3 mm.
Archive context
The seat angle of 77.8° sits toward the steeper end. Its bottom-bracket drop of 26.5 mm sits toward the shallower-drop end. Its stack of 656 mm sits toward the taller end.
Riding position
A 492 mm reach paired with 658 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.5° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.5° head angle combined with a 1298 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Higher geometry, this configuration lowers the bottom bracket by 3.5 mm, increases bottom-bracket drop by 3.5 mm, slackens the head angle by 0.3°, and shortens reach by 3 mm.
Archive context
Its stack of 658 mm sits toward the taller end. Its reach of 492 mm sits toward the shorter end. The head angle of 63.5° sits toward the slacker end.
XXL geometry
Configuration
Riding position
With 520 mm of reach and 670 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77.8° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.8° head angle combined with a 1333 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Lower geometry, this configuration raises the bottom bracket by 3.5 mm, reduces bottom-bracket drop by 3.5 mm, steepens the head angle by 0.3°, and extends reach by 3 mm.
Archive context
Its bottom-bracket drop of 26.5 mm sits toward the shallower-drop end. Its wheelbase of 1333 mm sits toward the longer end. The head angle of 63.8° sits toward the slacker end.
Riding position
With 517 mm of reach and 672 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77.5° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 63.5° head angle combined with a 1334 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Configuration changes
Compared with Higher geometry, this configuration lowers the bottom bracket by 3.5 mm, increases bottom-bracket drop by 3.5 mm, slackens the head angle by 0.3°, and shortens reach by 3 mm.
Archive context
Its stack of 672 mm sits toward the taller end. Its wheelbase of 1334 mm sits toward the longer end. The head angle of 63.5° sits toward the slacker end.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
