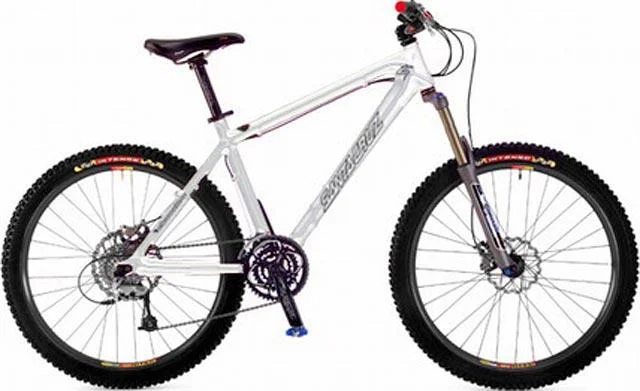

2004 Santa Cruz Chameleon XTR Disc

Original specifications: Shimano XTR drivetrain · 26" wheels · 23.62 lb published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #31988
Model year
2004
Category
Mountain
Original MSRP
$3,558.00
Sizes
S, M, L, XL
Colors
Black, Gray, Orange, Polished, Red, Rootbeer, Trans Blue, Trans Red, White
Weight
23.62 lb
Geometry
Legacy reference
In this record
23 specifications · archived image · original MSRP · geometry
Sponsored affiliate link
Original buildCustom Butted 6066 aluminum · Shimano XTR · 26" wheels

Manufacturer catalog

Published sizes and colors

4 sizes · 9 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

BlackGrayOrangePolishedRedRootbeer
+ 3 more colors + 5 more colors
RedRootbeerTrans BlueTrans RedWhite

Frameset

Frame ConstructionTIG-welded
Frame MaterialCustom Butted 6066 aluminum
ForkRock Shox Sid Team with R/L, 80mm travel
Fork MaterialAluminum, single crown suspension crown

Drivetrain

Component GroupShimano XTR
ShiftersShimano XTR
Front DerailleurShimano XTR
Rear DerailleurShimano XTR
CranksetShimano XTR, 24/32/44 teeth
Bottom BracketShimano XTR, XTR integrated spindle
BB Shell Width68mm English
Rear Cogs9, 11 - 34 teeth
ChainShimano CN-HG93, 1/2 x 3/32"

Brakes

BrakesShimano XTR Disc brakes, Shimano XTR levers

Cockpit & Contact Points

Headset1 1/8" threadless Chris King NoThreadSet
HandlebarEaston Monkey Lite
StemThomson Elite
SaddleFi'zi:k Gobi
SeatpostEaston EC70

Wheels & Tires

HubsShimano XTR Disc
RimsMavic XC717 Disc
Front Tire26 x 1.95" Kenda Karma
Wheel Size26" wheels

Geometry

Legacy reference · 3 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 3 measurements
MeasurementLegacy reference
Head-tube angle71°
Seat-tube angle73°
Chainstay / rear center419.1 mm

Frame size not recorded.

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
Shimano CN-HG93

1/2 x 3/32"

Front tire · Original
26 x 1.95" Kenda Karma
Bottom bracket · Original
Shimano XTR

XTR integrated spindle

More parts (11)Fewer parts
Saddle · Original
Fi'zi:k Gobi
Crankset · Original
Shimano XTR

24/32/44 teeth

Front derailleur · Original
Shimano XTR
Rear derailleur · Original
Shimano XTR
Shifters · Original
Shimano XTR
Handlebar · Original
Easton Monkey Lite
Stem · Original
Thomson Elite
Seatpost · Original
Easton EC70
Headset · Original
1 1/8" threadless Chris King NoThreadSet
Rims · Original
Mavic XC717 Disc
Hubs · Original
Shimano XTR Disc

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 1.95" Kenda Karma
Drivetrain
Shimano XTR
Bottom bracket / shell
Shimano XTR, XTR integrated spindle · 68mm English
Sponsored affiliate link
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Rock Shox Sid Team with R/L, 80mm travel · Aluminum, single crown suspension crown

Archived: Fork: Rock Shox Sid Team with R/L, 80mm travel

Archived: Group: Shimano XTR · Shifters: Shimano XTR · Front derailleur: Shimano XTR · Rear derailleur: Shimano XTR · Crankset: Shimano XTR, 24/32/44 teeth · Bottom bracket: Shimano XTR, XTR integrated spindle · Rear cogs: 9, 11 - 34 teeth · Chain: Shimano CN-HG93, 1/2 x 3/32"

Archived: Brakes: Shimano XTR Disc brakes, Shimano XTR levers

Archived: Wheel size: 26" wheels · Rims: Mavic XC717 Disc · Hubs: Shimano XTR Disc · Front tire: 26 x 1.95" Kenda Karma

Controls and contact points

Archived: Headset: 1 1/8" threadless Chris King NoThreadSet · Handlebar: Easton Monkey Lite · Stem: Thomson Elite · Seatpost: Easton EC70 · Saddle: Fi'zi:k Gobi
