2026 Salsa Cutthroat C Frameset
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
- Original MSRP
- $2,599.00
- Sizes
- 52cm, 54cm, 56cm, 58cm, 60cm
- Colors
- Deep Orchid
- Geometry
- 5 manufacturer sizes · Ride analysis
- Archive ID
- 900000746
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Salsa Cutthroat C Frameset · Cyclocross/Gravel · Published sizes: 52cm, 54cm, 56cm, 58cm, 60cm
Frame and fork
Inspect the frame and fork →Archived: Frame: Cutthroat Carbon · Fork: Cutthroat Carbon · Carbon Fiber
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Cutthroat Carbon |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Cutthroat Carbon |
| Fork Material | Carbon Fiber |
Cockpit & Contact Points
| Headset | FSA Orbit ITA |
|---|
Wheels & Tires
| Wheel Size | 29" |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Seat tube | 356 mm | 419 mm | 508 mm | 559 mm | 584 mm |
| Effective top tube | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head tube | 90 mm | 98 mm | 127 mm | 154 mm | 175 mm |
| Head-tube angle | 69° | 69° | 69° | 69° | 69° |
| Seat-tube angle | 74.5° | 74.25° | 74.25° | 74° | 73.75° |
| Chainstay / rear center | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1050 mm | 1066 mm | 1091 mm | 1110 mm | 1129 mm |
| Bottom-bracket drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom-bracket height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Reach | 357 mm | 372 mm | 385 mm | 394 mm | 406 mm |
| Stack | 585 mm | 592 mm | 620 mm | 645 mm | 664 mm |
| Standover height | 700 mm | 742 mm | 811 mm | 852 mm | 874 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Fork length / axle-to-crown | 483 mm | 483 mm | 483 mm | 483 mm | 483 mm |
Geometry source: Salsa first-party metric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
52cm geometry
Riding position
The 585 mm stack is tall relative to the 357 mm reach, leaving room for a more upright, relaxed gravel position. A 74.5° seat angle puts the rider relatively forward over the bottom bracket, shortening the effective seated reach compared with a more relaxed seat angle.
Handling tendencies
A 69° head angle combined with a 1050 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 445 mm chainstay is on the longer side for a drop-bar chassis, generally favoring stability and tire/heel clearance over an especially compact rear end.
Archive context
Its reach of 357 mm sits toward the shorter end. The chainstay of 445 mm sits toward the longer rear-center end. Its stack of 585 mm sits toward the taller end.
54cm geometry
Riding position
The 592 mm stack is tall relative to the 372 mm reach, leaving room for a more upright, relaxed gravel position.
Handling tendencies
A 69° head angle combined with a 1066 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 445 mm chainstay is on the longer side for a drop-bar chassis, generally favoring stability and tire/heel clearance over an especially compact rear end.
Archive context
Its stack of 592 mm sits toward the taller end. The chainstay of 445 mm sits toward the longer rear-center end. Its wheelbase of 1066 mm sits toward the longer end.
56cm geometry
Riding position
The 620 mm stack is tall relative to the 385 mm reach, leaving room for a more upright, relaxed gravel position.
Handling tendencies
A 69° head angle combined with a 1091 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 445 mm chainstay is on the longer side for a drop-bar chassis, generally favoring stability and tire/heel clearance over an especially compact rear end.
Archive context
Its stack of 620 mm sits toward the taller end. The seat angle of 74.3° sits toward the steeper end. The chainstay of 445 mm sits toward the longer rear-center end.
58cm geometry
Riding position
The 645 mm stack is tall relative to the 394 mm reach, leaving room for a more upright, relaxed gravel position.
Handling tendencies
A 69° head angle combined with a 1110 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 445 mm chainstay is on the longer side for a drop-bar chassis, generally favoring stability and tire/heel clearance over an especially compact rear end.
Archive context
Its stack of 645 mm sits toward the taller end. The chainstay of 445 mm sits toward the longer rear-center end. The head angle of 69° sits toward the slacker end.
60cm geometry
Riding position
The 664 mm stack is tall relative to the 406 mm reach, leaving room for a more upright, relaxed gravel position.
Handling tendencies
A 69° head angle combined with a 1129 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. The 445 mm chainstay is on the longer side for a drop-bar chassis, generally favoring stability and tire/heel clearance over an especially compact rear end.
Archive context
The chainstay of 445 mm sits toward the longer rear-center end. Its stack of 664 mm sits toward the taller end. The head angle of 69° sits toward the slacker end.
Across the size range
From 52cm to 60cm, reach grows by 49 mm and stack by 79 mm, showing how the frame becomes both longer and taller through the published size range. The rear center stays essentially constant at about 445 mm across sizes, so most of the wheelbase growth happens in the front half of the bike rather than by lengthening the rear triangle.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.

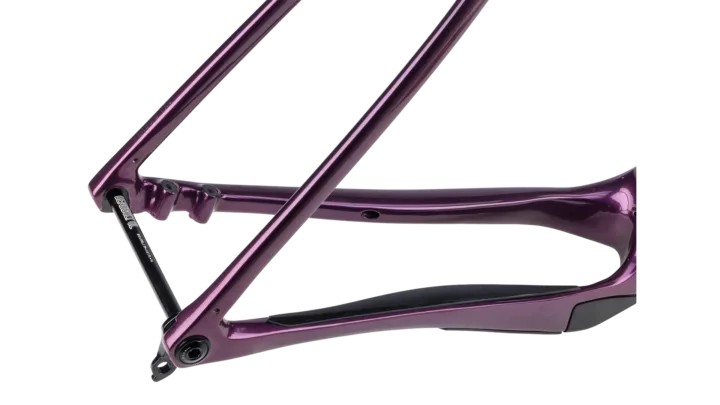

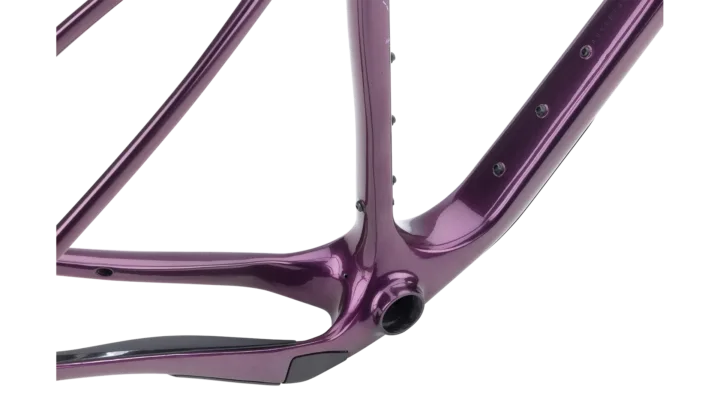

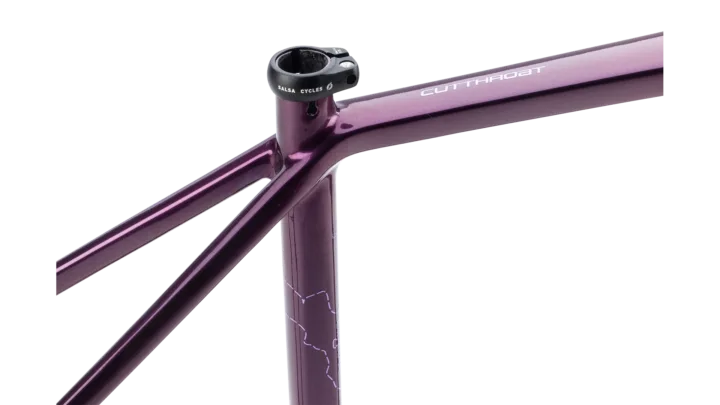

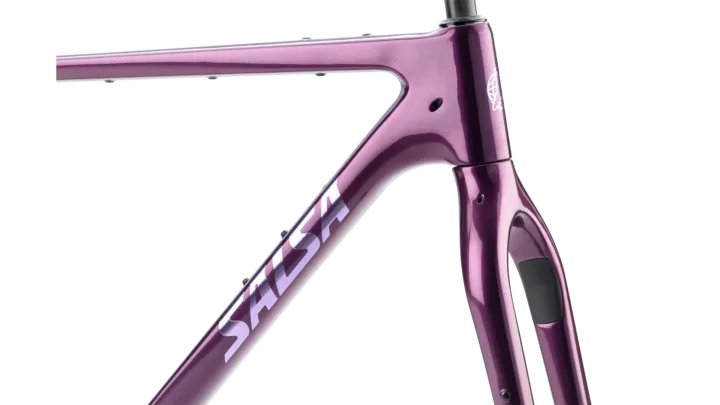

Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
