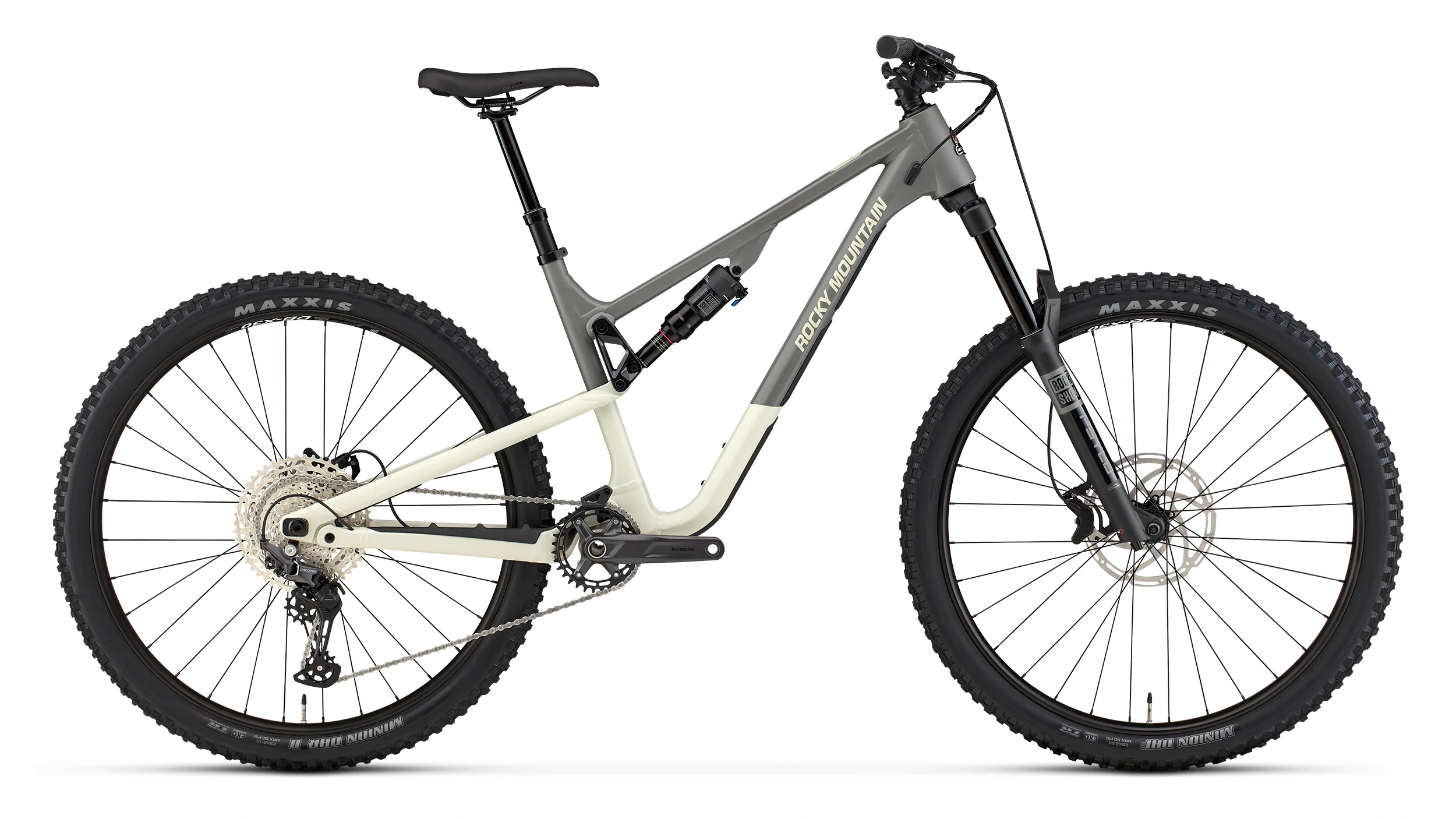

2026 Rocky Mountain Instinct Alloy 30

Mountain bicycle from the Velopedia specification archive.

Original MSRP: $3,499.00
Sizes: XS; SM; MD; LG; XL
Colors: Grey/Beige; Blue/Blue
Archive ID: 900000084

Current market

Checking current listings…

Frameset

Frame Construction	FORM™ Alloy \| Full Sealed Cartridge Bearings \| Press Fit BB \| Internal Cable Routing \| 2-Bolt ISCG05 Tabs \| RIDE-4™ Adjustable Geometry \| 2 Position Axle \| SM - XL = 145mm \| XS = 140mm \| FORM™ Alloy Rear Triangle
Frame Material	Aluminum
Fork	RockShox Psylo Gold RC 160mm \| 27.5 = 37mm Offset \| 29 = 42mm Offset
Rear Shock	RockShox Deluxe Select+ \| Linear XL Air Can \| Sealed Bearing Eyelet \| 20x8mm F Hardware \| XS - SM = 190x45mm \| MD - LG - XL = 210x55mm \| Size-Specific tune in FAQ

Drivetrain

Shifters	Shimano Deore 12spd
Rear Derailleur	Shimano Deore 12spd
Crankset	Shimano Deore \| 32T \| 24mm Spindle \| Crankarm Length: XS - SM = 165mm \| MD - XL = 170mm
Bottom Bracket	Shimano SM-BBMT500
Cassette	Shimano Deore 10-51T 12spd
Chain	Shimano M6100

Brakes

Brakes	Tektro HD-M535 \| Shimano Pad Compatible

Cockpit & Contact Points

Headset	FSA ZS56/66 Reach Adjust \| 0mm Cups Installed \| +/- 5mm Cups Included \| Sealed Stainless 36°x45° Bearings \| 30.2mm x 41mm x 6.5mm Upper \| 40mm x 51.8mm x 8.0mm Lower \| 1.5" Crown Race
Handlebar	Rocky Mountain AM \| 780mm Width \| 38mm Rise \| 9° Backsweep \| 5° Upsweep \| 31.8 Clamp
Stem	Rocky Mountain 31.8 AM \| 5° Rise \| All Sizes = 40mm
Saddle	WTB Volt 142 \| Steel Rails
Seatpost	Tranz X +RAD1.0 Adjustable Dropper Post \| 30mm Adjustment \| Alloy Clamp Lever \| 30.9mm \| XS = 125mm \| SM = 150mm \| MD = 170mm \| LG - XL = 200mm

Wheels & Tires

Hubs	Front: Shimano TC500 \| 15mm Boost; Rear: Shimano TC500 Boost 148mm
Rims	Rocky Mountain TR30 \| 32H
Spokes	2.0 Stainless
Front Tire	Maxxis Minion DHF 2.5 WT EXO Tubeless Ready
Rear Tire	Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready
Wheel Size	27.5"; 29"

Gallery

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
