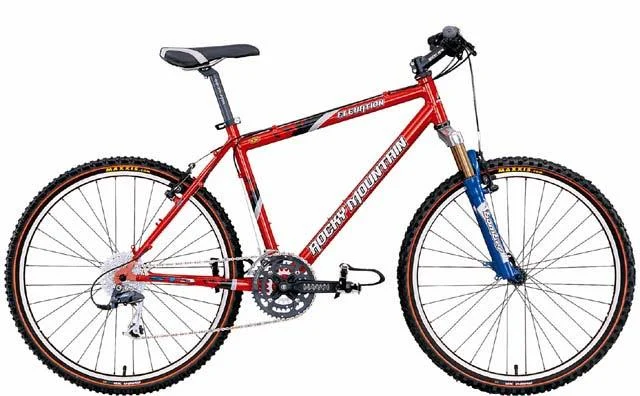

2001 Rocky Mountain Elevation
Original specifications: Shimano Deore drivetrain · 26" wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #35092- Model year
- 2001
- Category
- Mountain
- Original MSRP
- $860.00
- Sizes
- 14.5", 16", 17.5", 18.5", 19.5", 21"
- Colors
- Black, Red
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2001 archived details
- Published colors
- Black, Red
- Frame
- Easton 7005 Elite
- Original equipment
- Shimano Deore
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildEaston 7005 Elite · Shimano Deore · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Easton 7005 Elite |
| Fork | Marzocchi Z-5 Air, 4.0" travel |
| Fork Material | Aluminum, triple-clamp crown |
Drivetrain
| Component Group | Shimano Deore |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Deore LX SGS |
| Crankset | Shimano FCM 440, 22/32/44 teeth |
| Bottom Bracket | Sealed cartridge |
| Rear Cogs | 9-speed |
| Chain | SRAM, 1/2 x 3/32" |
| Pedals | Rocky Mountain X-Sport |
Brakes
| Brakes | Shimano V-brake brakes, Shimano Deore levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Ritchey Logic |
|---|---|
| Handlebar | Rocky Mountain Riser |
| Handlebar Extensions | Not included |
| Stem | Rocky Mountain |
| Saddle | Rocky Mountain custom |
| Seatpost | Rocky Mountain, 26.8mm diameter |
Wheels & Tires
| Hubs | Shimano Deore |
|---|---|
| Rims | Sun Rims CR18, 32-hole |
| Spokes | DT stainless steel, 1.8mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.10" Maxxis MOFO XC |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 5 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 575 mm |
| Head-tube angle | 70.5° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 425 mm |
| Wheelbase | 1055 mm |
Frame size not recorded.
Gearing
Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Shimano V-brake brakes
Shimano Deore levers
Shimano FCM 440
22/32/44 teeth
More parts (5)Fewer parts
Shimano Deore LX SGS
Shimano Deore
Rocky Mountain
26.8mm diameter
1 1/8" threadless Ritchey Logic
Shimano Deore
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.10" Maxxis MOFO XC
- Drivetrain
- 9-speed
- Seatpost diameter
- 26.8 mm
- Bottom bracket / shell
- Sealed cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi Z-5 Air, 4.0" travel · Aluminum, triple-clamp crown
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi Z-5 Air, 4.0" travel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Deore · Shifters: Shimano Deore · Front derailleur: Shimano Deore, top-pull/clamp-on 31.8mm · Rear derailleur: Shimano Deore LX SGS · Crankset: Shimano FCM 440, 22/32/44 teeth · Bottom bracket: Sealed cartridge · Rear cogs: 9-speed · Chain: SRAM, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano V-brake brakes, Shimano Deore levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Sun Rims CR18, 32-hole · Hubs: Shimano Deore · Front tire: 26 x 2.10" Maxxis MOFO XC
Controls and contact points
Archived: Headset: 1 1/8" threadless Ritchey Logic · Handlebar: Rocky Mountain Riser · Stem: Rocky Mountain · Seatpost: Rocky Mountain, 26.8mm diameter · Saddle: Rocky Mountain custom · Pedals: Rocky Mountain X-Sport
