2XS

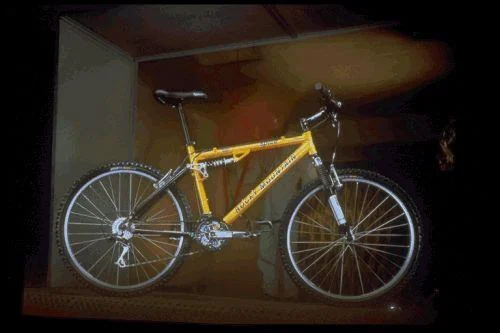

Mountain bike, front & rear suspension
Velopedia Bicycle Archive
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
| Frame Construction | Welded |
|---|---|
| Frame Material | Easton Custom HBO aluminum |
| Fork | Rock Shox Indy C LT |
| Fork Material | Aluminum/magnesium, triple-clamp crown |
| Rear Shock | Fox Vanilla X, 3.5" travel |
| Component Group | Shimano STX-RC |
|---|---|
| Shifters | Shimano STX-RC RapidFire SL |
| Front Derailleur | Shimano STX-RC top-swing, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Deore LX SGS |
| Crankset | Shimano STX-RC, 22/32/42 teeth |
| Bottom Bracket | Shimano BB-LP26 |
| Rear Cogs | 8-speed, 11 - 28 teeth |
| Chain | Taya TB-600, 1/2 x 3/32" |
| Pedals | Aluminum cage w/clips & straps |
| Brakes | Avid 1D-20 brakes, Avid SD-1.9 L levers |
|---|
| Headset | 1 1/8" threadless Ritchey Logic |
|---|---|
| Handlebar | RMB 2014 aluminum DH |
| Handlebar Extensions | Not included |
| Stem | RMB forged DH |
| Saddle | Selle Italia Nitrox PD |
| Seatpost | RMB aluminum |
| Hubs | Front: Shimano STX, Rear: Shimano STX-RC |
|---|---|
| Rims | Sun Rims CR18 |
| Spokes | DT stainless steel, 2.0mm straight gauge |
| Front Tire | 26 x 2.10" Ritchey Mega-Bite Z-Max SC |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
