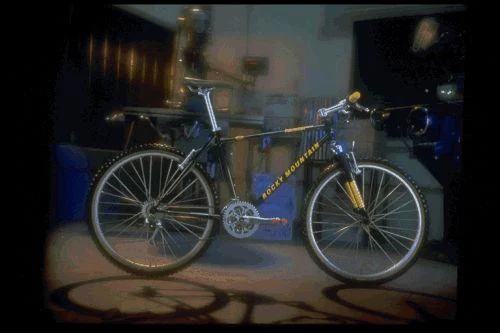

1998 Rocky Mountain Hammer Race

Archived: Frame: Welded · Fork: Rock Shox Judy T2 · Aluminum/magnesium, triple-clamp crown

• Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.

Archived: Fork: Rock Shox Judy T2

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Group: Mountain Mix · Shifters: Shimano Deore LX RapidFire SL · Front derailleur: Shimano Deore XT, top-pull/clamp-on 31.8mm · Rear derailleur: Shimano Deore XT SGS · Crankset: Race Face Turbine LP, 22/32/42 teeth · Bottom bracket: Shimano BB-UN52 · Rear cogs: 8-speed, 11 - 30 teeth · Chain: Taya TB-600, 1/2 x 3/32"

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Avid 1D-20 brakes, Avid SD-2.0 L levers

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 26" wheels · Rims: Sun Rims CR18 · Hubs: Shimano Deore LX · Front tire: Front: 26 x 1.95" WTB VelociRaptor 44/50, Rear: 26 x 1.95" WTB VelociRaptor 44/50 kevlar

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: 1 1/8" threadless Ritchey Logic Expert · Handlebar: RMB aluminum · Stem: Ritchey CompLite · Seatpost: Ritchey Expert · Saddle: Selle Italia Nitrox PD · Pedals: Ritchey Logic

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
