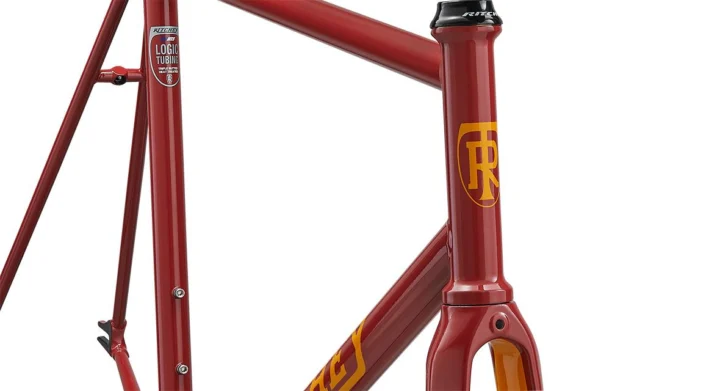

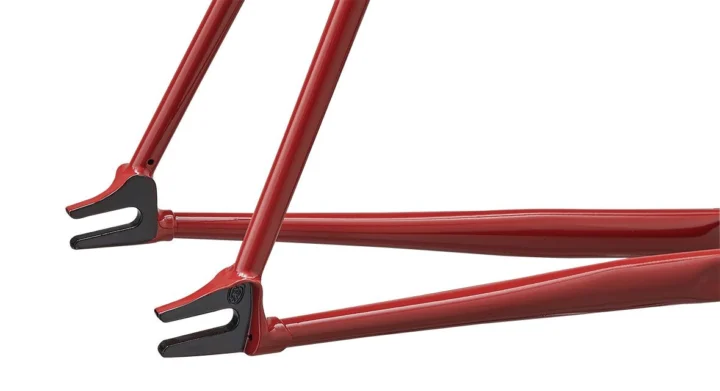

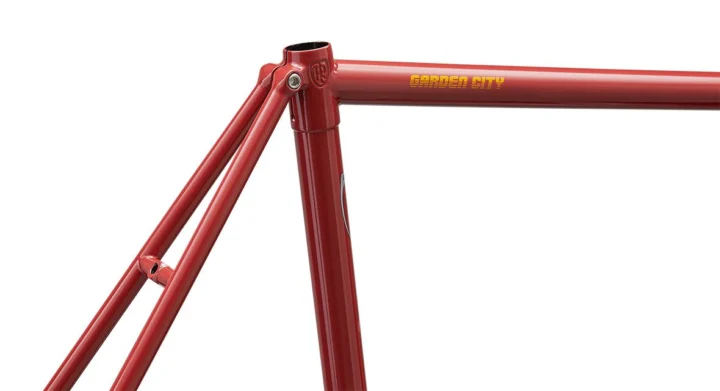

Ritchey Garden City Frameset

Track bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $1,349.00
Sizes: S; M; L; XL
Colors: Scarlet
Weight: Frame weight: 1,950g (size L); Fork weight: 562g (uncut steerer)
Geometry: 4 manufacturer sizes
Archive ID: 900000536
Catalog verified: August 13, 2026

Current market

Checking current listings…

Frameset

Frame Construction	heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Frame Material	Steel
Fork	Ritchey Comp Carbon Road Fork included 1-1/8" straight steerer
Fork Material	Carbon Fiber

Drivetrain

Bottom Bracket	68mm - English threaded

Cockpit & Contact Points

Headset	WCS headset included (upper IS42/28.6 - 16mm stack height \| lower IS42/30)

Wheels & Tires

Wheel Size	700C

Size-specific frame data

Geometry

4 sizes · 14 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	S	M	L	XL
Seat tube	485 mm	510 mm	540 mm	570 mm
Effective top tube	532 mm	551 mm	568 mm	585 mm
Top tube	526 mm	543 mm	559 mm	577 mm
Head tube	115 mm	140 mm	170 mm	200 mm
Head-tube angle	73°	73.5°	74°	74°
Seat-tube angle	74.5°	74°	74°	74°
Chainstay / rear center	395 mm	395 mm	395 mm	395 mm
Wheelbase	966 mm	976 mm	988 mm	1005 mm
Bottom-bracket drop	55 mm	55 mm	55 mm	55 mm
Reach	391 mm	398 mm	406 mm	415 mm
Stack	509 mm	534 mm	565 mm	594 mm
Standover height	764 mm	788 mm	818 mm	847 mm
Fork offset / rake	45 mm	45 mm	45 mm	45 mm
Fork length / axle-to-crown	367 mm	367 mm	367 mm	367 mm

Geometry source: Ritchey embedded first-party geometry matrix ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
