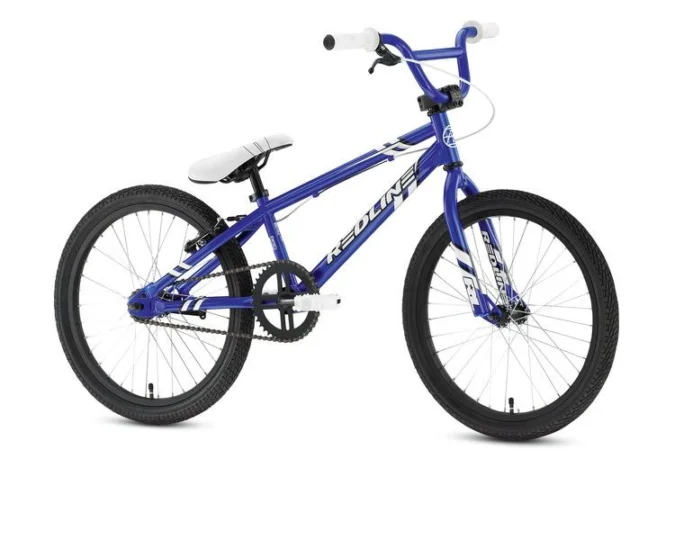

2011 Redline Raid 20

Original specifications: BMX Mix drivetrain · 20" wheels · 24.5 lb published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #25612
Model year
2011
Category
BMX
Sizes
One Size
Colors
Red, Blue
Weight
24.5 lb
In this record
21 specifications · 2 archived images
Sponsored affiliate link
Original buildHi Ten · BMX Mix · 20" wheels

Historical catalog variants

Archived sizes and colors

2 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

One Size

Published colors

RedBlue
View 2 archived size/color combinations
SizeColor
One SizeRed
One SizeBlue

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionBrazed/welded
Frame MaterialHi Ten
ForkRedline Raid Hi Ten
Fork MaterialHi Ten, unicrown crown

Drivetrain

Component GroupBMX Mix
CranksetRedline OPC, Redline 40t teeth
Bottom BracketVP OPC
CassetteRedline
Rear Cogs1-speed, 16 teeth
ChainKMC Z410
PedalsRedline PC Platform

Cockpit & Contact Points

Headset1" VP threadless
HandlebarRedline 23 x 5.5 Hi Ten
Handlebar ExtensionsNot included
StemRedline Mini 40mm
SaddleRedline Raid
SeatpostSteel, 22.2mm diameter

Wheels & Tires

HubsFront: Redline, Rear: Coaster Brake
RimsAlloy, 36-hole
Front Tire20 x 1.75" Kenda Kontact
Wheel Size20" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes40T · 16T · 1-speed
Ratio2.50:1
Estimated speed At 90 RPM Gear13.0 mph

Uses front tire 20×1.75; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
20 x 1.75" Kenda Kontact
Seatpost · Original
Steel

22.2mm diameter

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
20 x 1.75" Kenda Kontact
Drivetrain
1-speed
Seatpost diameter
22.2 mm
Bottom bracket / shell
VP OPC
Sponsored affiliate link
Equipment inspection checks 9 checks based on 4 archived component groups Open equipment checksClose equipment checks
0 of 9 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Brazed/welded · Fork: Redline Raid Hi Ten · Hi Ten, unicrown crown

Archived: Group: BMX Mix · Crankset: Redline OPC, Redline 40t teeth · Bottom bracket: VP OPC · Cassette: Redline · Rear cogs: 1-speed, 16 teeth · Chain: KMC Z410

Archived: Wheel size: 20" wheels · Rims: Alloy, 36-hole · Hubs: Front: Redline, Rear: Coaster Brake · Front tire: 20 x 1.75" Kenda Kontact

Controls and contact points

Archived: Headset: 1" VP threadless · Handlebar: Redline 23 x 5.5 Hi Ten · Stem: Redline Mini 40mm · Seatpost: Steel, 22.2mm diameter · Saddle: Redline Raid · Pedals: Redline PC Platform
