Velopedia Bicycle Archive

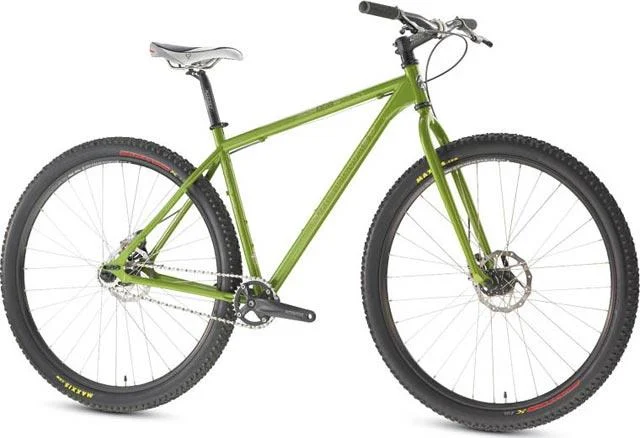

2011 Redline Monocog Flight 29er

Original specifications: Single Speed Mix drivetrain · 29" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #25604
Model year
2011
Category
Mountain
Sizes
15", 17", 19", 21"
Colors
Black
In this record
23 specifications · archived image
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
Black
Frame
Sanko Chromoly DB
Original equipment
Single Speed Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildSanko Chromoly DB · Single Speed Mix · 29" wheels

Historical catalog variants

Archived sizes and colors

4 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

15"17"19"21"

Published colors

Black
View 4 archived size/color combinations
SizeColor
15"Black
17"Black
19"Black
21"Black

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionChromoly
Frame MaterialSanko Chromoly DB
ForkSanko Taper Leg Chromo
Fork MaterialChromoly, single crown

Drivetrain

Component GroupSingle Speed Mix
CranksetFSA Maximus w/Guard, 32 teeth
Bottom BracketFSA ISIS, 108mm spindle
BB Shell Width68mm
CassetteRedline
Rear Cogs1-speed, 18 teeth
PedalsNo pedals

Brakes

BrakesAvid BB5 brakes, Avid FR5 levers

Cockpit & Contact Points

Headset1 1/8" Threadless
HandlebarSyncros AM Flat Top
Handlebar ExtensionsNot included
StemRitchey Comp
SaddleWTB Rocket V
SeatpostRitchey Comp, 27.2mm diameter

Wheels & Tires

HubsRL SB QR Disc
RimsAlex DP 20, 32-hole
SpokesStainless, 14ga. (2.0mm)
Front Tire29 x 2.10" WTB Prowler
Wheel Size29" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes32T · 18T · 1-speed
Ratio1.78:1
Estimated speed At 90 RPM Gear13.7 mph

Uses front tire 29×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
29 x 2.10" WTB Prowler
Retailer offers

Vittoria Barzo G2.0 4C XC Trail 29in Tire Anthracite/Black, XC-Trail/TNT, 29x2.1

Replacement option

Seatpost · Original
Ritchey Comp

27.2mm diameter

Retailer offers
Bottom bracket · Original
FSA ISIS

108mm spindle

More parts (5)Fewer parts
Saddle · Original
WTB Rocket V
Crankset · Original
FSA Maximus w/Guard

32 teeth

Handlebar · Original
Syncros AM Flat Top
Stem · Original
Ritchey Comp
Rims · Original
Alex DP 20

32-hole

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
29 x 2.10" WTB Prowler
Drivetrain
1-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
FSA ISIS, 108mm spindle · 68mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Chromoly · Fork: Sanko Taper Leg Chromo · Chromoly, single crown

Archived: Group: Single Speed Mix · Crankset: FSA Maximus w/Guard, 32 teeth · Bottom bracket: FSA ISIS, 108mm spindle · Cassette: Redline · Rear cogs: 1-speed, 18 teeth

Archived: Brakes: Avid BB5 brakes, Avid FR5 levers

Archived: Wheel size: 29" wheels · Rims: Alex DP 20, 32-hole · Hubs: RL SB QR Disc · Front tire: 29 x 2.10" WTB Prowler

Controls and contact points

Archived: Headset: 1 1/8" Threadless · Handlebar: Syncros AM Flat Top · Stem: Ritchey Comp · Seatpost: Ritchey Comp, 27.2mm diameter · Saddle: WTB Rocket V · Pedals: No pedals
