Velopedia Bicycle Archive

2011 Redline Flight Expert XL

Original specifications: BMX Mix drivetrain · 20" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22220
Model year
2011
Category
BMX
Sizes
1-size
In this record
22 specifications · archived image

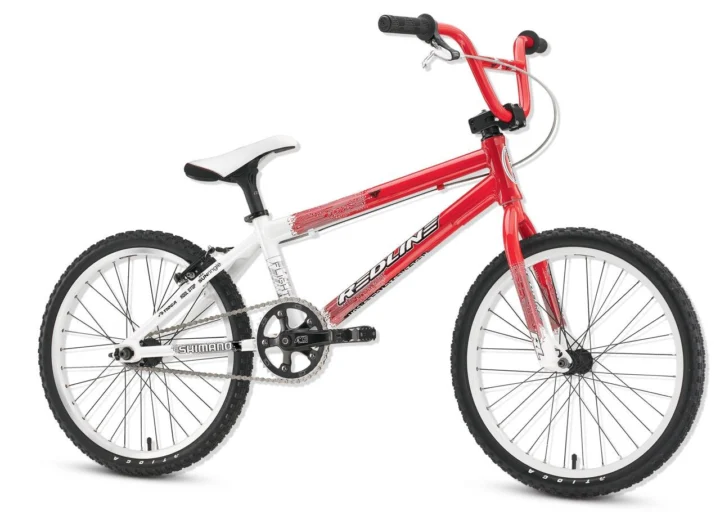

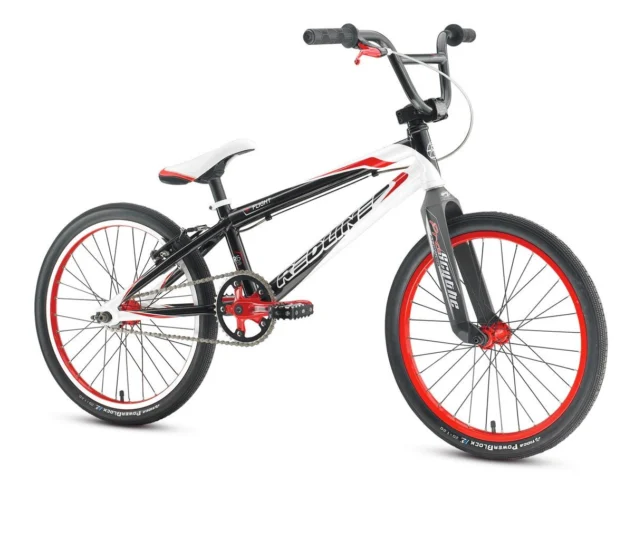

Model history 5 other years

Browse other years

Compare side by side

Identification clues

2011 archived details

Frame
R6 Formed Aluminum
Original equipment
BMX Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildR6 Formed Aluminum · BMX Mix · 20" wheels

Historical catalog variants

Archived sizes and colors

1 item record

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

1-size
View 1 archived size/color combination
SizeColor
1-size—

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialR6 Formed Aluminum
ForkAnswer Scythe Pro
Fork MaterialCarbon, unicrown crown

Drivetrain

Component GroupBMX Mix
CranksetRL Microline 170mm, 38T teeth
Bottom BracketExternal Alum Cups
CassetteRedline
ChainKMC Z33
PedalsRedline Jr. Aluminum cage

Cockpit & Contact Points

Headset1 1/8" threadless FSA Impact Integrated
HandlebarRedline 26"
Handlebar ExtensionsNot included
StemRedline Hollowpoint Aluminum
SaddleTioga D-Spyder
SeatpostPivotal alloy microadjust, 26.8mm diameter

Wheels & Tires

HubsFront: Redline Flight Sealed, Rear: Redline Flight Cassette Sealed
RimsSun Envy Lite, 32-hole
SpokesStainless, 14ga. (2.0mm) butted
Front Tire20 x 1.6" Tioga PowerBlock 20
Rear Tire20 x 1.4" Tioga PowerBlock 20
Wheel Size20" wheels

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z33
Seatpost · Original
Pivotal alloy microadjust

26.8mm diameter

Headset · Original
1 1/8" threadless FSA Impact Integrated

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: 20 x 1.6" Tioga PowerBlock 20, Rear: 20 x 1.4" Tioga PowerBlock 20
Drivetrain
BMX Mix
Seatpost diameter
26.8 mm
Bottom bracket / shell
External Alum Cups
Equipment inspection checks 9 checks based on 4 archived component groups Open equipment checksClose equipment checks
0 of 9 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Answer Scythe Pro · Carbon, unicrown crown

Archived: Group: BMX Mix · Crankset: RL Microline 170mm, 38T teeth · Bottom bracket: External Alum Cups · Cassette: Redline · Chain: KMC Z33

Archived: Wheel size: 20" wheels · Rims: Sun Envy Lite, 32-hole · Hubs: Front: Redline Flight Sealed, Rear: Redline Flight Cassette Sealed · Front tire: Front: 20 x 1.6" Tioga PowerBlock 20, Rear: 20 x 1.4" Tioga PowerBlock 20

Controls and contact points

Archived: Headset: 1 1/8" threadless FSA Impact Integrated · Handlebar: Redline 26" · Stem: Redline Hollowpoint Aluminum · Seatpost: Pivotal alloy microadjust, 26.8mm diameter · Saddle: Tioga D-Spyder · Pedals: Redline Jr. Aluminum cage
