Velopedia Bicycle Archive

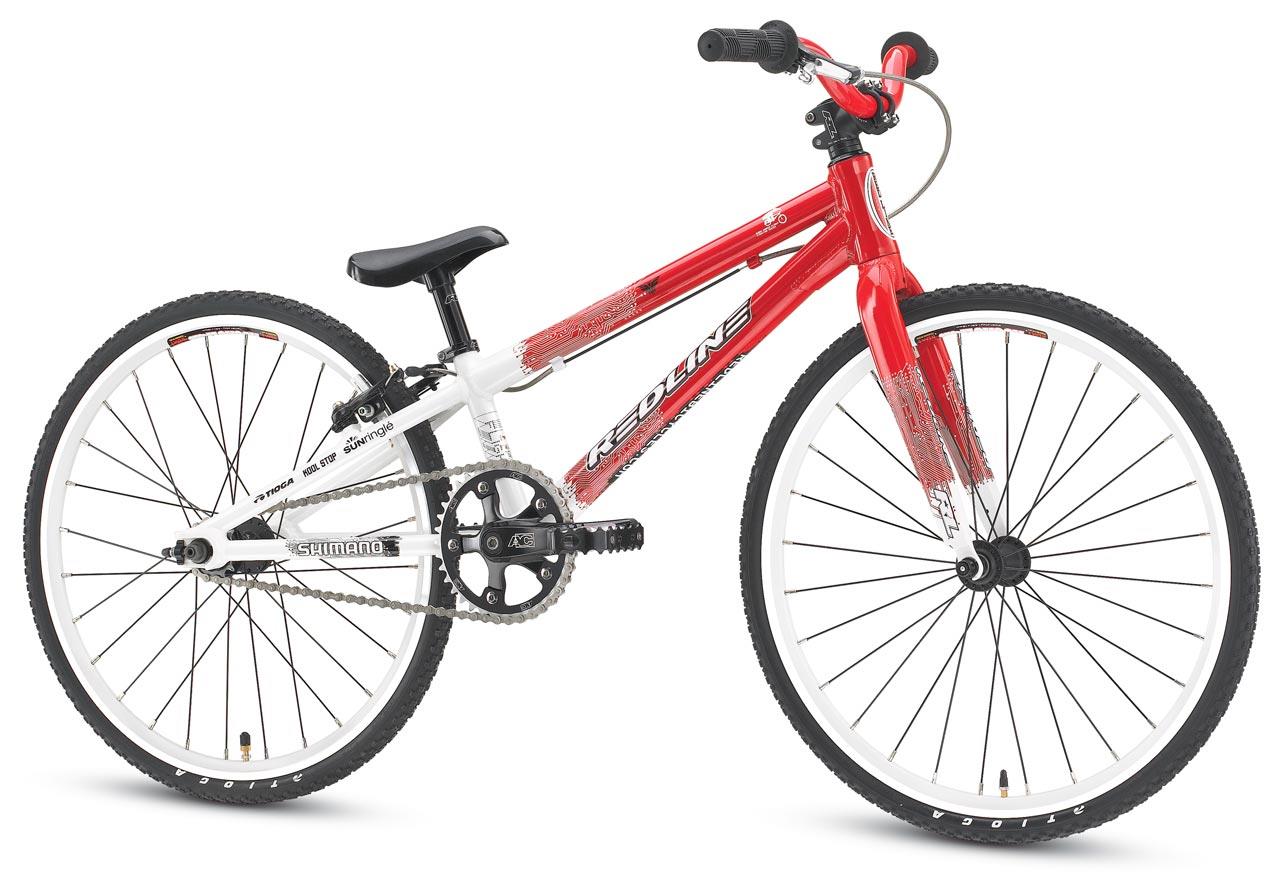

2009 Redline Flight Mini
BMX bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Sizes
- Mini
- Colors
- Red/White
- Weight
- 13.8
- Archive ID
- 15912
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Redline R6 Aluminum |
|---|
| Fork | Redline Mini/Junior |
|---|
| Fork Material | Aluminum, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | BMX |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | AC MiniMax ISIS, 37 teeth |
|---|
| Bottom Bracket | TH ISIS Euro Cartridge sealed, 113mm spindle |
|---|
| Cassette | Redline |
|---|
| Rear Cogs | 1-speed, 14 teeth |
|---|
| Chain | KMC Z30, 1/2 x 3/32" |
|---|
| Pedals | Redline Jr. Aluminum |
|---|
Brakes
| Brakes | Tektro 926AL V-Type rear brakes, Tektro 316A rear levers |
|---|
Cockpit & Contact Points
| Headset | 1" integrated |
|---|
| Handlebar | Redline Aluminum |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Redline Flight Microline Mini aluminum |
|---|
| Saddle | Redline Microline Mini |
|---|
| Seatpost | Integrated Aluminum Post, 22.2mm (7/8 inch) diameter |
|---|
Wheels & Tires
| Hubs | Front: Redline aluminum, Rear: Redline Cassette Aluminum |
|---|
| Rims | Sun Assault SL1, 28-hole |
|---|
| Spokes | Stainless steel, 15ga. (1.8mm) |
|---|
| Front Tire | 20 x 1 1/8" Primo Champion Slic |
|---|
| Wheel Size | 20" wheels |
|---|
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
