Velopedia Bicycle Archive

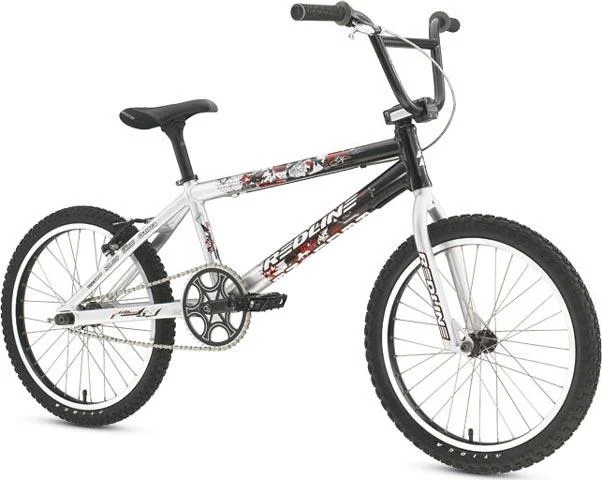

2008 Redline Flight Pro XXL
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- Pro XXL
- Colors
- Black/Polished/Red
- Weight
- 23
- Archive ID
- 13654
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | U6 aluminum |
| Fork | Redline Chromo Pro |
| Fork Material | Chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | BMX |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Redline Flight Tubular, Redline Flight Alu 3D CNC 44t teeth |
| Bottom Bracket | Redline Flight Euro sealed |
| Cassette | Redline |
| Rear Cogs | 1-speed, 13, 14, 15, 16, 17, 18 teeth |
| Chain | KMC Z30, 1/2 x 3/32" |
| Pedals | Redline Aluminum |
Brakes
| Brakes | Tektro BX-25 V-Type rear brakes, Tektro BX2 rear levers |
|---|
Cockpit & Contact Points
| Headset | FSA Impact |
|---|---|
| Handlebar | Redline Chromo |
| Handlebar Extensions | Not included |
| Stem | Redline Flight CNC |
| Saddle | Redline Flight Pivotal |
| Seatpost | Pivotal Micro Adjust |
Wheels & Tires
| Hubs | Front: Redline Aluminum Sealed, Rear: Redline Cassette Aluminum |
|---|---|
| Rims | Sun Rhyno Lite XL, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Front Tire | Front: 20 x 2.125" Tioga Comp III, Rear: 20 x 1.75" Tioga Comp III |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
