Velopedia Bicycle Archive
2005 Redline Flight Pro XL
Original specifications: 20" wheels · 23.8 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #10495- Model year
- 2005
- Category
- BMX
- Original MSRP
- $549.99
- Colors
- White
- Weight
- 23.8 lb
- In this record
- 23 specifications · archived image · original MSRP

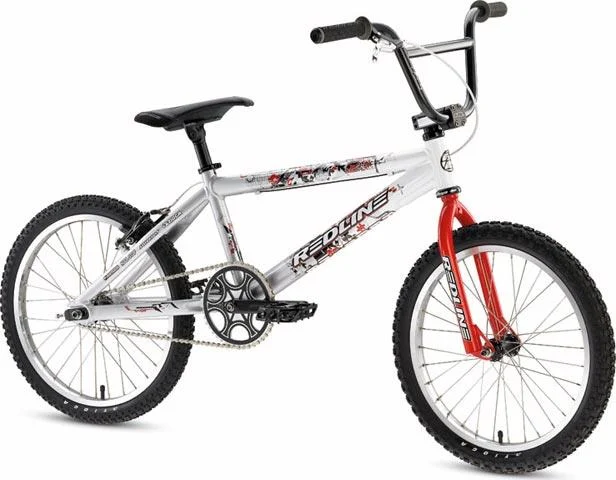

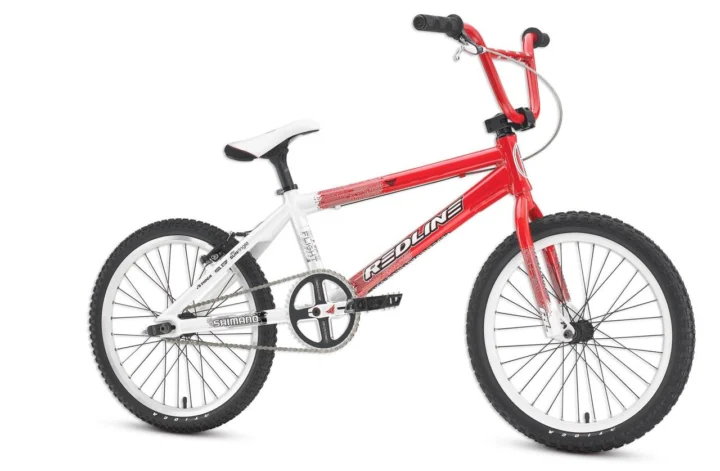

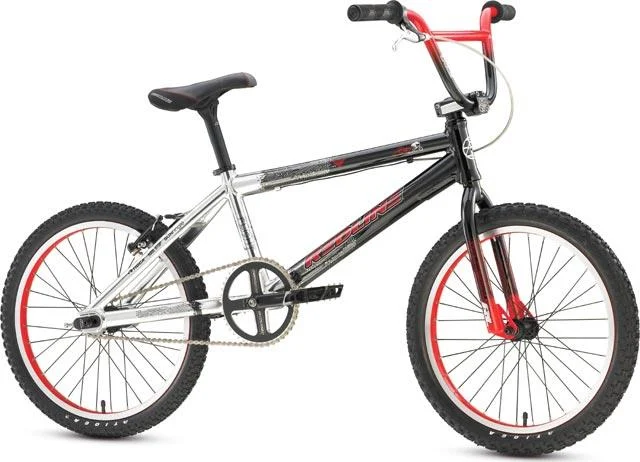

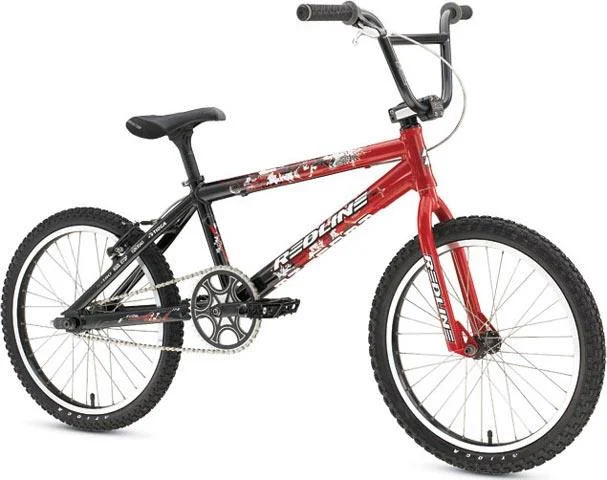

Model history 7 other years
Browse other years
Compare side by side
Identification clues
2005 archived details
- Published colors
- White
- Frame
- U6 Superlight Aluminum
- Original equipment
- N/A
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildU6 Superlight Aluminum · 20" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | U6 Superlight Aluminum |
| Fork | Redline |
| Fork Material | Chromoly, unicrown crown |
Drivetrain
| Crankset | Redline Flight Tubular CrMo 3-piece, 44 teeth |
|---|---|
| Bottom Bracket | Redline FlightSealed Bearing |
| BB Shell Width | 68mm English |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z30, 1/2 x 3/32" |
| Pedals | Redline Magnesium |
Brakes
| Brakes | Promax SBV-197NC rear brakes, Promax levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Sky Pilot |
|---|---|
| Handlebar | Redline 2-piece CrMo |
| Stem | Redline Flight CNC |
| Saddle | Redline Flight |
| Seatpost | Aluminum micro-adjust, 26.8mm diameter |
Wheels & Tires
| Hubs | Front: Redline aluminum, Rear: Redline aluminum cassette |
|---|---|
| Rims | Sun Rims Rhyno Lite XL, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 20 x 2.125" Tioga Comp III |
| Rear Tire | 20 x 1.75" Tioga Comp III |
| Wheel Size | 20" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
1/2 x 3/32"
26.8mm diameter
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Front: 20 x 2.125" Tioga Comp III, Rear: 20 x 1.75" Tioga Comp III
- Drivetrain
- 1-speed
- Seatpost diameter
- 26.8 mm
- Bottom bracket / shell
- Redline FlightSealed Bearing · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Redline · Chromoly, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Crankset: Redline Flight Tubular CrMo 3-piece, 44 teeth · Bottom bracket: Redline FlightSealed Bearing · Rear cogs: 1-speed, 16 teeth · Chain: KMC Z30, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Promax SBV-197NC rear brakes, Promax levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 20" wheels · Rims: Sun Rims Rhyno Lite XL, 32-hole · Hubs: Front: Redline aluminum, Rear: Redline aluminum cassette · Front tire: Front: 20 x 2.125" Tioga Comp III, Rear: 20 x 1.75" Tioga Comp III
Controls and contact points
Archived: Headset: 1 1/8" threadless FSA Sky Pilot · Handlebar: Redline 2-piece CrMo · Stem: Redline Flight CNC · Seatpost: Aluminum micro-adjust, 26.8mm diameter · Saddle: Redline Flight · Pedals: Redline Magnesium
