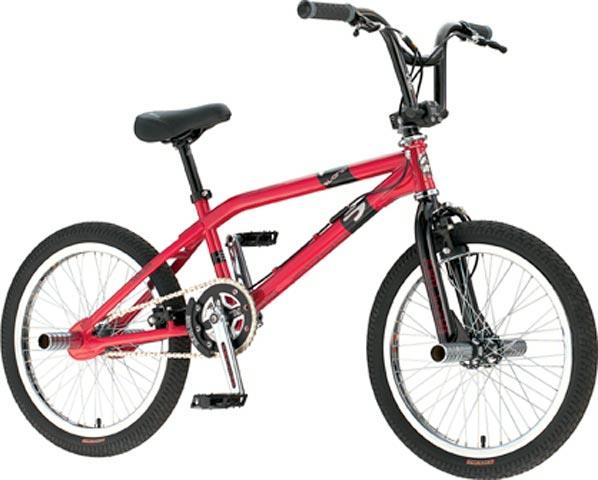

2004 Redline Slant
Freestyle/jumping bicycle from the Velopedia specification archive.
- Original MSRP
- $449.99
- Sizes
- Pro
- Colors
- Red
- Archive ID
- 89934
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Chromoly |
|---|
| Fork | Redline Monster |
|---|
| Fork Material | 4130 chromoly, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | N/A |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | Redline Proline 3-piece 180mm, 39 teeth |
|---|
| Bottom Bracket | Sealed cartridge |
|---|
| BB Shell Width | 68mm American |
|---|
| Rear Cogs | 1-speed, 14 teeth |
|---|
| Chain | KMC Z510, 1/2 x 3/32" |
|---|
| Pedals | Redline aluminum |
|---|
Brakes
| Brakes | Tektro FX-11 U-brake brakes, Tektro aluminum levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA The Pig |
|---|
| Handlebar | Redline Blvd |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Redline Proline |
|---|
| Saddle | Redline Blvd |
|---|
| Seatpost | Aluminum micro-adjust, 25.4mm diameter |
|---|
Wheels & Tires
| Hubs | Aluminum, 14mm axle |
|---|
| Rims | Alex Supra A, 48-hole |
|---|
| Spokes | 14ga. (2.0mm) straight gauge |
|---|
| Spoke Nipples | Brass nipples |
|---|
| Front Tire | 20 x 1.95" Freaky-V |
|---|
| Wheel Size | 20" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
