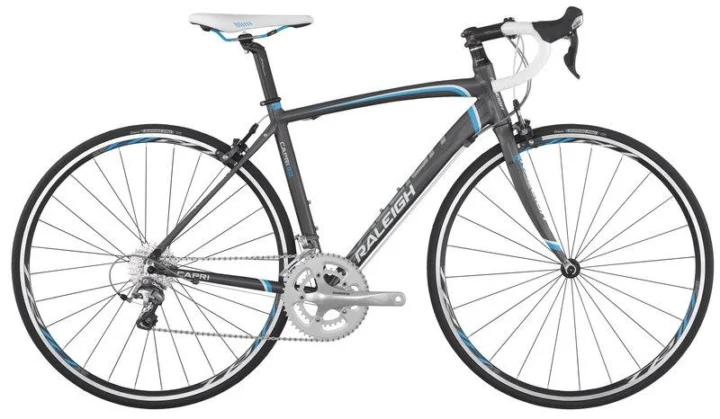

2014 Raleigh Capri 3

Original specifications.

Share owner experience

At a glance

Archive #9257571

Model year: 2014
Original MSRP: $1,300.00
Sizes: 48cm, 50cm, 52cm, 54cm, 56cm
Colors: Black/Lime
In this record: 16 specifications · archived image · original MSRP

Model history 1 other year

Browse other years

Compare side by side

Identification clues

2014 archived details

Published colors: Black/Lime
Frame: 6061 Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build6061 Aluminum

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

48cm50cm52cm54cm56cm

Published colors

Black/Lime

Frameset

Frame Material	6061 Aluminum
Fork	Carbon

Drivetrain

Shifters	Shimano 105
Front Derailleur	Shimano 105
Rear Derailleur	Shimano 105
Crankset	FSA Gossamer MegaExo 34/50t
Bottom Bracket	FSA MegaExo
Cassette	Shimano 10spd (12-30t)
Chain	KMC X10

Brakes

Brakes	Tektro Quartz Dual Pivot

Cockpit & Contact Points

Headset	1 1/8" Integrated
Handlebar	Raleigh 200 Series
Stem	Raleigh 200 Series
Saddle	Prologo Kappa EVO DEA
Seatpost	Raleigh 200 Series 27.2x300mm

Wheels & Tires

Front Tire	Vittoria Rubino Slick 700x25c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes50/34T · 12–30T · 10-speed

Lowest1.13:1 Highest4.17:1 Total range368%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

Vittoria Rubino Slick 700x25c

Search Amazon Search eBay

Retailer offers

Vittoria Zaffiro Pro V Clincher Tire Black, 700x25

700x25c

Replacement option

Competitive Cyclist ↗$31.21

Seatpost · Original

Raleigh 200 Series 27.2x300mm

Search Amazon Search eBay

Retailer offers

Race Face Ride XC Seatpost Black, 27.2x375mm

Replacement option

Competitive Cyclist ↗$38.99

Backcountry ↗$38.99

Chain · Original

KMC X10

Search Amazon Search eBay

More parts (7)Fewer parts

Cassette · Original

Shimano 10spd (12-30t)

Search Amazon Search eBay

Bottom bracket · Original

FSA MegaExo

Search Amazon Search eBay

Saddle · Original

Prologo Kappa EVO DEA

Search Amazon Search eBay

Crankset · Original

FSA Gossamer MegaExo 34/50t

Search Amazon Search eBay

Front derailleur · Original

Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search Amazon Search eBay

Rear derailleur · Original

Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search Amazon Search eBay

Shifters · Original

Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Vittoria Rubino Slick 700x25c
Drivetrain: 10-speed
Seatpost diameter: 27.2 mm
Bottom bracket / shell: FSA MegaExo

Equipment inspection checks 8 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: 6061 Aluminum · Fork: Carbon

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Shifters: Shimano 105 · Front derailleur: Shimano 105 · Rear derailleur: Shimano 105 · Crankset: FSA Gossamer MegaExo 34/50t · Bottom bracket: FSA MegaExo · Cassette: Shimano 10spd (12-30t) · Chain: KMC X10

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Tektro Quartz Dual Pivot

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Controls and contact points

Archived: Headset: 1 1/8" Integrated · Handlebar: Raleigh 200 Series · Stem: Raleigh 200 Series · Seatpost: Raleigh 200 Series 27.2x300mm · Saddle: Prologo Kappa EVO DEA

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
