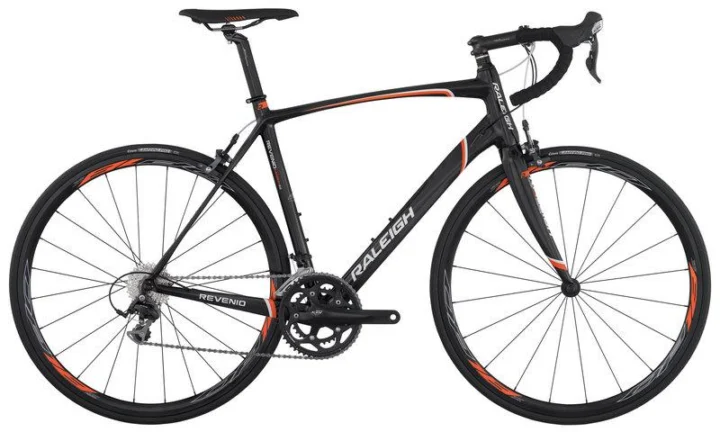

2013 Raleigh Revenio Carbon 2.0

Original specifications.

Share owner experience

At a glance

Archive #9228474

Model year: 2013
Category: Road
Original MSRP: $2,250.00
Sizes: 49cm, 52cm, 54cm, 56cm, 59cm
Colors: Carbon
In this record: 18 specifications · archived image · original MSRP

Model history 1 other year

Browse other years

Compare side by side

Identification clues

2013 archived details

Published colors: Carbon
Frame: Direct Connect T700 Carbon

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildDirect Connect T700 Carbon

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

49cm52cm54cm56cm59cm

Published colors

Carbon

Frameset

Frame Material	Direct Connect T700 Carbon
Fork	Carbon Fiber

Drivetrain

Shifters	Shimano 105
Front Derailleur	Shimano 105
Rear Derailleur	Shimano 105
Crankset	Shimano 105 50/34t
Bottom Bracket	Shimano Hollowtech II
Cassette	Shimano 105 11x28t
Rear Cogs	2x10 Speeds
Chain	Shimano 105
Pedals	Nylon Platform

Brakes

Brakes	Shimano 105

Cockpit & Contact Points

Headset	1 1/8" Top 1.5" Bottom
Handlebar	Avenir 200 Series Drop
Stem	Avenir 200 Series
Saddle	Avenir RM3
Seatpost	Avenir 200 Series

Wheels & Tires

Front Tire	Vittoria Zaffiro 700x23

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes50/34T · 11–28T

Lowest1.21:1 Highest4.55:1 Total range374%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

Vittoria Zaffiro 700x23

Search Amazon Search eBay

Retailer offers

Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23

700x23c

Replacement option

Competitive Cyclist ↗$41.10

Chain · Original

Shimano 105

Search Amazon Search eBay

Cassette · Original

Shimano 105 11x28t

Search Amazon Search eBay

More parts (5)Fewer parts

Bottom bracket · Original

Shimano Hollowtech II

Search Amazon Search eBay

Crankset · Original

Shimano 105 50/34t

Search eBay

Front derailleur · Original

Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search eBay

Rear derailleur · Original

Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search eBay

Shifters · Original

Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Vittoria Zaffiro 700x23
Bottom bracket / shell: Shimano Hollowtech II

Equipment inspection checks 8 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: Direct Connect T700 Carbon · Fork: Carbon Fiber

Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Shifters: Shimano 105 · Front derailleur: Shimano 105 · Rear derailleur: Shimano 105 · Crankset: Shimano 105 50/34t · Bottom bracket: Shimano Hollowtech II · Cassette: Shimano 105 11x28t · Rear cogs: 2x10 Speeds · Chain: Shimano 105

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Shimano 105

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Controls and contact points

Archived: Headset: 1 1/8" Top 1.5" Bottom · Handlebar: Avenir 200 Series Drop · Stem: Avenir 200 Series · Seatpost: Avenir 200 Series · Saddle: Avenir RM3 · Pedals: Nylon Platform

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
