Velopedia Bicycle Archive

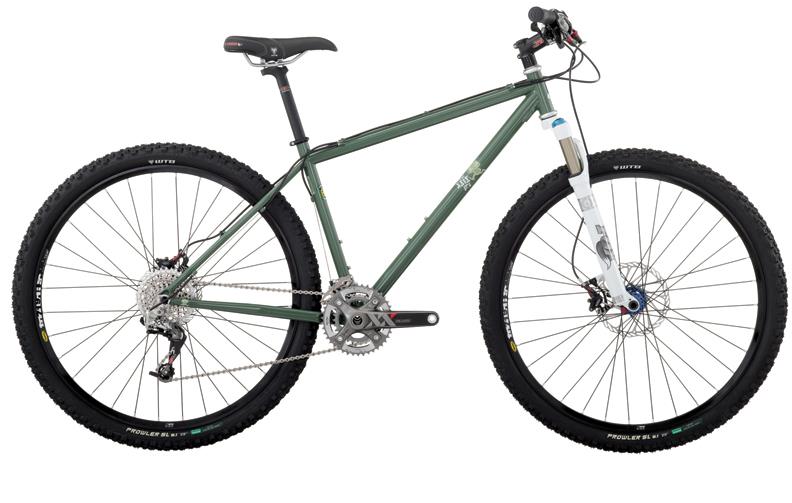

2010 Raleigh XXIX Pro
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- Small, medium, large, xlarge
- Colors
- Dark Green
- Archive ID
- 21028
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Reynolds 853 Main/Chromo Rear Triangle |
| Fork | Fox F29 FIT RLC w/15mm Thru-Axle, 80mm |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | SRAM X.X mix |
|---|---|
| Shifters | Sram X.X |
| Front Derailleur | Sram X.X |
| Rear Derailleur | Sram X.X |
| Crankset | SRAM XX, 28/42 teeth |
| Bottom Bracket | TruVativ GXP |
| Cassette | SRAM CS10 |
| Rear Cogs | 10-speed, 11 - 36 teeth |
| Chain | SRAM PC-1090 |
| Pedals | Avenir ATB Resin Platform |
Brakes
| Brakes | Avid Elixer CR Carbon w/185mm rotor front/Avid Elixer CR Carbon w/160mm rotor rear brakes, Avid Elixer CR Carbon levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Alloy Cup/Sealed Cartridge Bearing |
|---|---|
| Handlebar | Easton Monkey Lite XC |
| Handlebar Extensions | Not included |
| Stem | Easton EA90 31.8 |
| Saddle | WTB Laser V Comp |
| Seatpost | Easton EA70, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Sealed Alloy 15mm Thru-Axle, Rear: Sealed Alloy |
|---|---|
| Rims | Mavic TN 719, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Spoke Nipples | Alloy |
| Front Tire | 29 x 2.10" WTb Prowler SL |
| Wheel Size | 29" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
