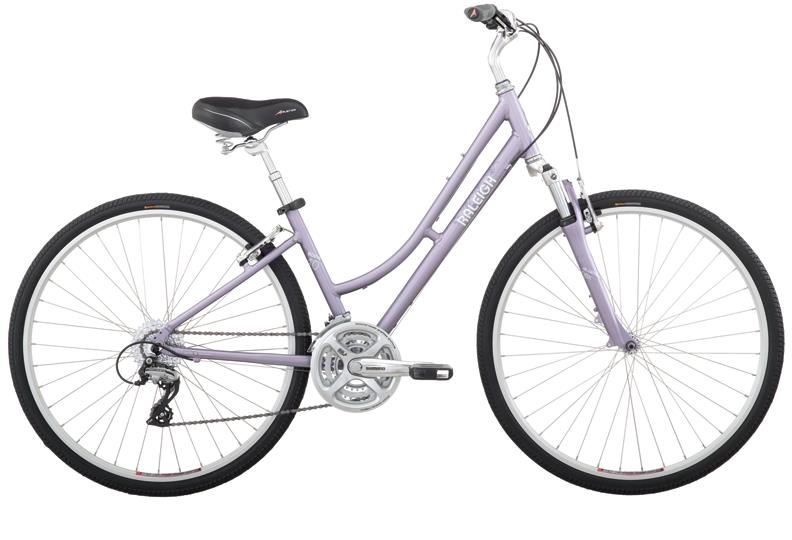

2010 Raleigh Route 4.0 Women's
Hybrid bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 13", 15", 17"
- Colors
- Pearl Light Blue, Light Purple
- Archive ID
- 21013
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 Aluminum |
| Fork | SR Suntour NEX-4110, 63mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Hybrid Mix |
|---|---|
| Shifters | Shimano EF-50 |
| Front Derailleur | Shimano C50 |
| Rear Derailleur | Shimano Acera |
| Crankset | Shimano FC-191, 28/38/48 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | SRAM PG-830 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC HG40 |
| Pedals | Avenir Comfort Platform |
Brakes
| Brakes | Tektro V-brake brakes, Shimano EF-50 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded |
|---|---|
| Handlebar | Steel 50mm Rise x 630mm |
| Handlebar Extensions | Not included |
| Stem | Alloy Adjustable Quill |
| Saddle | Avenir Deluxe Comfort |
| Seatpost | Alloy Micro Adjust Bootless Suspension, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Joytech Alloy QR, Rear: Shimano RM30 |
|---|---|
| Rims | Weinmann XC-260, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 700 x 40c Kenda K-192 w/K-shield |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
