Lowest0.82:1
Highest3.43:1
Total range416%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×40; rear size isn’t listed.
Velopedia Bicycle Archive

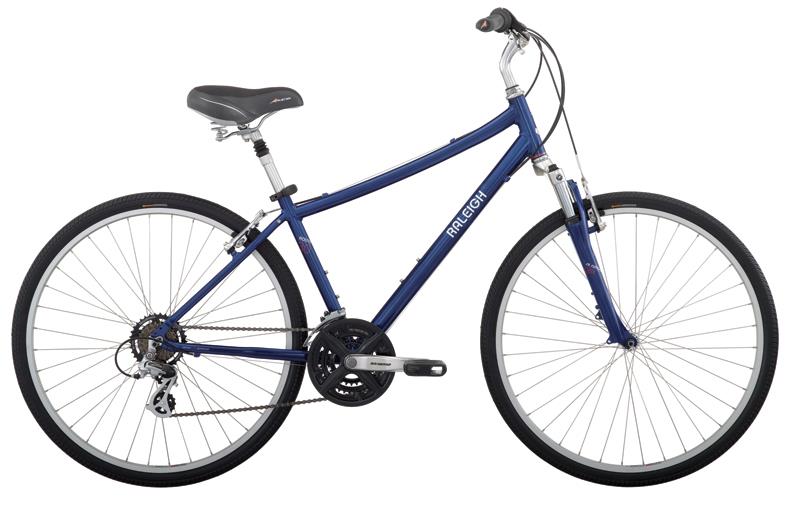

2010 Raleigh Route 3.0
Original specifications: Shimano Altus · 7-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #21015- Model year
- 2010
- Category
- Hybrid
- Sizes
- 15", 17", 19"
- Colors
- Black Metallic, Navy Blue Metallic
- In this record
- 26 specifications · archived image
Model history 5 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Black Metallic, Navy Blue Metallic
- Frame
- Atomic 13 Aluminum
- Original equipment
- Hybrid Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAtomic 13 Aluminum · Hybrid Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 Aluminum |
| Fork | SR Suntour NEX-4110, 63mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Hybrid Mix |
|---|---|
| Shifters | Shimano SL-RS32 Revo |
| Front Derailleur | Shimano C50 |
| Rear Derailleur | Shimano Altus |
| Crankset | SR Suntour XCC208, 28/38/48 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | Shimano MF-TZ31 |
| Rear Cogs | 7-speed, 14 - 34 teeth |
| Chain | KMC Z51 |
| Pedals | Avenir Comfort Platform |
Brakes
| Brakes | Tektro V-brake brakes, Tektro levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded |
|---|---|
| Handlebar | Steel 50mm Rise x 630mm |
| Handlebar Extensions | Not included |
| Stem | Alloy Adjustable Quill |
| Saddle | Avenir Comfort |
| Seatpost | Alloy Micro adjust Suspension, 27.2mm diameter |
Wheels & Tires
| Hubs | Joytech Alloy QR |
|---|---|
| Rims | Weinmann CN520, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 700 x 40c Kenda K-192 w/K-shield |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 40c Kenda K-192 w/K-shield
Retailer offers
WTB Vulpine Tire - Tubeless Black, 700x40mm, TCS, Light/Fast Rolling, 60tpi, Dual DNA
700x40c, TCS, Light/Fast Rolling, 60tpi, Dual DNA
Replacement option
Other replacement options (1)
Challenge Getaway Race Vulcanized Tubeless Tire Black, 700x40
700x40c
Replacement option
Kenda K 192 with K shield on eBaySponsored links
Alloy Micro adjust Suspension
27.2mm diameter
Retailer offers
Cane Creek Thudbuster ST Seatpost Black, 27.2mm
Replacement option
More parts (4)Fewer parts
Shimano MF-TZ31
Tektro V-brake brakes
Tektro levers
Shimano Altus
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 40c Kenda K-192 w/K-shield
- Drivetrain
- 7-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Sealed cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: SR Suntour NEX-4110, 63mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour NEX-4110, 63mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Hybrid Mix · Shifters: Shimano SL-RS32 Revo · Front derailleur: Shimano C50 · Rear derailleur: Shimano Altus · Crankset: SR Suntour XCC208, 28/38/48 teeth · Bottom bracket: Sealed cartridge · Cassette: Shimano MF-TZ31 · Rear cogs: 7-speed, 14 - 34 teeth · Chain: KMC Z51
Brakes
Inspect the brakes →Archived: Brakes: Tektro V-brake brakes, Tektro levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Weinmann CN520, 36-hole · Hubs: Joytech Alloy QR · Front tire: 700 x 40c Kenda K-192 w/K-shield
Controls and contact points
Archived: Headset: 1 1/8" threaded · Handlebar: Steel 50mm Rise x 630mm · Stem: Alloy Adjustable Quill · Seatpost: Alloy Micro adjust Suspension, 27.2mm diameter · Saddle: Avenir Comfort · Pedals: Avenir Comfort Platform
