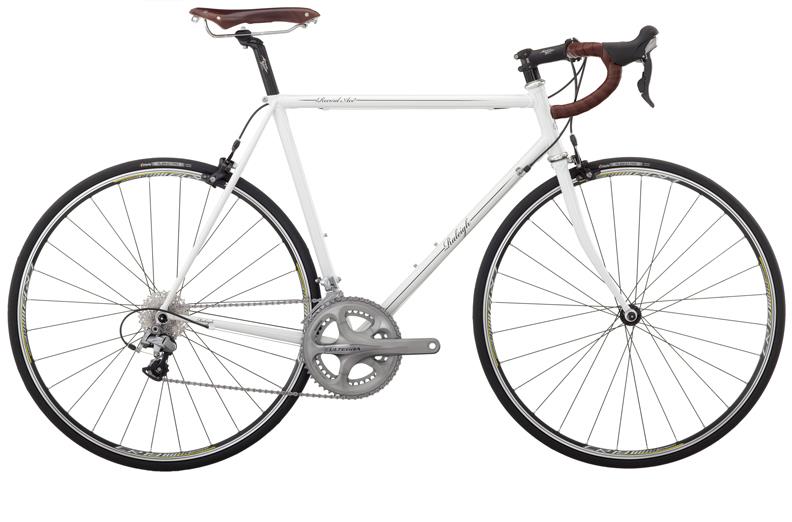

2010 Raleigh Record Ace

Original specifications: Shimano Ultegra · 10-speed rear derailleur · 700c wheels.

Share owner experience

At a glance

Archive #20981

Model year: 2010
Category: Road
Sizes: 53cm sm, 55cm sm/md, 57cm md/lg, 59cm lg
Colors: White Metallic
In this record: 26 specifications · archived image

Model history 2 other years

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors: White Metallic
Frame: Reynolds 520
Original equipment: Shimano Ultegra Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildReynolds 520 · Shimano Ultegra Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

53cm sm55cm sm/md57cm md/lg59cm lg

Published colors

White Metallic

View 5 archived size/color combinations

Size	Color
53cm sm	White Metallic
55cm sm/md	White Metallic
57cm md/lg	White Metallic
59cm lg	White Metallic
—	White Metallic

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	Lugged
Frame Material	Reynolds 520
Fork Material	4130 chromoly, Lugged crown

Drivetrain

Component Group	Shimano Ultegra Mix
Shifters	Shimano Ultegra STI
Front Derailleur	Shimano Ultegra
Rear Derailleur	Shimano Ultegra
Crankset	Shimano Ultegra
Bottom Bracket	Shimano External
Cassette	Shimano Ultegra
Rear Cogs	10-speed, 12 - 27 teeth
Chain	Shimano
Pedals	Steel Clips w/Leather Straps

Brakes

Brakes	Tektro dual pivot brakes, Shimano Ultegra levers

Cockpit & Contact Points

Headset	1 1/8" threadless Alloy Cup/Sealed Cartridge Bearing
Handlebar	FSA Omega Compact
Handlebar Extensions	Not included
Stem	Avenir 200
Saddle	Brooks Swallow w/cromo rails
Seatpost	Avenir 200 Series, 27.2mm diameter

Wheels & Tires

Hubs	Joytech Alloy Sealed Cartridge
Rims	Weinmann CR19 Double Wall, 28-hole
Spokes	Stainless, 14ga. (2.0mm)
Spoke Nipples	Alloy
Front Tire	700 x 23c Vittoria Rubino Pro
Wheel Size	700c wheels

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

700 x 23c Vittoria Rubino Pro

Search Amazon Search eBay

Retailer offers

Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23

700x23c

Model match

Competitive Cyclist ↗$41.10

Other replacement options (1)

Vittoria Rubino Pro G2.0 Clincher Tire Set Black, 700x23

700x23c

Model match

Competitive Cyclist ↗$73.99

Seatpost · Original

Avenir 200 Series

27.2mm diameter

Search Amazon Search eBay

Retailer offers

Race Face Ride XC Seatpost Black, 27.2x375mm

Replacement option

Competitive Cyclist ↗$38.99

Backcountry ↗$38.99

Saddle · Original

Brooks Swallow w/cromo rails

Search eBay

More parts (5)Fewer parts

Crankset · Original

Shimano Ultegra

Search eBay

Front derailleur · Original

Shimano Ultegra Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search eBay

Rear derailleur · Original

Shimano Ultegra Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search eBay

Shifters · Original

Shimano Ultegra STI Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search eBay

Handlebar · Original

FSA Omega Compact

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 700 x 23c Vittoria Rubino Pro
Drivetrain: 10-speed
Seatpost diameter: 27.2 mm
Bottom bracket / shell: Shimano External

Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: Lugged · Fork: · 4130 chromoly, Lugged crown

Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.

Drivetrain

Check drivetrain wear →

Archived: Group: Shimano Ultegra Mix · Shifters: Shimano Ultegra STI · Front derailleur: Shimano Ultegra · Rear derailleur: Shimano Ultegra · Crankset: Shimano Ultegra · Bottom bracket: Shimano External · Cassette: Shimano Ultegra · Rear cogs: 10-speed, 12 - 27 teeth · Chain: Shimano

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Tektro dual pivot brakes, Shimano Ultegra levers

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 700c wheels · Rims: Weinmann CR19 Double Wall, 28-hole · Hubs: Joytech Alloy Sealed Cartridge · Front tire: 700 x 23c Vittoria Rubino Pro

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1 1/8" threadless Alloy Cup/Sealed Cartridge Bearing · Handlebar: FSA Omega Compact · Stem: Avenir 200 · Seatpost: Avenir 200 Series, 27.2mm diameter · Saddle: Brooks Swallow w/cromo rails · Pedals: Steel Clips w/Leather Straps

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
