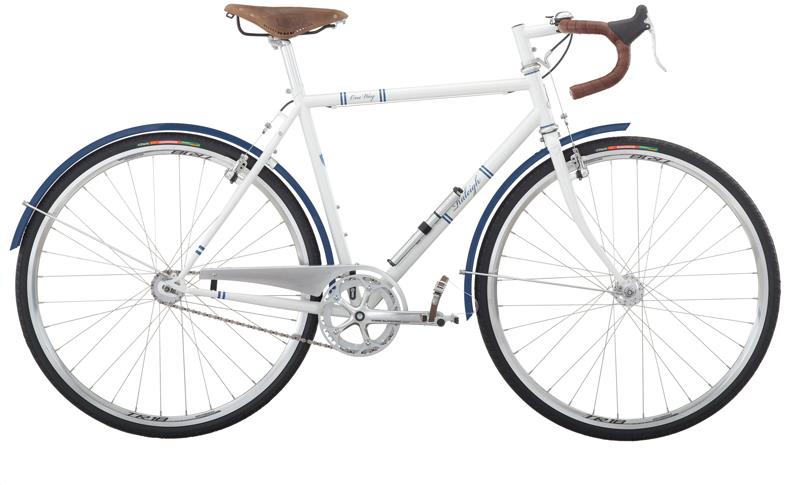

2010 Raleigh One way

Original specifications: Single Speed Mix drivetrain · 700c wheels.

Share owner experience

At a glance

Archive #20984

Model year: 2010
Category: City & Commuter
Sizes: 50cm xxs, 53cm sm, 55cm sm/md, 57cm md/lg, 59cm lg
Colors: White/Navy Blue
In this record: 23 specifications · archived image

Model history 4 other years

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors: White/Navy Blue
Frame: Reynolds 520
Original equipment: Single Speed Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildReynolds 520 · Single Speed Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

50cm xxs53cm sm55cm sm/md57cm md/lg59cm lg

Published colors

White/Navy Blue

View 5 archived size/color combinations

Size	Color
50cm xxs	White/Navy Blue
53cm sm	White/Navy Blue
55cm sm/md	White/Navy Blue
57cm md/lg	White/Navy Blue
59cm lg	White/Navy Blue

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	TIG-welded
Frame Material	Reynolds 520
Fork Material	4130 chromoly, Lugged crown

Drivetrain

Component Group	Single Speed Mix
Crankset	SR Suntour Single Speed, 42 teeth
Bottom Bracket	Sealed cartridge
Cassette	SRAM
Rear Cogs	1-speed, 16 teeth
Chain	KMC Z82
Pedals	Steel Clips w/Leather Straps

Brakes

Brakes	Tektro Oryx Canti brakes, Tektro R200 Aero Road levers

Cockpit & Contact Points

Headset	1 1/8" threadless Alloy Cup/Sealed Cartridge Bearing
Handlebar	Alloy Road
Handlebar Extensions	Not included
Stem	Alloy Forged 2-bolt
Saddle	Brooks B-17 Aged
Seatpost	Alloy Micro Adjust, 27.2mm diameter

Wheels & Tires

Hubs	Front: Alloy Sealed Track, Rear: SRAM Torpedo
Rims	Weinmann TR18 Double Wall, 32-hole
Spokes	Stainless, 14ga. (2.0mm)
Front Tire	700 x 35c Vittoria Randonneur Cross w/Reflective Side
Rear Tire	700 x 35c Vittoria ZaffiroVittoria Randonneur Cross w/Reflective Side
Wheel Size	700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

Published build42T · 16T · 1-speed

Ratio2.63:1

Estimated speed At 90 RPM Gear19.2 mph

Rear tire: 700C×35.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

700 x 35c Vittoria Randonneur Cross w/Reflective Side

Search Amazon Search eBay

Retailer offers

Vittoria Randonneur Reflect Tire Black, 700x35

700x35c

Replacement option

Competitive Cyclist ↗$34.99

Other replacement options (1)

Challenge Strada Pro Tubeless Tire Black, 700x35

700x35c

Replacement option

Backcountry ↗$89.99

Seatpost · Original

Alloy Micro Adjust

27.2mm diameter

Search Amazon Search eBay

Retailer offers

Race Face Ride XC Seatpost Black, 27.2x375mm

Replacement option

Competitive Cyclist ↗$38.99

Backcountry ↗$38.99

Chain · Original

KMC Z82

Search Amazon Search eBay

More parts (2)Fewer parts

Rear tire · Original

700 x 35c Vittoria ZaffiroVittoria Randonneur Cross w/Reflective Side

Search Amazon Search eBay

Saddle · Original

Brooks B-17 Aged

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Front: 700 x 35c Vittoria Randonneur Cross w/Reflective Side, Rear: 700 x 35c Vittoria ZaffiroVittoria Randonneur Cross w/Reflective Side
Drivetrain: 1-speed
Seatpost diameter: 27.2 mm
Bottom bracket / shell: Sealed cartridge

Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: · 4130 chromoly, Lugged crown

Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.

Drivetrain

Check drivetrain wear →

Archived: Group: Single Speed Mix · Crankset: SR Suntour Single Speed, 42 teeth · Bottom bracket: Sealed cartridge · Cassette: SRAM · Rear cogs: 1-speed, 16 teeth · Chain: KMC Z82

Check chain tension and chainline, rotate the drivetrain through a full revolution and confirm the rear axle or tensioning hardware cannot slip.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Tektro Oryx Canti brakes, Tektro R200 Aero Road levers

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 700c wheels · Rims: Weinmann TR18 Double Wall, 32-hole · Hubs: Front: Alloy Sealed Track, Rear: SRAM Torpedo · Front tire: Front: 700 x 35c Vittoria Randonneur Cross w/Reflective Side, Rear: 700 x 35c Vittoria ZaffiroVittoria Randonneur Cross w/Reflective Side

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1 1/8" threadless Alloy Cup/Sealed Cartridge Bearing · Handlebar: Alloy Road · Stem: Alloy Forged 2-bolt · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Brooks B-17 Aged · Pedals: Steel Clips w/Leather Straps

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
