Velopedia Bicycle Archive

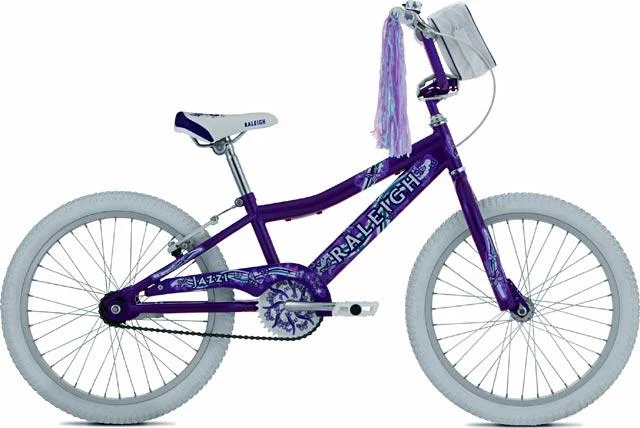

2006 Raleigh Jazzi

Original specifications: 20" wheels.

Share owner experience

At a glance

Archive #10958

Model year: 2006
Category: Kids
Original MSRP: $126.00
Sizes: 20" Girls
Colors: Aqua, Purple
In this record: 21 specifications · archived image · original MSRP

Model history 12 other years

Browse other years

Compare side by side

Identification clues

2006 archived details

Published colors: Aqua, Purple
Frame: Steel

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildSteel · 20" wheels

Historical catalog variants

Archived sizes and colors

2 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

20" Girls

Published colors

AquaPurple

View 2 archived size/color combinations

Size	Color
20" Girls	Aqua
20" Girls	Purple

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	TIG-welded
Frame Material	Steel
Fork	Raleigh
Fork Material	Steel, unicrown crown

Drivetrain

Crankset	Steel One Piece, 40 teeth
Bottom Bracket	8pc Loose Ball
Rear Cogs	1-speed, 18 teeth
Chain	KMC Z410
Pedals	Resin platform

Brakes

Brakes	Aluminum linear-pull brakes, aluminum levers

Cockpit & Contact Points

Headset	1" threaded
Handlebar	Steel BMX Style
Handlebar Extensions	Not included
Stem	4-bolt Alloy/Steel Quill
Saddle	Jr. BMX padded
Seatpost	Steel pillar, 25.4mm diameter

Wheels & Tires

Hubs	Front: Nutted 36h, Rear: Nutted 36h Coaster
Rims	Aluminum, 36-hole
Spokes	UCP, 14ga. (2.0mm) straight gauge
Front Tire	20 x 2.125" Street Style
Wheel Size	20" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

Published build40T · 18T · 1-speed

Ratio2.22:1

Estimated speed At 90 RPM Gear12.0 mph

Uses front tire 20×2.125; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

20 x 2.125" Street Style Replacement search: 20x2.125 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

Brake pads · Original

Aluminum linear-pull brakes

aluminum levers

Search Amazon Search eBay

Seatpost · Original

Steel pillar

25.4mm diameter

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 20 x 2.125" Street Style
Drivetrain: 1-speed
Seatpost diameter: 25.4 mm
Bottom bracket / shell: 8pc Loose Ball
