Lowest0.82:1
Highest4.36:1
Total range530%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×1.95; rear size isn’t listed.
Velopedia Bicycle Archive
2005 Raleigh M20
Original specifications: Mountain Mix drivetrain · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #10519- Model year
- 2005
- Category
- Mountain
- In this record

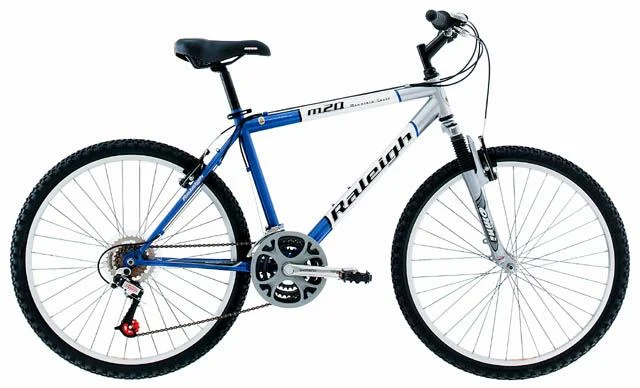

- 25 specifications · archived image
Model history 9 other years
Browse other years
Compare side by side
Identification clues
2005 archived details
- Frame
- Atomic 13 aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAtomic 13 aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 aluminum |
| Fork | SR Suntour SR M2000, 63mm |
| Fork Material | Aluminum, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Revo RS-31 |
| Front Derailleur | Shimano FD-TY32 |
| Rear Derailleur | Shimano RD-TX-30 |
| Crankset | Shimano FC-TY33, 28/38/48 teeth |
| Bottom Bracket | Sealed cartridge |
| Rear Cogs | 7-speed, 11 - 34 teeth |
| Chain | KMC Z51, 1/2 x 3/32" |
| Pedals | Resin platform |
Brakes
| Brakes | Tektro 845AL brakes, Tektro levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless |
|---|---|
| Handlebar | Steel |
| Handlebar Extensions | Not included |
| Stem | Aluminum/steel |
| Saddle | Avenir ATB |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Joytech aluminum QR |
|---|---|
| Rims | Alex R-1000, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 26 x 1.95" Kenda K-850 |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
26 x 1.95" Kenda K-850
Replacement search: 26x1.95 bicycle tire Before ordering: Check rim type and tire clearance.
Shimano FC-TY33
28/38/48 teeth
More parts (3)Fewer parts
Shimano RD-TX-30
Alex R-1000
36-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 1.95" Kenda K-850
- Drivetrain
- 7-speed
- Bottom bracket / shell
- Sealed cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: SR Suntour SR M2000, 63mm · Aluminum, single crown
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour SR M2000, 63mm
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Revo RS-31 · Front derailleur: Shimano FD-TY32 · Rear derailleur: Shimano RD-TX-30 · Crankset: Shimano FC-TY33, 28/38/48 teeth · Bottom bracket: Sealed cartridge · Rear cogs: 7-speed, 11 - 34 teeth · Chain: KMC Z51, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Tektro 845AL brakes, Tektro levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex R-1000, 36-hole · Hubs: Joytech aluminum QR · Front tire: 26 x 1.95" Kenda K-850
Controls and contact points
Archived: Headset: 1 1/8" threadless · Handlebar: Steel · Stem: Aluminum/steel · Seatpost: Aluminum micro-adjust · Saddle: Avenir ATB · Pedals: Resin platform
