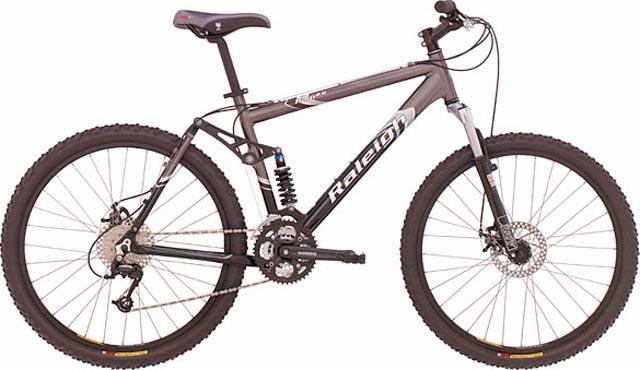

2004 Raleigh Ram 2.0
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $680.00
- Sizes
- 16", 18", 20"
- Archive ID
- 31239
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum |
| Fork | Rock Shox Judy TT, 100mm travel |
| Fork Material | Aluminum, single crown |
| Rear Shock | 3.0" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Altus EF-29 |
| Front Derailleur | Shimano Alivio |
| Rear Derailleur | Shimano Deore |
| Crankset | Shimano Alivio FC-MC20, 22/32/42 teeth |
| Bottom Bracket | Cartridge |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | SRAM PC-49, 1/2 x 3/32" |
| Pedals | Resin MTB |
Brakes
| Brakes | Tektro mechanical disc brakes, Tektro linear-pull levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless WTB |
|---|---|
| Handlebar | Aluminum MTB |
| Handlebar Extensions | Not included |
| Stem | Aluminum threadless |
| Saddle | WTB Speed-V |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Aluminum disc Q/R |
|---|---|
| Rims | Alex AL-DM18, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.10" WTB MotoRaptor |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
