Velopedia Bicycle Archive

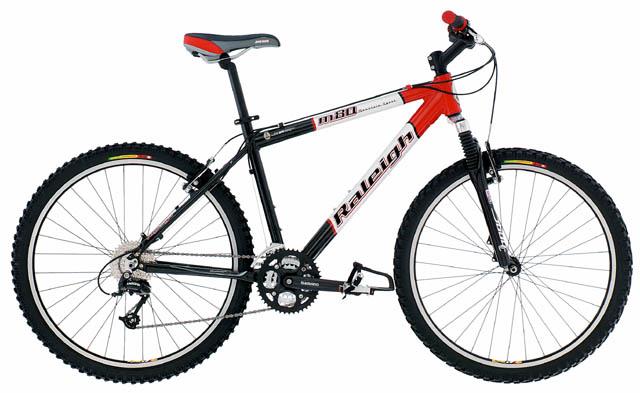

2002 Raleigh M80
Original specifications: Shimano Deore · 9-speed · mechanical rear derailleur · Front: 20", Rear: 26" wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #91276- Model year
- 2002
- Category
- Mountain
- Original MSRP
- $549.99
- Sizes
- 14", 16", 18", 20", 22"
- Colors
- Red/Black, Yellow
- Geometry
- Legacy reference
- In this record
- 28 specifications · archived image · original MSRP · geometry
Model history 8 other years
Browse other years
Compare side by side
Identification clues
2002 archived details
- Published colors
- Red/Black, Yellow
- Frame
- 7005 aluminum, butted w/replaceable derailleur hanger
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum, butted w/replaceable derailleur hanger · Mountain Mix · Front: 20", Rear: 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum, butted w/replaceable derailleur hanger |
| Fork | Rock Shox Judy C, 3.10" travel |
| Fork Material | Aluminum, single triple-clamp crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore Rapidfire Plus |
| Front Derailleur | Shimano Deore, bottom-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Deore |
| Crankset | Shimano FC-M440, 22/32/44 teeth |
| Bottom Bracket | Chin Haur CH-52, 111mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | KMC Z-9000, 1/2 x 3/32" |
| Pedals | Aluminum cage w/clips & straps |
Brakes
| Brakes | Tektro 829A brakes, Tektro 352A levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Tien Hsin No.10 ZST |
|---|---|
| Handlebar | Aluminum |
| Handlebar Extensions | Aluminum, 3-piece |
| Stem | Aluminum threadless |
| Saddle | Velo |
| Seatpost | Aluminum micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Joy Tech aluminum, Q/R |
|---|---|
| Rims | Weinmann Zac 19, 32-hole |
| Spokes | Sha-Dar stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 20 x 2.10" WTB VelociRaptor |
| Rear Tire | 26 x 2.10" WTB VelociRaptor |
| Wheel Size | Front: 20", Rear: 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 584.2 mm |
| Head-tube angle | 71° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 425.4 mm |
| Wheelbase | 1061.7 mm |
| Fork offset / rake | 38.1 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
