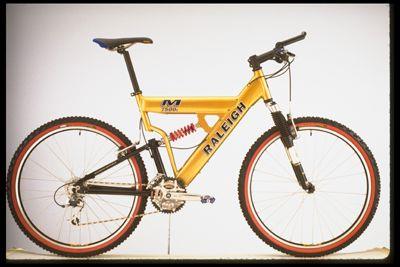

1998 Raleigh M-7500 i
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,099.99
- Sizes
- 16", 18", 20"
- Colors
- Outback Gold w/Black Rear
- Weight
- 28
- Archive ID
- 73405
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded w/unified rear triangle |
|---|---|
| Frame Material | 7005 aluminum |
| Fork | Rock Shox Judy T2 |
| Fork Material | Aluminum/magnesium, triple-clamp crown |
| Rear Shock | Rock Shox Deluxe, 4.0" travel |
Drivetrain
| Component Group | Shimano Deore LX/XT |
|---|---|
| Shifters | Shimano Deore LX RapidFire SL |
| Front Derailleur | Shimano Deore LX top-swing, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Deore XT SGS |
| Crankset | Shimano Deore LX, 22/32/42 teeth |
| Bottom Bracket | Shimano BB-LP27, 110.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | KMC SS-82, 1/2 x 3/32" |
| Pedals | Wellgo WPD-800 clipless |
Brakes
| Brakes | Shimano Deore LX V-Brake brakes, Shimano STX levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Tange-Seiki RBC-2 |
|---|---|
| Handlebar | Aluminum, butted |
| Handlebar Extensions | Aluminum |
| Stem | Aluminum |
| Saddle | Selle Italia Nitrox PD |
| Seatpost | Aluminum micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Shimano Deore LX, Rear: Shimano R080 |
|---|---|
| Rims | Weinmann Zac 19, 32-hole |
| Spokes | Chung Nan stainless steel, 1.8mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.10" IRC Mythos XC |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
