Velopedia Bicycle Archive

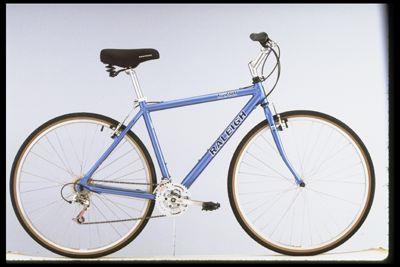

1998 Raleigh C-200
Hybrid bicycle from the Velopedia specification archive.
- Original MSRP
- $379.99
- Sizes
- 15", 17", 19", 21", 23", womens 16", womens 19"
- Colors
- Baltic Blue, Metalsmith Doppler
- Weight
- 26.5
- Archive ID
- 76647
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum, oversized |
| Fork | Raleigh Cross |
| Fork Material | 4130 chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano STX |
|---|---|
| Shifters | Grip Shift SRT-4.0 |
| Front Derailleur | Shimano Alivio top-swing, bottom-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano STX |
| Crankset | Shimano Alivio, 24/34/42 teeth |
| Bottom Bracket | Shimano BB-LP27, 110.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed, 11 - 30 teeth |
| Chain | Shimano CN-IG31, 1/2 x 3/32" |
| Pedals | Resin |
Brakes
| Brakes | Shimano Altus brakes, aluminum levers |
|---|
Cockpit & Contact Points
| Headset | 1" Victor VP-H67 |
|---|---|
| Handlebar | Aluminum |
| Handlebar Extensions | N/A |
| Stem | TIG-welded aluminum |
| Saddle | Selle Stratos Hyper Plush w/springs |
| Seatpost | Aluminum micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano RM40 |
|---|---|
| Rims | Weinmann 519, 36-hole |
| Spokes | Chung Nan stainless steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 38c multi-terrain |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
