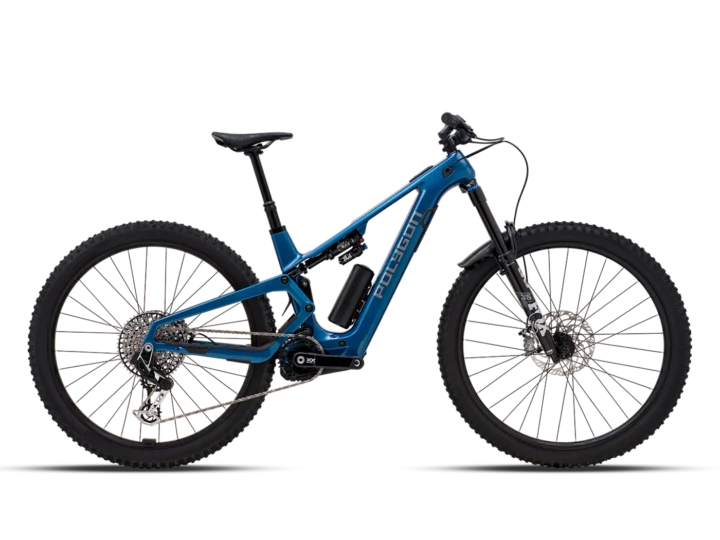

2025 Polygon Collosus TLE 0 AXS

Archived: Frame: ACX e-MTB · Fork: FOX PERFORMANCE ELITE 36, FLOAT EVOL, 160mm TRAVEL, OFFSET: 44mm, HSC-LSC, HSR-LSR, W/ FENDER

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.

Archived: Fork: FOX PERFORMANCE ELITE 36, FLOAT EVOL, 160mm TRAVEL, OFFSET: 44mm, HSC-LSC, HSR-LSR, W/ FENDER · Rear shock: FOX FLOAT X PERFORMANCE ELITE, E2E: 210x55mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: SRAM EC AXS POD CONTROLLER, 1x12-SPEED TRIGGER · Rear derailleur: SRAM XX EAGLE T-TYPE AXS · Crankset: SRAM XX CARBON T-TYPE, 34T · Cassette: SRAM XX EAGLE T-TYPE 10-52T XD DRIVER · Chain: SRAM XX T-TYPE

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: MAGURA MT7 HYDRAULIC DISC; Levers: MAGURA HC3; Rotors: MAGURA MDR C, 203MM 6-BOLT

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Wheels: MT6 TUBELESS READY · Rims: F: ALLOY DOUBLE WALL FV H:18mm 622x36 32H FOR TYRE 622-54/76 W/ TUBELESS TAPE / R: ALLOY DOUBLE WALL FV H:18mm 622x36 32H FOR TYRE 622-54/76 W/ TUBELESS TAPE · Hubs: F: DT SWISS 370 HYBRID CLASSIC 15x110mm 32H 6-BOLT / R: DT SWISS 370 HYBRID CLASSIC 12x148mm 32H 6-BOLT FOR XD DRIVER · Front tire: MAXXIS DISSECTOR 29"x2.40" 622x65, TLE · Rear tire: MAXXIS DISSECTOR 29"x2.40" 622x65, TLE

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: FSA NO.42/47/ACB, IS 42/28.6 | IS 52/40 · Handlebar: RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree · Stem: RACE FACE AFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0mm · Seatpost: TRANZ X JD-YSP39KL 170mm (S, M) / 200mm (L, XL) TRAVEL, DxL: 34.9x495mm (S, M) / 556mm (L, XL) · Saddle: XTENT, CR-MO ø7mm

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Archived: Motor: BOSCH PERFORMANCE LINE SX BDU3145 · Battery: BOSCH COMPACTTUBE 400 FIXED MOUNT HORIZONTAL

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.
