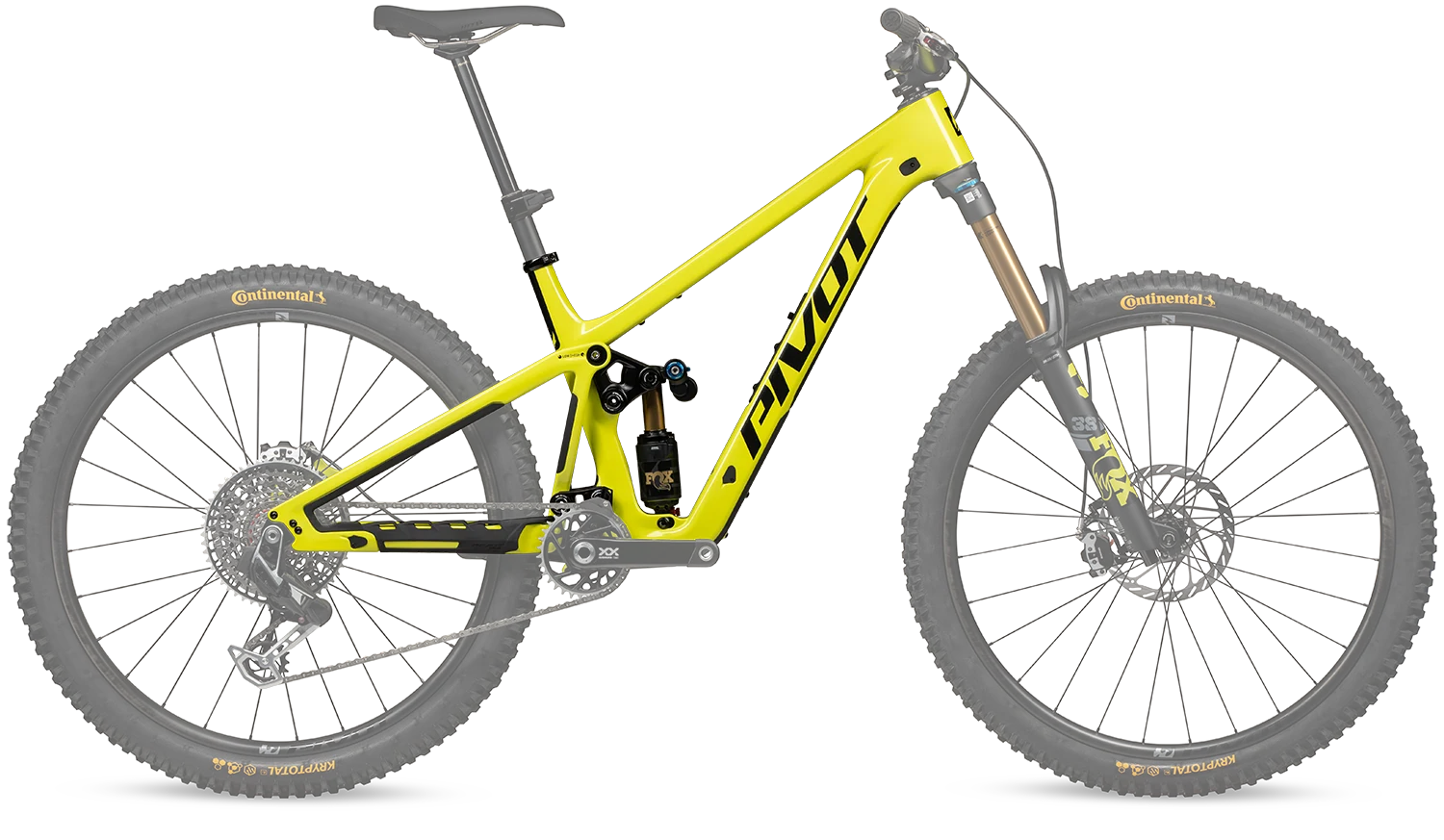

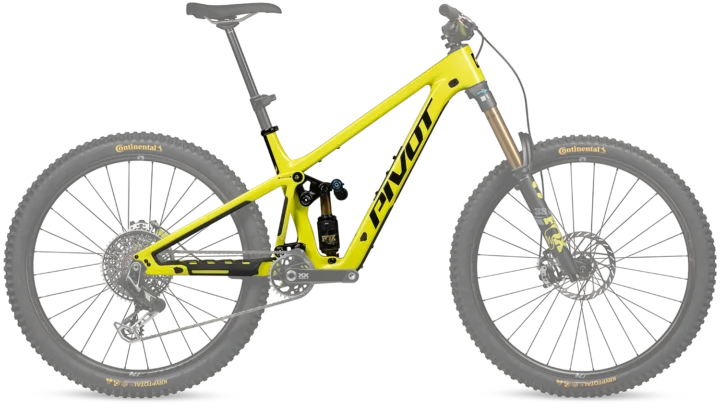

2026 Pivot Firebird Frame
Original manufacturer specifications including Frame drivetrain, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $4,699.00
- Sizes
- XS, S, M, L, XL
- Colors
- Yolo, White Gold
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 5 preserved details · 4 archived images · original MSRP · preserved geometry
- Archive ID
- 900000131
Frameset
| Frame Construction | Firebird — Ultra-light Hollow Core carbon frame |
|---|---|
| Frame Material | Carbon Fiber |
| Rear Shock | Fox Factory Float X2 |
Drivetrain
| Component Group | Frame |
|---|
Cockpit & Contact Points
| Headset | Pivot Precision Sealed Cartridge |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Seat tube | 365 mm | 385 mm | 415 mm | 440 mm | 475 mm |
| Top tube | 559 mm | 597 mm | 623 mm | 636 mm | 658 mm |
| Head tube | 85 mm | 95 mm | 108 mm | 118 mm | 128 mm |
| Head-tube angle | 63.4° | 63.1° | 63.1° | 63.1° | 63.1° |
| Seat-tube angle | 76.8° | 76.2° | 76.2° | 76.2° | 76.2° |
| Bottom-bracket drop | 15 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Bottom-bracket height | 342 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Reach | 405 mm | 436 mm | 459 mm | 476 mm | 496 mm |
| Stack | 618 mm | 628 mm | 640 mm | 649 mm | 658 mm |
| Standover height | 675 mm | 677 mm | 681 mm | 703 mm | 708 mm |
Geometry source: Pivot first-party geometry metafield ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: The head angle of 63.4° sits toward the slacker end. Its stack of 618 mm sits toward the taller end. Its bottom-bracket drop of 15 mm sits toward the shallower-drop end.
Compared with 56 distinct mountain geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.SM geometry
Archive context: The head angle of 63.1° sits toward the slacker end. Its bottom-bracket drop of 18 mm sits toward the shallower-drop end. Its stack of 628 mm sits toward the taller end.
Compared with 182 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.MD geometry
Archive context: Its stack of 640 mm sits toward the taller end. Its bottom-bracket drop of 18 mm sits toward the shallower-drop end. The head angle of 63.1° sits toward the slacker end.
Compared with 183 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.LG geometry
Archive context: Its stack of 649 mm sits toward the taller end. Its bottom-bracket drop of 18 mm sits toward the shallower-drop end. The head angle of 63.1° sits toward the slacker end.
Compared with 180 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
Archive context: Its stack of 658 mm sits toward the taller end. Its bottom-bracket drop of 18 mm sits toward the shallower-drop end. The head angle of 63.1° sits toward the slacker end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- SuspensionAsk when the rear shock was last serviced. Check the shaft and seals for damage or oil, cycle the shock through its travel and test every suspension pivot for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
Bike-specific inspection checklist 16 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Pivot Firebird Frame · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Firebird — Ultra-light Hollow Core carbon frame
Suspension
Evaluate the suspension →Archived: Rear shock: Fox Factory Float X2
Drivetrain
Check drivetrain wear →Archived: Group: Frame
Brakes
Inspect the brakes →Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
