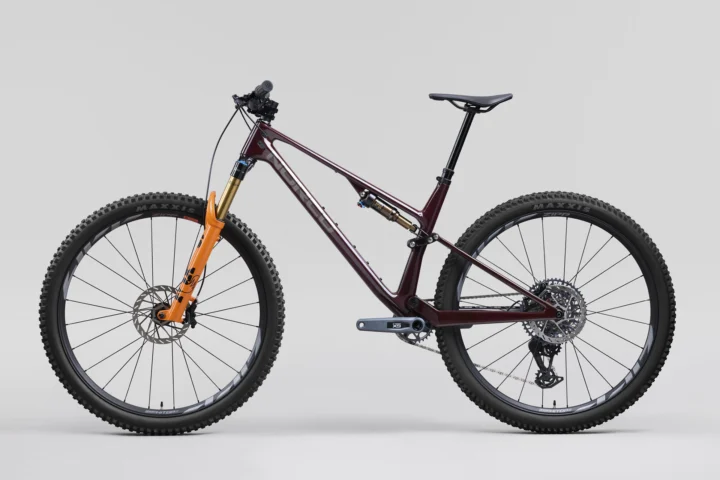

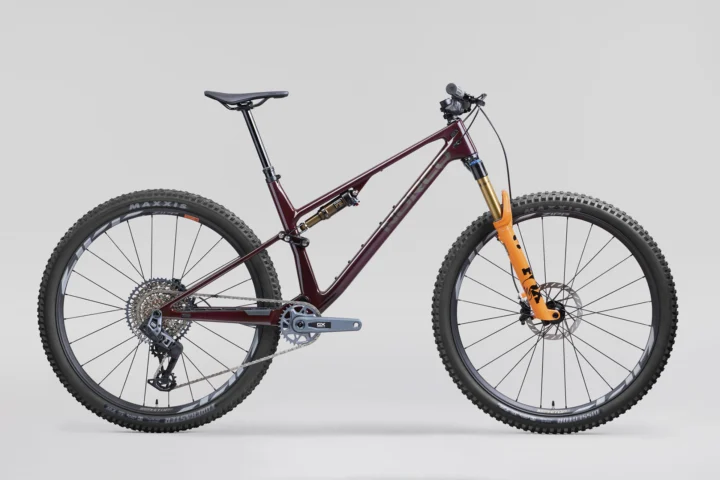

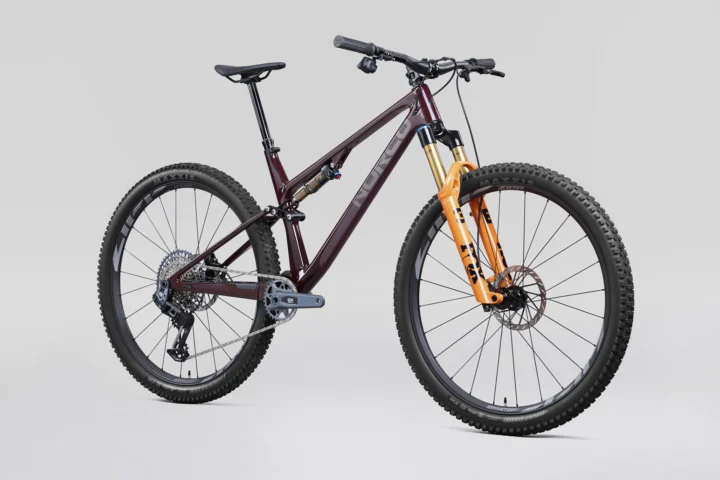

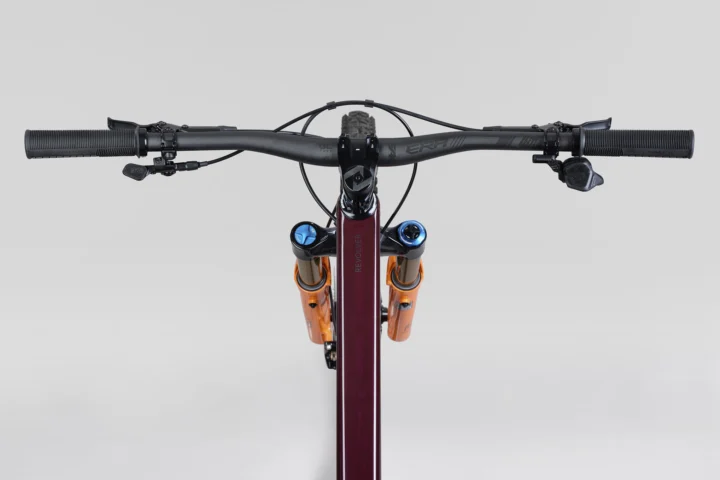

2027 Norco Revolver LT C1

Original specifications: 29" wheels · geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001373
Model year
2027
Category
Mountain
Original MSRP
$8,299.00
Sizes
1, 2, 3, 4, 5
Colors
Dark Red
Geometry
5 manufacturer sizes
In this record
22 specifications · 5 archived images · original MSRP · geometry
Sponsored affiliate link
Original buildCarbon Fiber · 29"

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

12345

Published colors

Dark Red

Frameset

Frame ConstructionCarbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Frame MaterialCarbon Fiber
ForkFox 36 SL Factory GRIP X 130mm, 29" , 1 1/8" x 1.5" Alloy, 110mmx15mm, Post Mount
Fork MaterialAluminum
Rear ShockFox Factory Float SL, 190x45mm, Std eyelet

Drivetrain

ShiftersSRAM Pod Controller, Discrete Clamp
Rear DerailleurSRAM GX Eagle AXS T-Type, 12sp
CranksetSRAM GX Eagle, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
Bottom BracketSRAM DUB, BSA 73mm, MTB Wide
CassetteSRAM 1275 Eagle T-Type, 10-52T, 12sp
ChainSRAM GX Eagle T-Type Flat Top, 12sp

Brakes

Brakes(F) SRAM Motive Silver, Metallic Pads / (R) SRAM Motive Silver, Metallic Pads; Rotors: (F) SRAM HS2 180mm, 2mm thickness, 6-bolt / (R) SRAM HS2 180mm, 2mm thickness, 6-bolt; Levers: SRAM Motive Silver

Cockpit & Contact Points

HeadsetFSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
HandlebarRaceFace ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm Rise
StemNorco CNC Alloy, 50mm Length, 35mm Clamp
SaddleFizik Ridon, MG Rail
SeatpostOneUp V3 w/ One Up 1x lever, 31.6mm, 150mm (S1-S2) -180mm (S3) -210mm (S4) -240mm (S5)

Wheels & Tires

Hubs(F) SRAM ZM 900 SL, 15x110mm Boost, 6-bolt / (R) SRAM ZM 900 SL, 12x148mm Boost, XD, 32H, 6-bolt
RimsZipp 1Zero Hitop S Carbon, 30mm ID, 29"
Front TireMaxxis NEW Dissector, 3C MaxxTerra EXO, 29X2.4"
Rear TireMaxxis NEW Forekaster, 3C MaxxTerra EXO, 29x2.4"
Wheel Size29"

Geometry

5 sizes · 17 measurements

Frame measurements by size.

All geometry measurements5 sizes · 17 measurements
Measurement1 · 29"2 · 29"3 · 29"4 · 29"5 · 29"
Seat tube392 mm434 mm453 mm477 mm491 mm
Effective top tube581 mm606 mm631 mm655 mm680 mm
Head tube90 mm100 mm110 mm120 mm130 mm
Head-tube angle66°66°66°66°66°
Seat-tube angle74.5°74.75°75°75.25°75.5°
Chainstay / rear center422 mm426 mm430 mm434 mm438 mm
Wheelbase1135 mm1168 mm1201 mm1234 mm1267 mm
Bottom-bracket drop32/3232/3232/3232/3232/32
Bottom-bracket height342 mm342 mm342 mm342 mm342 mm
Reach418 mm443 mm468 mm493 mm518 mm
Stack592 mm601 mm611 mm620 mm629 mm
Standover height683 mm687 mm691 mm698 mm704 mm
Fork offset / rake44 mm44 mm44 mm44 mm44 mm
Trail118 mm118 mm118 mm118 mm118 mm
Crank length165 mm165 mm170 mm170 mm170 mm
Stem length50 mm50 mm50 mm50 mm50 mm
Wheel size29"29"29"29"29"

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes32T · 10–52T · 12-speed
Lowest0.62:1 Highest3.20:1 Total range520%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear25.1 mph

Rear tire: 29×2.4.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
SRAM GX Eagle T-Type Flat Top

12sp

Retailer offers
Cassette · Original
SRAM 1275 Eagle T-Type

10-52T, 12sp

Retailer offers
Front tire · Original
Maxxis NEW Dissector

3C MaxxTerra EXO, 29X2.4"

Retailer offers
More parts (7)Fewer parts
Rear tire · Original
Maxxis NEW Forekaster

3C MaxxTerra EXO, 29x2.4"

Bottom bracket · Original
SRAM DUB

BSA 73mm, MTB WIDE

Before ordering: Use the spacer setup for your crank.
Retailer offers
Saddle · Original
Fizik Ridon

MG Rail

Crankset · Original
SRAM GX Eagle

32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)

Rear derailleur · Original
SRAM GX Eagle AXS T-Type

12sp

Seatpost · Original
OneUp V3 w/ One Up 1x lever

31.6mm, 150mm (S1-S2) -180mm (S3) -210mm (S4) -240mm (S5)

Rims · Original
Zipp 1Zero Hitop S Carbon

30mm ID, 29"

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis NEW Dissector, 3C MaxxTerra EXO, 29X2.4"
Rear tire
Maxxis NEW Forekaster, 3C MaxxTerra EXO, 29x2.4"
Drivetrain
12-speed
Seatpost diameter
31.6 mm
Bottom bracket / shell
SRAM DUB, BSA 73mm, MTB WIDE
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ · Fork: Fox 36 SL Factory GRIP X 130mm, 29" , 1 1/8" x 1.5" Alloy, 110mmx15mm, Post Mount · Aluminum

Archived: Fork: Fox 36 SL Factory GRIP X 130mm, 29" , 1 1/8" x 1.5" Alloy, 110mmx15mm, Post Mount · Rear shock: Fox Factory Float SL, 190x45mm, Std eyelet

Archived: Shifters: SRAM Pod Controller, Discrete Clamp · Rear derailleur: SRAM GX Eagle AXS T-Type, 12sp · Crankset: SRAM GX Eagle, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5) · Bottom bracket: SRAM DUB, BSA 73mm, MTB WIDE · Cassette: SRAM 1275 Eagle T-Type, 10-52T, 12sp · Chain: SRAM GX Eagle T-Type Flat Top, 12sp

Archived: Brakes: (F) SRAM Motive Silver, Metallic Pads / (R) SRAM Motive Silver, Metallic Pads; Rotors: (F) SRAM HS2 180mm, 2mm thickness, 6-bolt / (R) SRAM HS2 180mm, 2mm thickness, 6-bolt; Levers: SRAM Motive Silver

Archived: Wheel size: 29" · Rims: Zipp 1Zero Hitop S Carbon, 30mm ID, 29" · Hubs: (F) SRAM ZM 900 SL, 15x110mm Boost, 6-bolt / (R) SRAM ZM 900 SL, 12x148mm Boost, XD, 32H, 6-bolt · Front tire: Maxxis NEW Dissector, 3C MaxxTerra EXO, 29X2.4" · Rear tire: Maxxis NEW Forekaster, 3C MaxxTerra EXO, 29x2.4"

Controls and contact points

Archived: Headset: FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) · Handlebar: RaceFace ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm Rise · Stem: Norco CNC Alloy, 50mm Length, 35mm Clamp · Seatpost: OneUp V3 w/ One Up 1x lever, 31.6mm, 150mm (S1-S2) -180mm (S3) -210mm (S4) -240mm (S5) · Saddle: Fizik Ridon, MG Rail
