2025 Norco Optic C3
Original specifications: 29"; 29"/27.5" wheels · 15.6 kg (34.2 lbs) published weight · geometry for 5 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001388- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $4,999.00
- Sizes
- 1, 2, 3, 4, 5
- Colors
- Golden Larch Yellow
- Weight
- 15.6 kg (34.2 lbs)
- Geometry
- 5 manufacturer sizes
- In this record
- 21 specifications · 7 archived images · original MSRP · geometry
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2025 archived details
- Published colors
- Golden Larch Yellow
- Frame
- Carbon Fiber
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCarbon Fiber · 29"; 29"/27.5"
Frameset
| Frame Construction | Carbon Frame, 125mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Rockshox Pike Select, 140mm, 44mm offset, Fender Included |

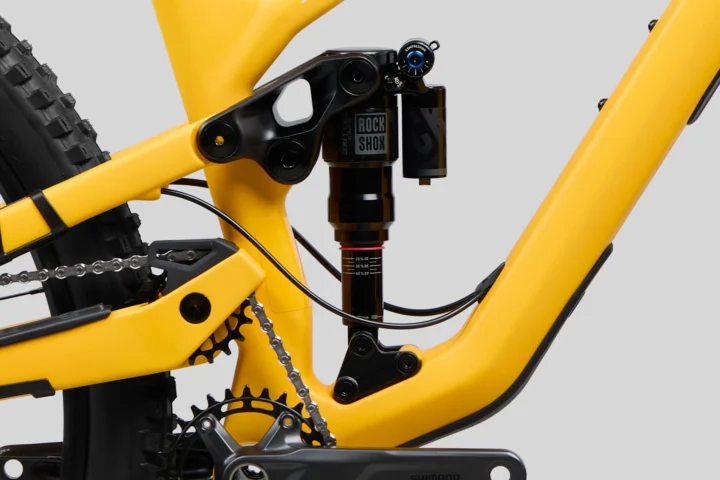

| Rear Shock | Rockshox Super Deluxe Select+, 185x50mm TR |
Drivetrain
| Shifters | Shimano Deore SL-M6100, 12sp |
|---|---|
| Rear Derailleur | Shimano XT M8100, 12sp |
| Crankset | Shimano Deore FC-MT512, 30T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5) |
| Bottom Bracket | Shimano Sealed Bearing, BSA 73mm |
| Cassette | Shimano Deore CS-M6100-12, 12 Speed, 10-51T |
| Chain | Shimano Deore CN-M6100, 12sp |
Brakes
| Brakes | (F) Shimano Deore MT520 4-Piston, Metallic Pads / (R) Shimano Deore MT520 4-Piston, Metallic Pads; Rotors: (F) Shimano RT-64, 180mm rotor, C-Lock / (R) Shimano RT-64, 180mm rotor, C-Lock; Levers: Shimano Deore MT520 |
|---|
Cockpit & Contact Points
| Headset | FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 ) |
|---|---|

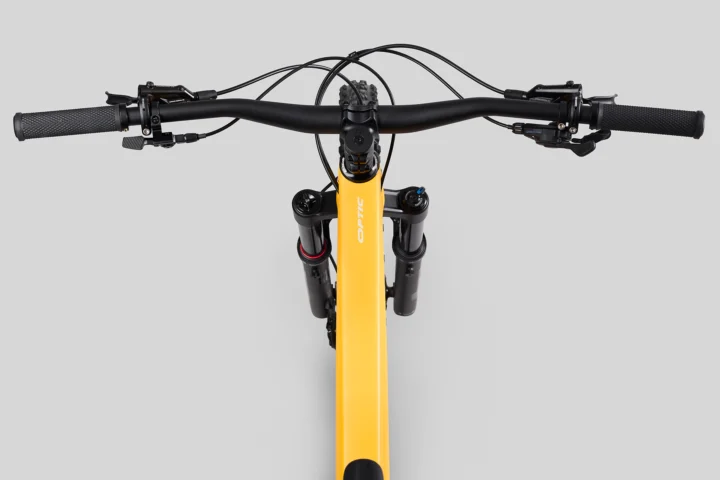

| Handlebar | 6061 Alloy, 800mm, 25mm Rise |
| Stem | Norco 40mm length , 35mm clamp |
| Saddle | SDG Bel Air V3 |
| Seatpost | TranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5) |
Wheels & Tires
| Hubs | (F) Shimano HB-MT410, 15x110mm Boost, 32H, C-lock / (R) Shimano FH-MT510, 12x148 Boost, Micro Spline, 32H, C-lock |
|---|---|
| Rims | WTB ST I30, 32H, F/R-29", 30mm ID |
| Front Tire | Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding |
| Rear Tire | Maxxis Dissector 2.4", 3C, MaxxTerra / EXO / TR, Folding |
| Wheel Size | 29"; 29"/27.5" |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements10 size / setup combinations · 17 measurements
| Measurement | 1 · 29" | 2 · 29" | 3 · 29" | 4 · 29" | 5 · 29" | 1 · 29"/27.5" | 2 · 29"/27.5" | 3 · 29"/27.5" | 4 · 29"/27.5" | 5 · 29"/27.5" |
|---|---|---|---|---|---|---|---|---|---|---|
| Seat tube | 350 mm | 370 mm | 385 mm | 430 mm | 445 mm | 350 mm | 370 mm | 385 mm | 430 mm | 445 mm |
| Effective top tube | 568 mm | 593 mm | 617 mm | 641 mm | 665 mm | 568 mm | 593 mm | 617 mm | 641 mm | 665 mm |
| Head tube | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Head-tube angle | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Seat-tube angle | 76.5° | 76.75° | 77° | 77.25° | 77.5° | 76.5° | 76.75° | 77° | 77.25° | 77.5° |
| Chainstay / rear center | 421 mm | 425 mm | 429 mm | 433 mm | 437 mm | 415 mm | 419 mm | 423 mm | 427 mm | 431 mm |
| Wheelbase | 1159 mm | 1193 mm | 1226 mm | 1259 mm | 1292 mm | 1154 mm | 1188 mm | 1221 mm | 1254 mm | 1287 mm |
| Bottom-bracket drop | 32/32 | 32/32 | 32/32 | 32/32 | 32/32 | 32/11 | 32/11 | 32/11 | 32/11 | 32/11 |
| Bottom-bracket height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Reach | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm |
| Stack | 608 mm | 617 mm | 626 mm | 635 mm | 644 mm | 608 mm | 617 mm | 626 mm | 635 mm | 644 mm |
| Standover height | 675 mm | 677 mm | 678 mm | 707 mm | 705 mm | 675 mm | 677 mm | 678 mm | 707 mm | 705 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheel size | 29" | 29" | 29" | 29" | 29" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
