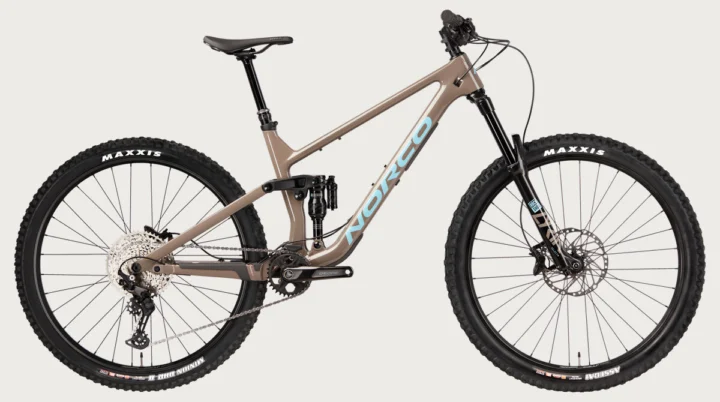

2023 Norco Sight C3 Shimano
Original specifications: 29"; 27.5" wheels · geometry for 4 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001325- Model year
- 2023
- Category
- Mountain
- Original MSRP
- $4,699.00
- Sizes
- S, M, L, XL
- Colors
- Red/Black, Grey/Blue
- Geometry
- 4 manufacturer sizes
- In this record
- 21 specifications · 2 archived images · original MSRP · geometry
Original buildCarbon Fiber · 29"; 27.5"
Frameset
| Frame Construction | Carbon All-Mountain, Aluminum CS, 150mm Travel, 27.5" and 29" options, UDH, Hangerless Interface Compatible, Ride Aligned™ |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Lyrik Select, Charger RC, 160mm, 37mm Offset (27.5), 44mm Offset (29) |
| Rear Shock | RockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion |
Drivetrain
| Shifters | Shimano Deore SL-M6100-R |
|---|---|
| Rear Derailleur | Shimano Deore RD-M6100 |
| Crankset | Shimano Deore FC-MT6120-1, 32T, 170mm |
| Bottom Bracket | Shimano PF92 |
| Cassette | Shimano Deore CS-M6100-12, 10-51T, 12 Speed |
| Chain | Shimano Deore CN-M6100 |
Brakes
| Brakes | (F) Shimano BR-MT520, 4 piston, Metallic Pads / (R) Shimano BR-MT520, 4 piston, Metallic Pads; Rotors: (F) Shimano RT-64, 203mm / (R) Shimano RT-64, 180mm; Levers: Shimano BR-MT520 |
|---|
Cockpit & Contact Points
| Headset | FSA #57 E Sealed Bearing, Tapered |
|---|---|
| Handlebar | Butted 6061 Alloy, 800mm, 25mm Rise |
| Stem | Alloy, 40mm Length, 35mm Clamp |
| Saddle | SDG Bel Air V3 |
| Seatpost | TranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL) |
Wheels & Tires
| Hubs | (F) Shimano HB-MT410, 15x110mm Boost, Center Lock / (R) Shimano FH-MT510, 12x148mm Boost, Micro Spline, Center Lock |
|---|---|
| Rims | Stan's Flow D, 32H |
| Front Tire | Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding |
| Rear Tire | Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding |
| Wheel Size | 29"; 27.5" |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements8 size / setup combinations · 17 measurements
| Measurement | S · 29" | M · 29" | L · 29" | XL · 29" | S · 27.5" | M · 27.5" | L · 27.5" | XL · 27.5" |
|---|---|---|---|---|---|---|---|---|
| Seat tube | 370 mm | 395 mm | 435 mm | 465 mm | 370 mm | 395 mm | 435 mm | 465 mm |
| Effective top tube | 564 mm | 593 mm | 621 mm | 649 mm | 560 mm | 588 mm | 617 mm | 645 mm |
| Head tube | 90 mm | 100 mm | 110 mm | 120 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Head-tube angle | 64° | 64° | 64° | 64° | 63.5° | 63.5° | 63.5° | 63.5° |
| Seat-tube angle | 77° | 77.3° | 77.7° | 78° | 77° | 77.3° | 77.7° | 78° |
| Chainstay / rear center | 430 mm | 435 mm | 440 mm | 445 mm | 430 mm | 435 mm | 440 mm | 445 mm |
| Wheelbase | 1183 mm | 1222 mm | 1262 mm | 1301 mm | 1180 mm | 1220 mm | 1259 mm | 1299 mm |
| Bottom-bracket drop | 25 mm | 25 mm | 25 mm | 25 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Bottom-bracket height | 350 mm | 350 mm | 350 mm | 350 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Reach | 425 mm | 455 mm | 485 mm | 515 mm | 425 mm | 455 mm | 485 mm | 515 mm |
| Stack | 603 mm | 612 mm | 621 mm | 630 mm | 585 mm | 594 mm | 603 mm | 612 mm |
| Standover height | 682 mm | 687 mm | 704 mm | 726 mm | 668 mm | 677 mm | 683 mm | 701 mm |
| Fork offset / rake | 42 mm | 42 mm | 42 mm | 42 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm | 137 mm | 137 mm | 137 mm | 137 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheel size | 29" | 29" | 29" | 29" | 27.5" | 27.5" | 27.5" | 27.5" |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Rear tire: 2.4″ + 27.5-inch.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
10-51T, 12 Speed

Shimano Deore CS-M6200 12-Speed Cassette Black, 10-51t, HG
Replacement option
4 piston, Metallic Pads / (R) Shimano BR-MT520, 4 piston, Metallic Pads; Rotors: (F) Shimano RT-64, 203mm / (R) Shimano RT-64, 180mm; Levers: Shimano BR-MT520
More parts (8)Fewer parts
32T, 170mm
Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)
Tapered
32H
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding
- Rear tire
- Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding
- Drivetrain
- 12-speed
- Seatpost diameter
- 34.9 mm
- Bottom bracket / shell
- Shimano PF92
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon All-Mountain, Aluminum CS, 150mm Travel, 27.5" and 29" options, UDH, Hangerless Interface Compatible, Ride Aligned™ · Fork: RockShox Lyrik Select, Charger RC, 160mm, 37mm Offset (27.5), 44mm Offset (29)
Suspension
Evaluate the suspension →Archived: Fork: RockShox Lyrik Select, Charger RC, 160mm, 37mm Offset (27.5), 44mm Offset (29) · Rear shock: RockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore SL-M6100-R · Rear derailleur: Shimano Deore RD-M6100 · Crankset: Shimano Deore FC-MT6120-1, 32T, 170mm · Bottom bracket: Shimano PF92 · Cassette: Shimano Deore CS-M6100-12, 10-51T, 12 Speed · Chain: Shimano Deore CN-M6100
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano BR-MT520, 4 piston, Metallic Pads / (R) Shimano BR-MT520, 4 piston, Metallic Pads; Rotors: (F) Shimano RT-64, 203mm / (R) Shimano RT-64, 180mm; Levers: Shimano BR-MT520
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29"; 27.5" · Rims: Stan's Flow D, 32H · Hubs: (F) Shimano HB-MT410, 15x110mm Boost, Center Lock / (R) Shimano FH-MT510, 12x148mm Boost, Micro Spline, Center Lock · Front tire: Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding · Rear tire: Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding
Controls and contact points
Archived: Headset: FSA #57 E Sealed Bearing, Tapered · Handlebar: Butted 6061 Alloy, 800mm, 25mm Rise · Stem: Alloy, 40mm Length, 35mm Clamp · Seatpost: TranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL) · Saddle: SDG Bel Air V3
