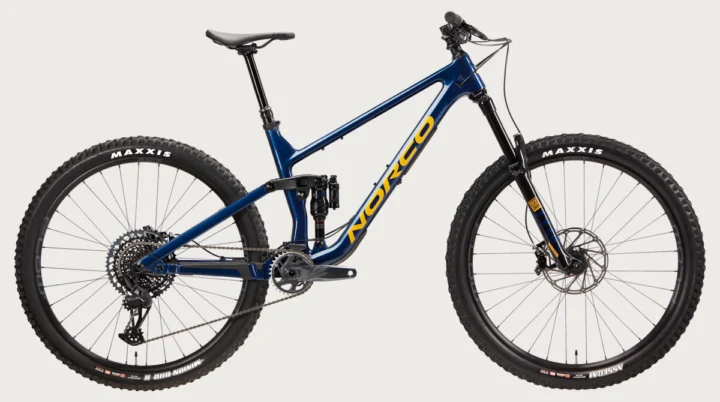

2023 Norco Sight C2 SRAM

Original specifications: 29"; 27.5" wheels · geometry for 4 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001326
Model year
2023
Category
Mountain
Original MSRP
$5,499.00
Sizes
S, M, L, XL
Colors
Grey/Gold, Blue/Orange
Geometry
4 manufacturer sizes
In this record
21 specifications · 2 archived images · original MSRP · geometry
Sponsored affiliate link
Original buildCarbon Fiber · 29"; 27.5"

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Grey/GoldBlue/Orange

Frameset

Frame ConstructionCarbon All-Mountain, Aluminum CS, 150mm Travel, 27.5" and 29" options, UDH, Hangerless Interface Compatible, Ride Aligned™
Frame MaterialCarbon Fiber
ForkRockShox Lyrik Ultimate, Charger 2 RC2, 160mm, 37mm Offset (27.5), 44mm Offset (29)
Rear ShockRockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion

Drivetrain

ShiftersSRAM GX Eagle
Rear DerailleurSRAM GX Eagle
CranksetSRAM GX Eagle DUB, 34T (27.5), 32T (27.5 S), 32T (29), 170mm
Bottom BracketSRAM DUB PF92
CassetteSRAM Eagle XG 1275, 10-52T
ChainSRAM Eagle

Brakes

Brakes(F) SRAM Code RSC, 4 Piston, Metallic Pads / (R) SRAM Code RSC, 4 Piston, Metallic Pads; Rotors: (F) SRAM CenterLine, 200mm / (R) SRAM CenterLine, 180mm; Levers: SRAM Code RSC

Cockpit & Contact Points

HeadsetFSA #57 E Sealed Bearing, Tapered
HandlebarDeity Ridgeline, 800mm, 25mm Rise
StemAlloy, 40mm Length, 35mm Clamp
SaddleSDG Bel Air V3
SeatpostTranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)

Wheels & Tires

Hubs(F) Race Face Trace, 15x110mm Boost, 6 Bolt / (R) Race Face Trace, 12x148mm Boost, XD, 6 Bolt
RimsStan's Flow S2, 32H
Front TireMaxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding
Rear TireMaxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding
Wheel Size29"; 27.5"

Geometry

4 sizes · 17 measurements

Frame measurements by size.

All geometry measurements8 size / setup combinations · 17 measurements
MeasurementS · 29"M · 29"L · 29"XL · 29"S · 27.5"M · 27.5"L · 27.5"XL · 27.5"
Seat tube370 mm395 mm435 mm465 mm370 mm395 mm435 mm465 mm
Effective top tube564 mm593 mm621 mm649 mm560 mm588 mm617 mm645 mm
Head tube90 mm100 mm110 mm120 mm100 mm110 mm120 mm130 mm
Head-tube angle64°64°64°64°63.5°63.5°63.5°63.5°
Seat-tube angle77°77.3°77.7°78°77°77.3°77.7°78°
Chainstay / rear center430 mm435 mm440 mm445 mm430 mm435 mm440 mm445 mm
Wheelbase1183 mm1222 mm1262 mm1301 mm1180 mm1220 mm1259 mm1299 mm
Bottom-bracket drop25 mm25 mm25 mm25 mm15 mm15 mm15 mm15 mm
Bottom-bracket height350 mm350 mm350 mm350 mm342 mm342 mm342 mm342 mm
Reach425 mm455 mm485 mm515 mm425 mm455 mm485 mm515 mm
Stack603 mm612 mm621 mm630 mm585 mm594 mm603 mm612 mm
Standover height682 mm687 mm704 mm726 mm668 mm677 mm683 mm701 mm
Fork offset / rake42 mm42 mm42 mm42 mm37 mm37 mm37 mm37 mm
Trail136 mm136 mm136 mm136 mm137 mm137 mm137 mm137 mm
Crank length170 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm
Stem length40 mm40 mm40 mm40 mm40 mm40 mm40 mm40 mm
Wheel size29"29"29"29"27.5"27.5"27.5"27.5"

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

S · 29", M · 29", L · 29", XL · 29"32T · 10–52T
Lowest0.62:1 Highest3.20:1 Total range520%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear25.1 mph

Rear tire: 2.4″ + 29-inch.

S · 27.5"32T · 10–52T
Lowest0.62:1 Highest3.20:1 Total range520%
Estimated speed At 90 RPM Lowest gear4.6 mph Highest gear23.8 mph

Rear tire: 2.4″ + 27.5-inch.

M · 27.5", L · 27.5", XL · 27.5"34T · 10–52T
Lowest0.65:1 Highest3.40:1 Total range520%
Estimated speed At 90 RPM Lowest gear4.9 mph Highest gear25.3 mph

Rear tire: 2.4″ + 27.5-inch.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
SRAM Eagle XG 1275

10-52T

Retailer offers
Other replacement options (1)
Bottom bracket · Original
SRAM DUB PF92 Before ordering: Use the spacer setup for your crank.
Retailer offers
Saddle · Original
SDG Bel Air V3
More parts (6)Fewer parts
Crankset · Original
SRAM GX Eagle DUB

34T (27.5), 32T (27.5 S), 32T (29), 170mm

Rear derailleur · Original
SRAM GX Eagle Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
SRAM GX Eagle Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Seatpost · Original
TranzX YS105

Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL)

Headset · Original
FSA #57 E Sealed Bearing

Tapered

Rims · Original
Stan's Flow S2

32H

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding
Rear tire
Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding
Seatpost diameter
34.9 mm
Bottom bracket / shell
SRAM DUB PF92
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Carbon All-Mountain, Aluminum CS, 150mm Travel, 27.5" and 29" options, UDH, Hangerless Interface Compatible, Ride Aligned™ · Fork: RockShox Lyrik Ultimate, Charger 2 RC2, 160mm, 37mm Offset (27.5), 44mm Offset (29)

Archived: Fork: RockShox Lyrik Ultimate, Charger 2 RC2, 160mm, 37mm Offset (27.5), 44mm Offset (29) · Rear shock: RockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion

Archived: Shifters: SRAM GX Eagle · Rear derailleur: SRAM GX Eagle · Crankset: SRAM GX Eagle DUB, 34T (27.5), 32T (27.5 S), 32T (29), 170mm · Bottom bracket: SRAM DUB PF92 · Cassette: SRAM Eagle XG 1275, 10-52T · Chain: SRAM Eagle

Archived: Brakes: (F) SRAM Code RSC, 4 Piston, Metallic Pads / (R) SRAM Code RSC, 4 Piston, Metallic Pads; Rotors: (F) SRAM CenterLine, 200mm / (R) SRAM CenterLine, 180mm; Levers: SRAM Code RSC

Archived: Wheel size: 29"; 27.5" · Rims: Stan's Flow S2, 32H · Hubs: (F) Race Face Trace, 15x110mm Boost, 6 Bolt / (R) Race Face Trace, 12x148mm Boost, XD, 6 Bolt · Front tire: Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding · Rear tire: Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding

Controls and contact points

Archived: Headset: FSA #57 E Sealed Bearing, Tapered · Handlebar: Deity Ridgeline, 800mm, 25mm Rise · Stem: Alloy, 40mm Length, 35mm Clamp · Seatpost: TranzX YS105, Adjustable Travel, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL) · Saddle: SDG Bel Air V3
