Velopedia Bicycle Archive

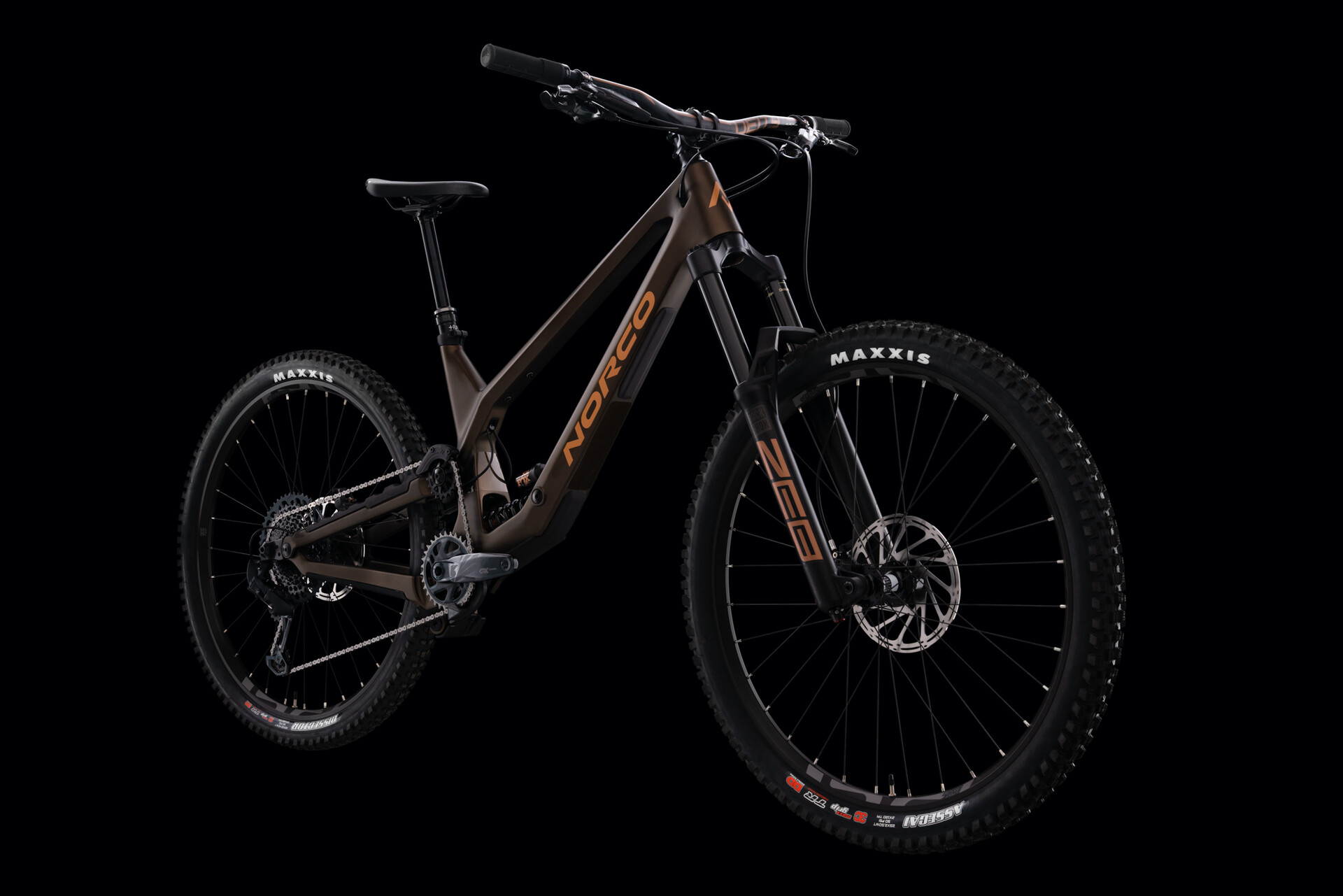

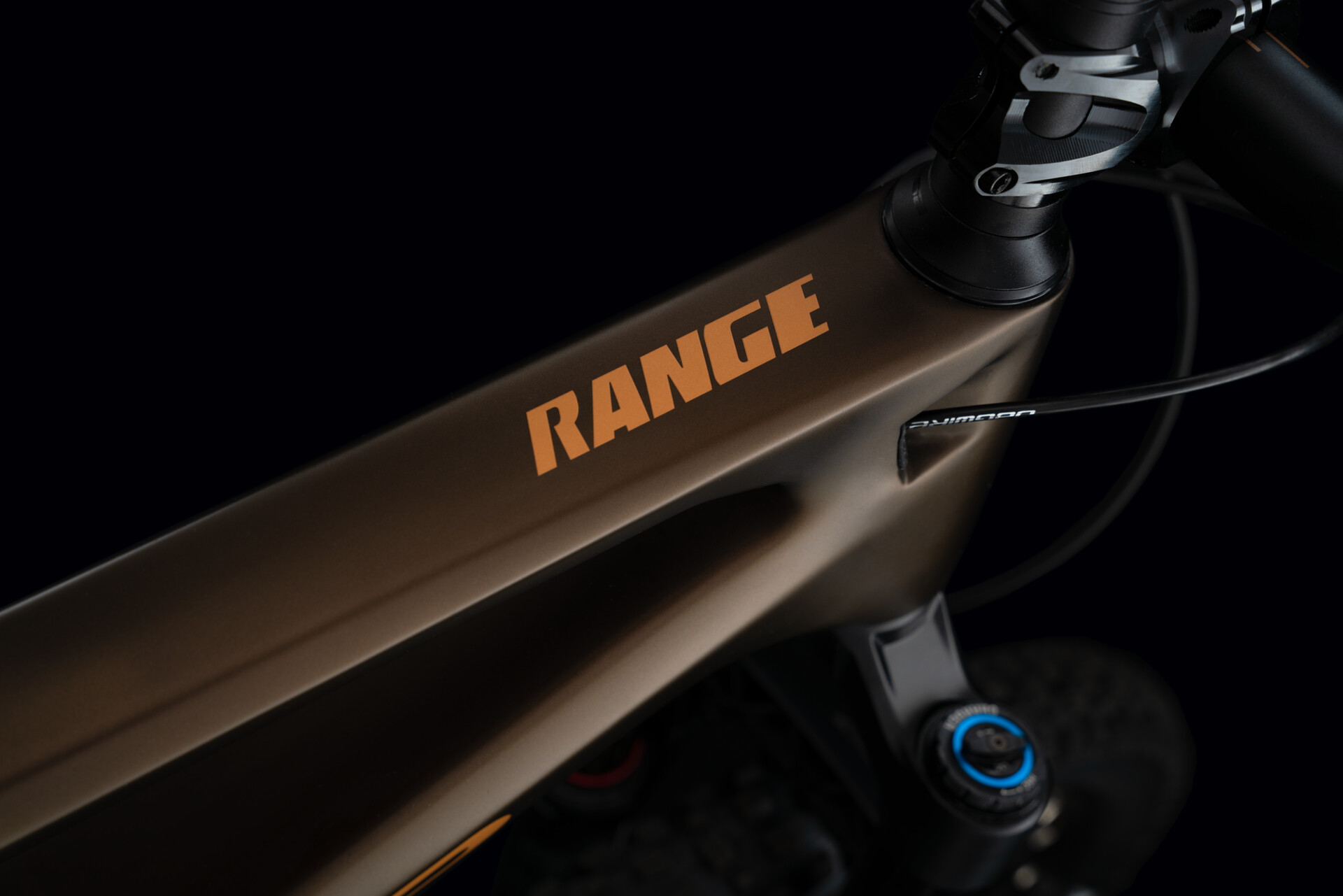

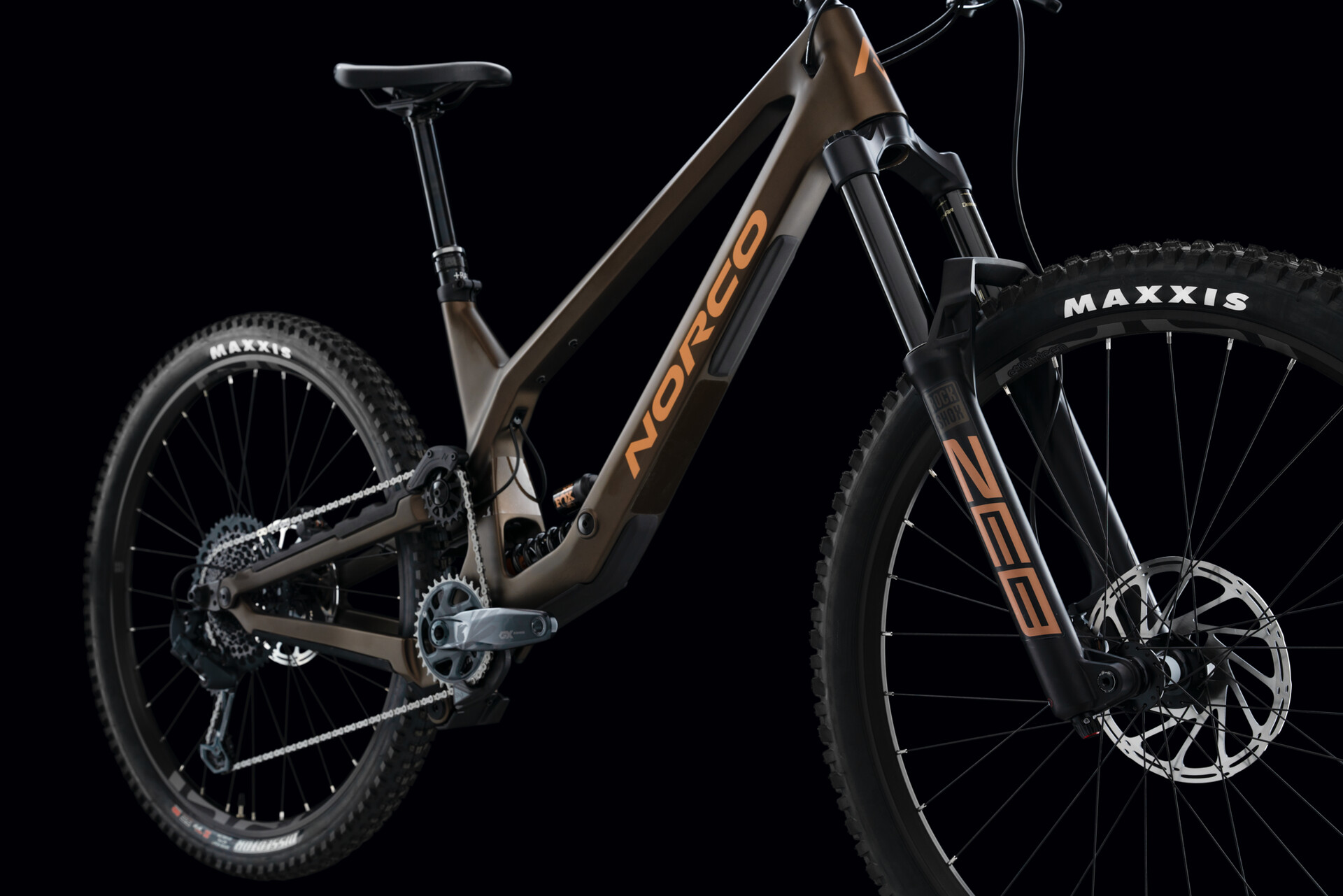

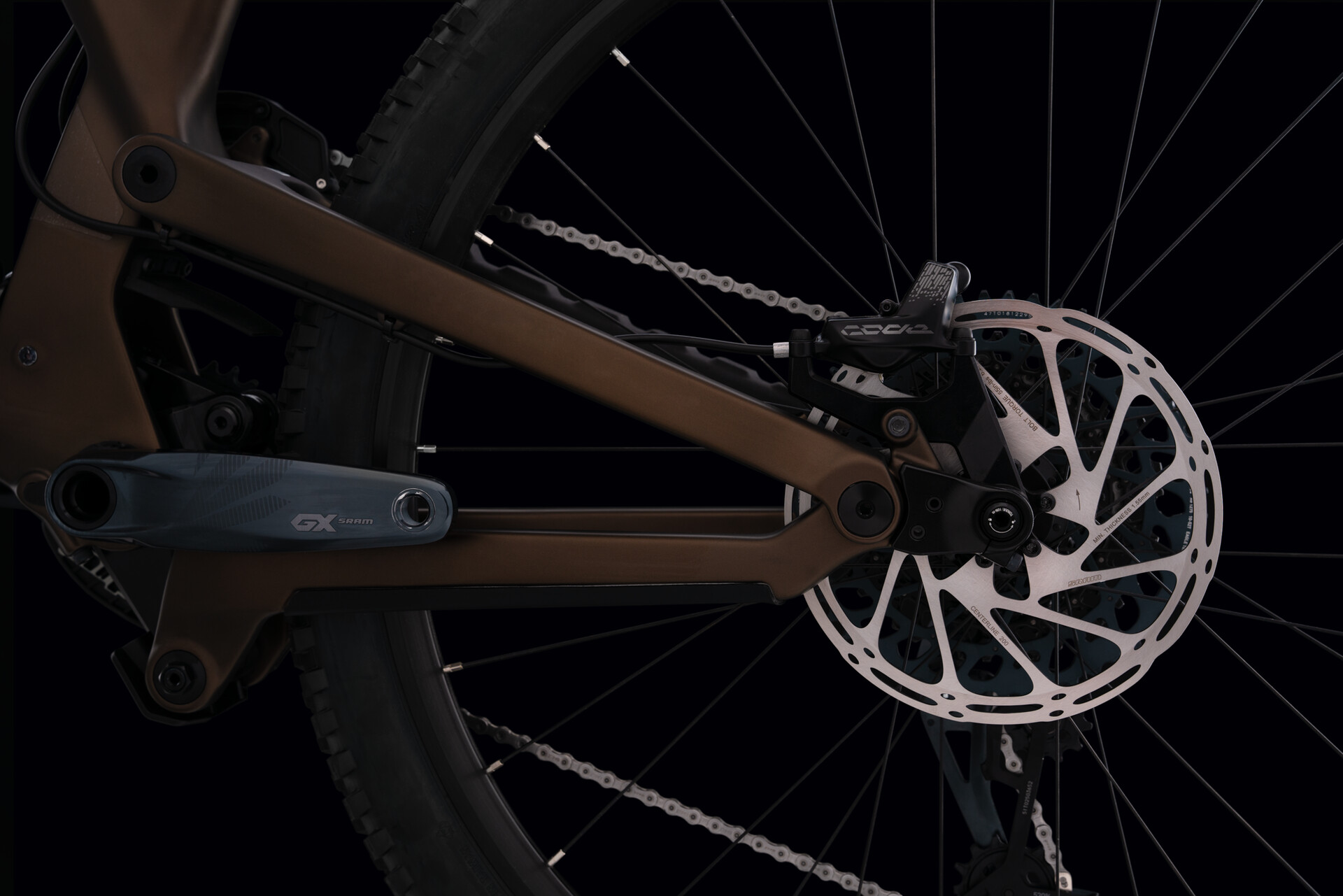

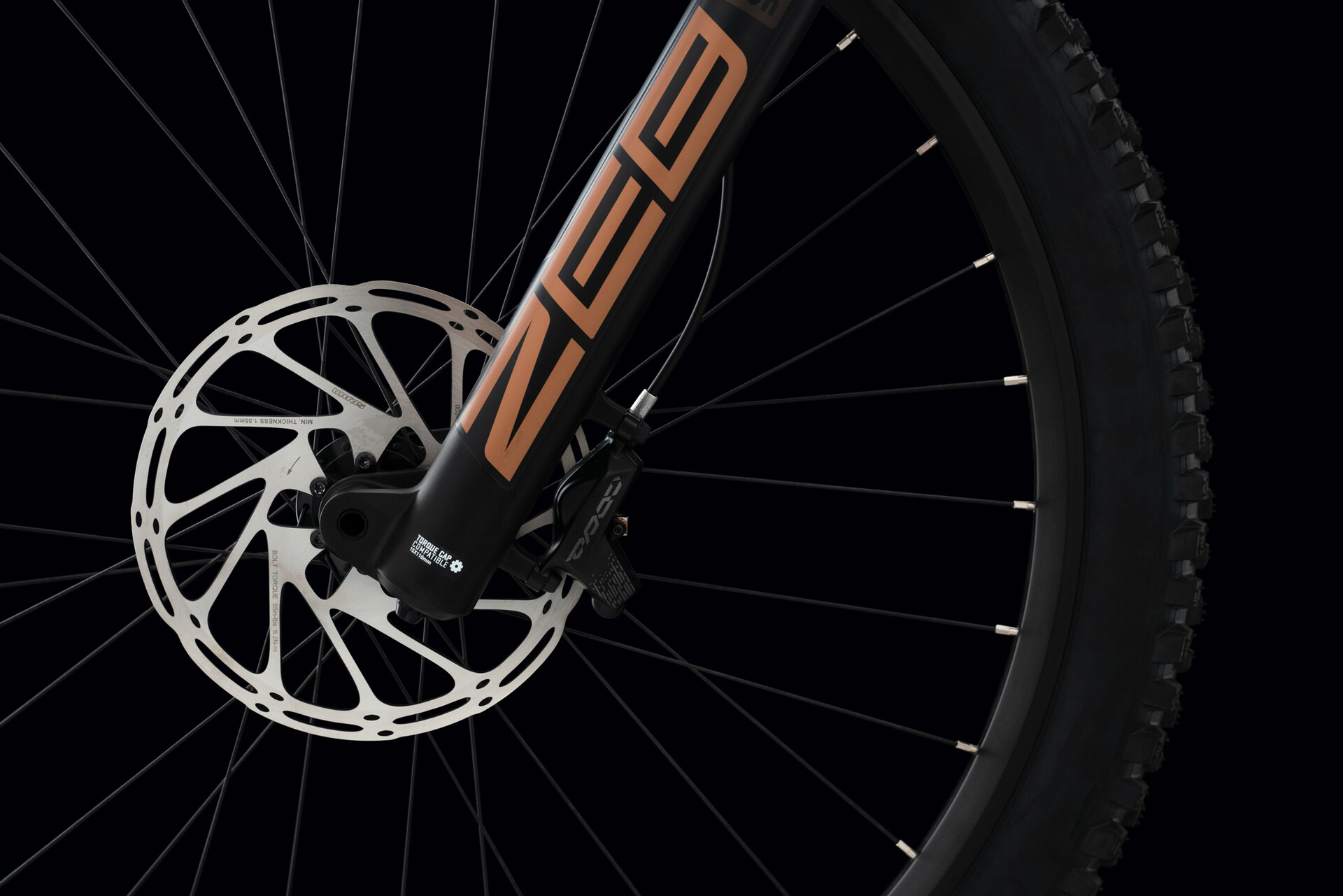

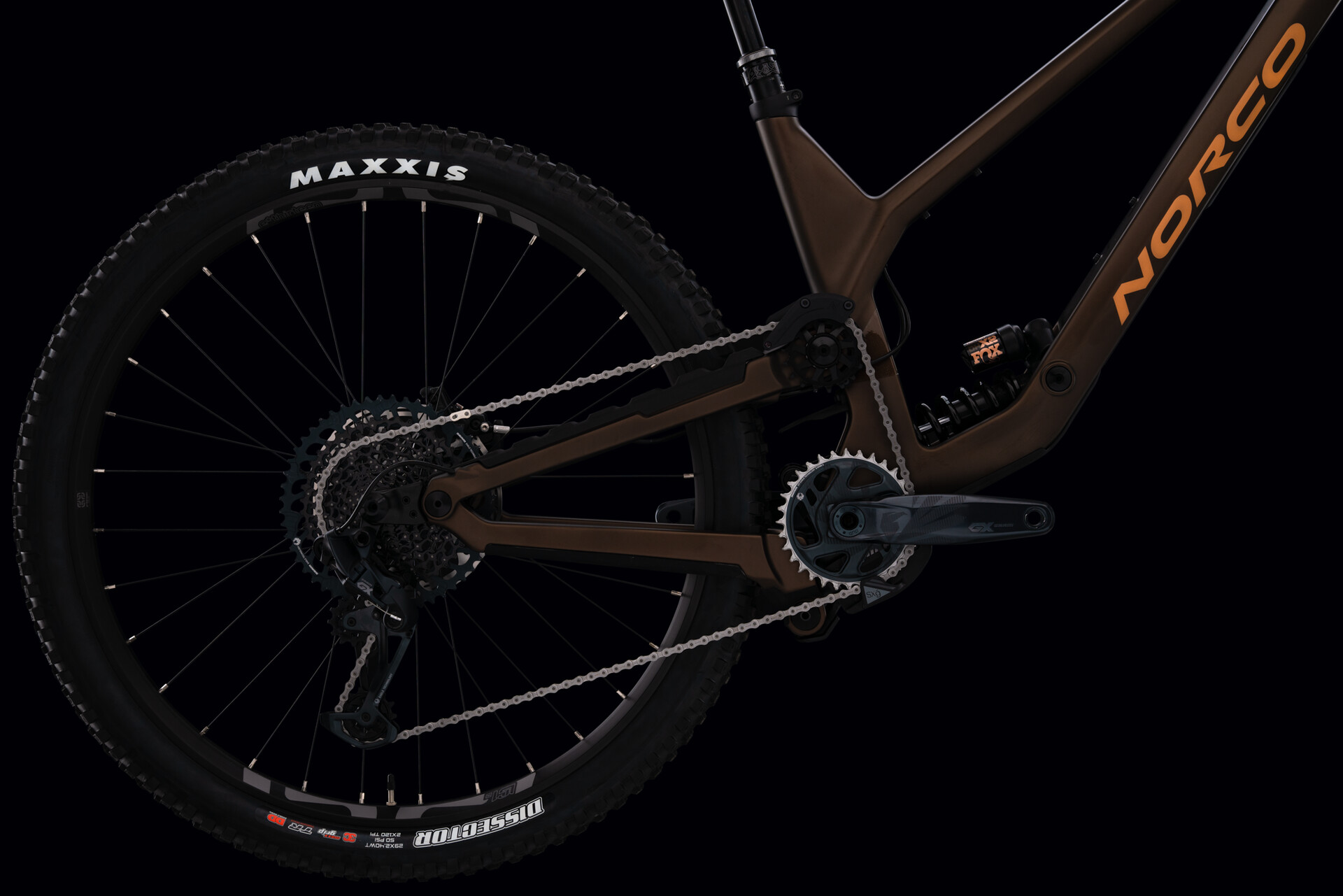

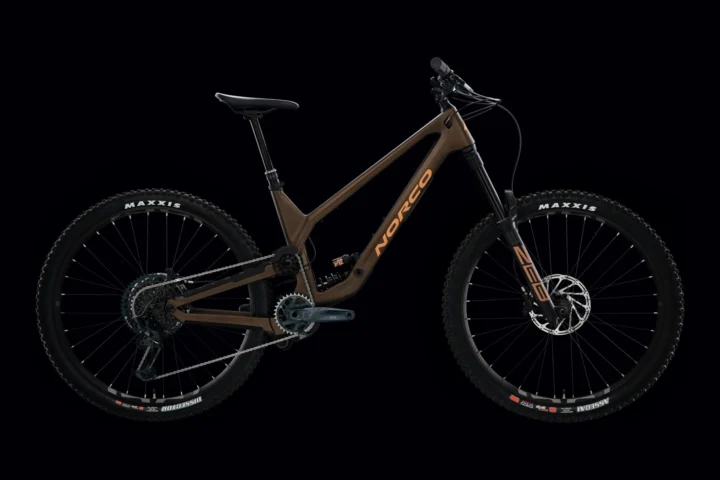

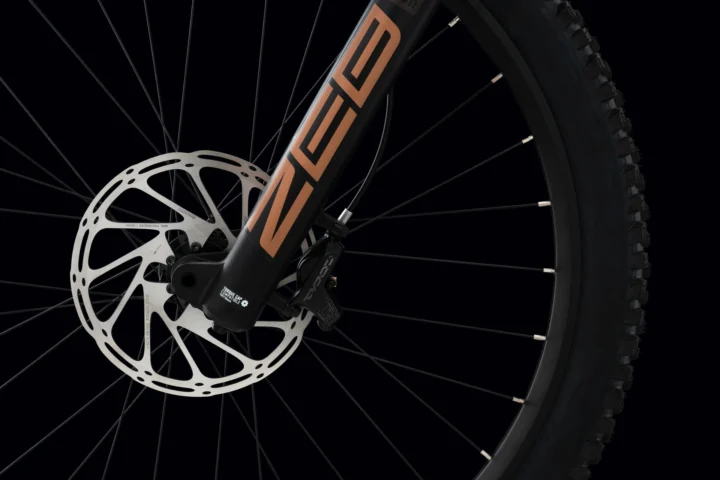

2023 Norco Range C2

Original specifications: 29" wheels · geometry for 4 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000058
Model year
2023
Category
Mountain
Original MSRP
$7,299.00
Sizes
S, M, L, XL
Colors
Brown/Copper
Geometry
4 manufacturer sizes
In this record
21 specifications · 8 archived images · original MSRP · geometry
Sponsored affiliate link
Original buildCarbon Fiber · 29"

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Brown/Copper

Frameset

Frame ConstructionFull Carbon, 170mm Travel, UDH, Ride Aligned™
Frame MaterialCarbon Fiber
ForkRockShox ZEB Ultimate, Charger 3 RC2, Butter Cups, 170mm Travel, 44mm Offset
Rear ShockFOX DHX2 Factory Coil, HSC/LSC, HSR/LSR, Custom Tune, 205x62.5mm Trunnion, 400lb/in (S), 450lb/in (M), 500lb/in (L), 550lb/in (XL)

Drivetrain

ShiftersSRAM GX Eagle
Rear DerailleurSRAM GX Eagle
CranksetSRAM GX Eagle, DUB, 32T, 170mm
Bottom BracketSRAM DUB PF92
CassetteSRAM Eagle XG 1275, 10-52T
ChainSRAM Eagle

Brakes

Brakes(F) SRAM Code R, 4 Piston, Metallic Pads / (R) SRAM Code R, 4 Piston, Metallic Pads; Rotors: (F) SRAM Centerline, 200mm / (R) SRAM Centerline, 200mm

Cockpit & Contact Points

HeadsetFSA #57E Internal Sealed Bearing
HandlebarDeity Ridgeline, 800mm, 25mm Rise
StemCNC Alloy, 40mm Length, 35mm Clamp
SaddleErgon SM10 Enduro
SeatpostTranzX YSP-105 Adjustable Dropper, 34.9mm, 150mm (S), 170mm (M). 200mm (L, XL)

Wheels & Tires

Hubs(F) Race Face Trace 15x110mm Boost, 6 Bolt / (R) Race Face Trace 12x148mm Boost, XD, 6 Bolt
RimsStan's Flow S2, 32H, 29"
Front TireMaxxis Assegai 2.5", DD, 3C MaxxGrip, TR
Rear TireMaxxis Minion DHRII 2.4", WT, EXO+, 3C MaxxGrip, TR
Wheel Size29"

Geometry

4 sizes · 17 measurements

Frame measurements by size.

All geometry measurements4 sizes · 17 measurements
MeasurementS · 29"M · 29"L · 29"XL · 29"
Seat tube370 mm395 mm410 mm455 mm
Effective top tube568 mm598 mm628 mm658 mm
Head tube100 mm115 mm130 mm145 mm
Head-tube angle63.8°63.5°63.3°63°
Seat-tube angle76.5°76.8°77°77.3°
Chainstay / rear center440 mm440 mm442.5 mm447.5 mm
Wheelbase1203 mm1243 mm1285 mm1329 mm
Bottom-bracket drop20 mm20 mm20 mm20 mm
Bottom-bracket height355 mm355 mm355 mm355 mm
Reach420 mm450 mm480 mm510 mm
Stack618 mm630 mm641 mm653 mm
Standover height662 mm663 mm665 mm695 mm
Fork offset / rake44 mm44 mm44 mm44 mm
Trail136 mm138 mm140 mm142 mm
Crank length170 mm170 mm170 mm170 mm
Stem length40 mm40 mm40 mm40 mm
Wheel size29"29"29"29"

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes32T · 10–52T
Lowest0.62:1 Highest3.20:1 Total range520%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear25.1 mph

Rear tire: 2.4″ + 29-inch.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
SRAM Eagle XG 1275

10-52T

Retailer offers
Other replacement options (1)
Bottom bracket · Original
SRAM DUB PF92 Before ordering: Use the spacer setup for your crank.
Retailer offers
Front tire · Original
Maxxis Assegai 2.5"

DD, 3C MaxxGrip, TR

Before ordering: Confirm the exact tire width before ordering.
More parts (8)Fewer parts
Rear tire · Original
Maxxis Minion DHRII 2.4"

WT, EXO+, 3C MaxxGrip, TR

Before ordering: Confirm the exact tire width before ordering.
Saddle · Original
Ergon SM10 Enduro
Crankset · Original
SRAM GX Eagle

DUB, 32T, 170mm

Rear derailleur · Original
SRAM GX Eagle Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
SRAM GX Eagle Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Seatpost · Original
TranzX YSP-105 Adjustable Dropper

34.9mm, 150mm (S), 170mm (M). 200mm (L, XL)

Headset · Original
FSA #57E Internal Sealed Bearing
Rims · Original
Stan's Flow S2

32H, 29"

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis Assegai 2.5", DD, 3C MaxxGrip, TR
Rear tire
Maxxis Minion DHRII 2.4", WT, EXO+, 3C MaxxGrip, TR
Seatpost diameter
34.9 mm
Bottom bracket / shell
SRAM DUB PF92
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Full Carbon, 170mm Travel, UDH, Ride Aligned™ · Fork: RockShox ZEB Ultimate, Charger 3 RC2, Butter Cups, 170mm Travel, 44mm Offset

Archived: Fork: RockShox ZEB Ultimate, Charger 3 RC2, Butter Cups, 170mm Travel, 44mm Offset · Rear shock: FOX DHX2 Factory Coil, HSC/LSC, HSR/LSR, Custom Tune, 205x62.5mm Trunnion, 400lb/in (S), 450lb/in (M), 500lb/in (L), 550lb/in (XL)

Archived: Shifters: SRAM GX Eagle · Rear derailleur: SRAM GX Eagle · Crankset: SRAM GX Eagle, DUB, 32T, 170mm · Bottom bracket: SRAM DUB PF92 · Cassette: SRAM Eagle XG 1275, 10-52T · Chain: SRAM Eagle

Archived: Brakes: (F) SRAM Code R, 4 Piston, Metallic Pads / (R) SRAM Code R, 4 Piston, Metallic Pads; Rotors: (F) SRAM Centerline, 200mm / (R) SRAM Centerline, 200mm

Archived: Wheel size: 29" · Rims: Stan's Flow S2, 32H, 29" · Hubs: (F) Race Face Trace 15x110mm Boost, 6 Bolt / (R) Race Face Trace 12x148mm Boost, XD, 6 Bolt · Front tire: Maxxis Assegai 2.5", DD, 3C MaxxGrip, TR · Rear tire: Maxxis Minion DHRII 2.4", WT, EXO+, 3C MaxxGrip, TR

Controls and contact points

Archived: Headset: FSA #57E Internal Sealed Bearing · Handlebar: Deity Ridgeline, 800mm, 25mm Rise · Stem: CNC Alloy, 40mm Length, 35mm Clamp · Seatpost: TranzX YSP-105 Adjustable Dropper, 34.9mm, 150mm (S), 170mm (M). 200mm (L, XL) · Saddle: Ergon SM10 Enduro
