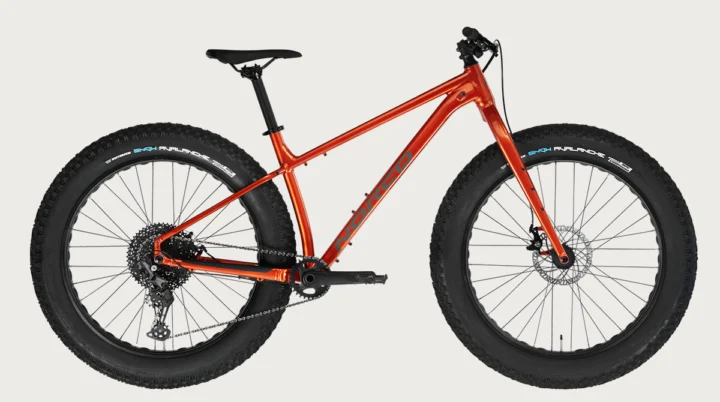

2022 Norco Bigfoot 3

Archived: 2022 Norco Bigfoot 3 · Mountain · Published sizes: S; M; L; XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Butted X6 Aluminum · Fork: 6061 Aluminum · Aluminum

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano Deore SL-M5100 · Rear derailleur: Shimano Deore RD-M5100 · Crankset: Samox Alloy, 30T, 170mm (S), 175mm (M, L, XL) · Bottom bracket: External, BSA Threaded · Cassette: Sunrace CMX8, 11/51T, 11 Speed · Chain: KMC X11

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) Tektro MD-280 Mechanical, Organic Pads / (R) Tektro MD-280 Mechanical, Organic Pads; Rotors: (F) Tektro, 180mm / (R) Tektro, 160mm; Levers: Tektro Alloy

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 27.5" · Rims: Alloy TR, 27.5", 32H · Hubs: (F) Sealed Bearing, 15x150mm, 6 Bolt / (R) Sealed Bearing, 12x197mm, HG, 6 Bolt · Front tire: Vee Snow Avalanche TLR, 4.5", Studdable · Rear tire: Vee Snow Avalanche TLR, 4.5", Studdable

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: Sealed Bearing, Tapered · Handlebar: Butted 6061 Alloy, 760mm, 15mm Rise · Stem: Alloy, 50mm Length, 31.8mm Clamp · Seatpost: Norco Alloy 31.6 · Saddle: Norco XC · Pedals: VP Nylon Flat

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
