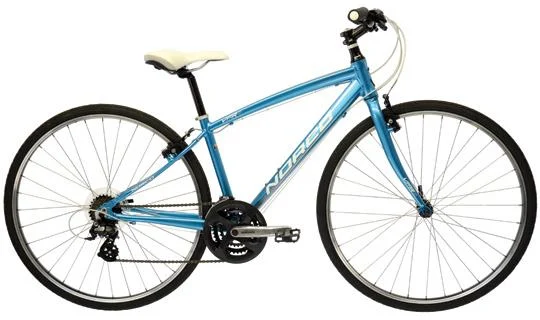

2012 Norco VFR 4 Forma

Original specifications.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #3062661
Model year
2012
Category
City & Commuter
Sizes
13, 15, 17, 19
Colors
Light Blue, Red
In this record
18 specifications · 2 archived images
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2012 archived details

Published colors
Light Blue, Red
Frame
Double Butted 7005 Alloy

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildDouble Butted 7005 Alloy

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

13151719

Published colors

Light BlueRed

Frameset

Frame MaterialDouble Butted 7005 Alloy
Forkchromoly

Drivetrain

ShiftersShimano Altus
Front DerailleurShimano Tourney
Rear DerailleurShimano Altus 7spd
CranksetShimano M131 48/38/28t
Bottom BracketCartridge
CassetteShimano HG20 7spd 12-32t
ChainKMC Z-50
PedalsResin Body

Brakes

BrakesTektro 837AL

Cockpit & Contact Points

HeadsetFSA No. 10
HandlebarSteel riser
StemAlloy
SaddleNorco City Comfort
SeatpostAlloy

Wheels & Tires

HubsFormula Formula
Front TireInnova City 700x35c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes48/38/28T · 12–32T · 7-speed
Lowest0.88:1 Highest4.00:1 Total range457%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z-50
Cassette · Original
Shimano HG20 7spd 12-32t
Front tire · Original
Innova City 700x35c Replacement search: 700cx35 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (6)Fewer parts
Crankset · Original
Shimano M131 48/38/28t
Front derailleur · Original
Shimano Tourney
Rear derailleur · Original
Shimano Altus 7spd
Shifters · Original
Shimano Altus
Headset · Original
FSA No. 10
Hubs · Original
Formula Formula

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Innova City 700x35c
Drivetrain
7-speed
Bottom bracket / shell
Cartridge
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Double Butted 7005 Alloy · Fork: chromoly

Archived: Shifters: Shimano Altus · Front derailleur: Shimano Tourney · Rear derailleur: Shimano Altus 7spd · Crankset: Shimano M131 48/38/28t · Bottom bracket: Cartridge · Cassette: Shimano HG20 7spd 12-32t · Chain: KMC Z-50

Archived: Brakes: Tektro 837AL

Archived: Hubs: Formula Formula · Front tire: Innova City 700x35c

Controls and contact points

Archived: Headset: FSA No. 10 · Handlebar: Steel riser · Stem: Alloy · Seatpost: Alloy · Saddle: Norco City Comfort · Pedals: Resin Body
