Uses front tire 700C×35; rear size isn’t listed.
Velopedia Bicycle Archive

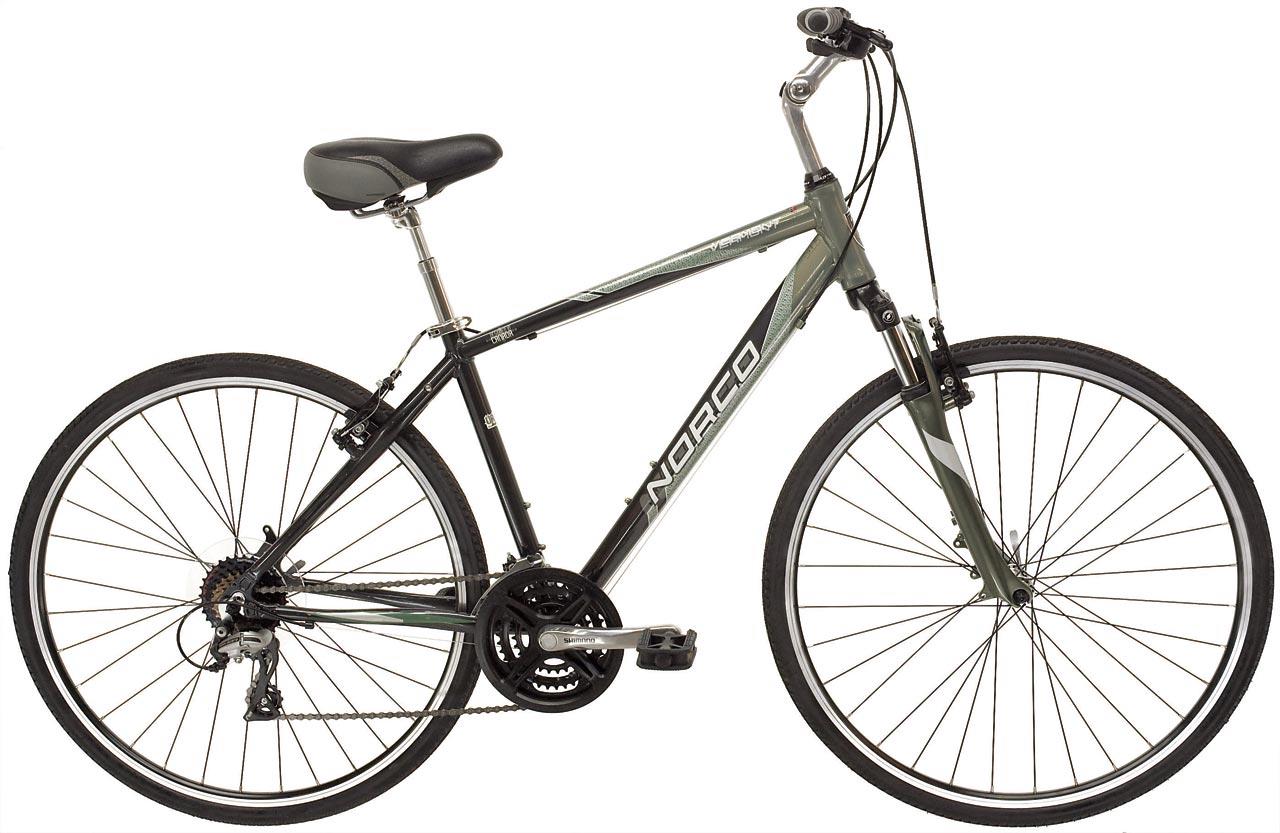

2009 Norco Vermont
Original specifications: Shimano Acera · 8-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #16873- Model year
- 2009
- Category
- Hybrid
- Sizes
- 14.5", 16", 18", 20", 22"
- Colors
- Green/Grey, Silver/ Red
- In this record
- 26 specifications · archived image
Model history 11 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Green/Grey, Silver/ Red
- Frame
- 7005 aluminum
- Original equipment
- Road Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum · Road Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum |
| Fork | Suntour NEX-4110-V2 |
| Fork Material | Single |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Shimano Acera |
| Front Derailleur | Shimano FD-C051 |
| Rear Derailleur | Shimano Acera |
| Crankset | Shimano FC-M151, 28/38/48 teeth |
| Bottom Bracket | CH-52 cartridge |
| Cassette | Shimano HG30 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z72, 1/2 x 3/32" |
| Pedals | Resin |
Brakes
| Brakes | Tektro 837AL V-brake brakes, Shimano Acera levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Semi integrated |
|---|---|
| Handlebar | Kalloy alloy riser |
| Handlebar Extensions | Not included |
| Stem | Kalloy AL-822 Adjustable |
| Saddle | Velo Comfort |
| Seatpost | Kalloy suspension |
Wheels & Tires
| Hubs | Shimano RM60 |
|---|---|
| Rims | DBM-1 |
| Spoke Nipples | Brass |
| Front Tire | 700 x 35c Innova |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
1/2 x 3/32"
More parts (7)Fewer parts
Shimano Acera levers
28/38/48 teeth
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 35c Innova
- Drivetrain
- 8-speed
- Bottom bracket / shell
- CH-52 cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Suntour NEX-4110-V2 · Single
Suspension
Evaluate the suspension →Archived: Fork: Suntour NEX-4110-V2
Drivetrain
Check drivetrain wear →Archived: Group: Road Mix · Shifters: Shimano Acera · Front derailleur: Shimano FD-C051 · Rear derailleur: Shimano Acera · Crankset: Shimano FC-M151, 28/38/48 teeth · Bottom bracket: CH-52 cartridge · Cassette: Shimano HG30 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC Z72, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Tektro 837AL V-brake brakes, Shimano Acera levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: DBM-1 · Hubs: Shimano RM60 · Front tire: 700 x 35c Innova
Controls and contact points
Archived: Headset: 1 1/8" threadless Semi integrated · Handlebar: Kalloy alloy riser · Stem: Kalloy AL-822 Adjustable · Seatpost: Kalloy suspension · Saddle: Velo Comfort · Pedals: Resin
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
